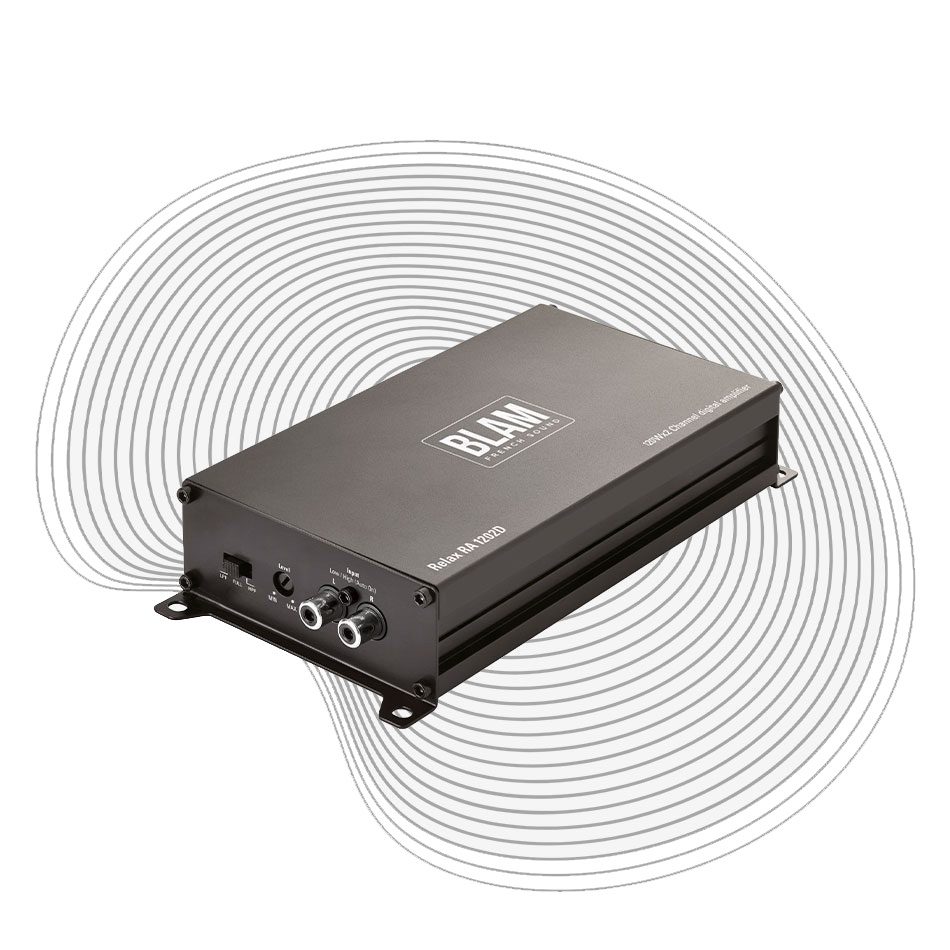

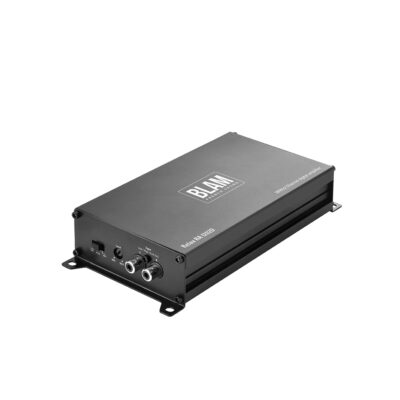

RA 1202 D amplifier

ULTRA COMPACT AMPLIFIER 2 CHANNELS X 120W CLASS D

Technical details

To design this powerful, robust and particularly compact product, we have taken advantage of the latest technologies developed for Class D audio amplifiers.

This amplifier is built with surface mount components to provide high audio performance while keeping the footprint small. Thanks to its very high efficiency, this amplifier will provide you with the necessary power to reproduce all the dynamics of your recordings without ever failing.

Composition

– Low level RCA input: 0.5 V
– High level RCA input: 15 V
– RMS power (4 Ω): 2 x 80 W
– RMS power (2 Ω): 2 x 120 W
– Bridge RMS power (4 Ω): 1 x 240 W
– Low pass filter: 120 Hz (fixed) (12 dB/octave)
– High pass filter: 100 Hz (fixed) (12 dB/octave)
– Frequency response: 20 Hz – 22 kHz
– Bass boost: 0 – 12 dB at 45 Hz
– Signal to noise ratio > 90 dB
– Protections: short circuit / low impedance / reverse polarity / thermal protection
– Dimensions (L x W x H): 160 x 91,4 x 36 mm – 6,3” x 3,6” x 1,4”

Accessories included:
Fixing screws
Instructions for use
Wired remote control
