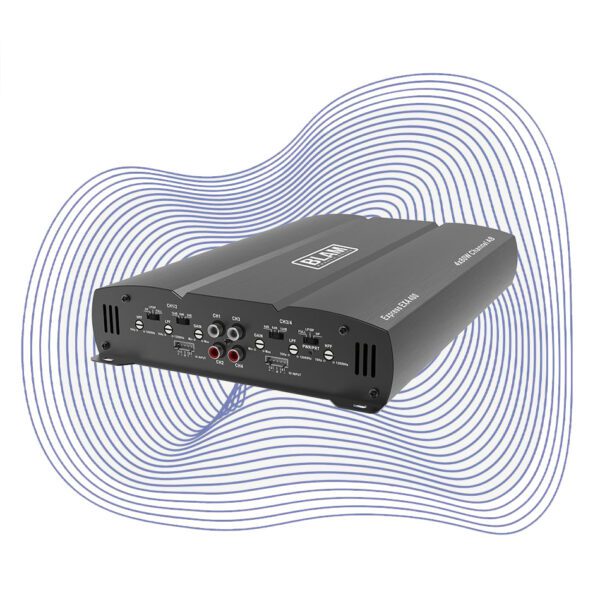

EX 400 amplifier

This 4-channel Class AB amplifier is designed to deliver optimum power while remaining compatible with original car radios. It features low-level RCA inputs and high-level inputs for maximum flexibility. With power ratings of 4 x 80 Watts RMS into 4 Ω, 4 x 100 Watts RMS into 2 Ω, and a bridge configuration offering 2 x 240 Watts RMS into 4 Ω, it delivers impressive audio performance. The amplifier incorporates low-pass (50 Hz – 250 Hz) and high-pass (50 Hz – 3 kHz) filters to adjust frequencies to suit your needs. It boasts a signal-to-noise ratio in excess of 90 dB, and includes protection against short-circuits, low impedance and overheating. Its dimensions are 315.5 x 53 x 216 mm (12.4“ x 2.1” x 8.5″). Accessories include cables for high-level inputs, mounting brackets and screws, and instructions for easy installation.

4 CHANNEL CLASS AB AMPLIFIER



Technical details

Compatible with OEM head units



– Low-level RCA inputs
– High-level inputs
– Power (4 Ω): 4 x 80 Watts RMS
– Power (2 Ω): 4 x 100 Watts RMS
– Bridge power (4 Ω): 2 x 240 Watts RMS
– Low-pass filter: 50 Hz – 250 Hz
– High-pass filter: 50 Hz – 3 kHz
– Signal-to-noise ratio : > 90 dB
– Protections: short-circuit / low impedance / thermal protection
– Dimensions (L x W x H): 315.5 × 53 × 216 mm – 12.4” × 2.1”× 8.5”



Supplied accessories :
High-level input cables
Mounting brackets and screws
Operating instructions



Looking for Blam audio products?
Find our resellers and distributors around the world.

4 CHANNEL CLASS AB AMPLIFIER



Technical details

Compatible with OEM head units



– Low-level RCA inputs
– High-level inputs
– Power (4 Ω): 4 x 80 Watts RMS
– Power (2 Ω): 4 x 100 Watts RMS
– Bridge power (4 Ω): 2 x 240 Watts RMS
– Low-pass filter: 50 Hz – 250 Hz
– High-pass filter: 50 Hz – 3 kHz
– Signal-to-noise ratio : > 90 dB
– Protections: short-circuit / low impedance / thermal protection
– Dimensions (L x W x H): 315.5 × 53 × 216 mm – 12.4” × 2.1”× 8.5”



Supplied accessories :
High-level input cables
Mounting brackets and screws
Operating instructions
