CAR AUDIO KIT MB 165.3

CAR AUDIO SYSTEM WITH THREE SEPARATE CHANNELS

THIS KIT INCLUDES

x2 Woofer MB6D

• 165 mm (6.5″) high-sensitivity woofer – Maximum power 250 W / Nominal power 125 W – Frequency response 55 Hz – 5 kHz – Impedance 2 Ω

Moulded aluminium saladier – ultra-rigid 3K carbon fibre membrane – NBR perimeter suspension – double spider with integrated braids – 38 mm coil on fibreglass support – neodymium magnet – machined aluminium ogive – gold-plated terminal block – Products paired at +/- 1 dB

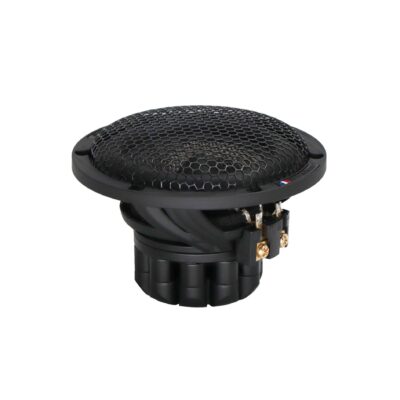

x2 Medium MB3

• Full-range driver 3” (80 mm) – Maximum power: 150 W / Rated power: 50 W – Frequency response 120 Hz – 25 kHz – Impedance 3 Ω

Moulded aluminium saladier – ultra-rigid 3K carbon fibre membrane – NBR perimeter suspension – double spider with integrated braids – 38 mm coil on fibreglass support – neodymium magnet – machined aluminium ogive – gold-plated terminal block – Products paired at +/- 1 dB

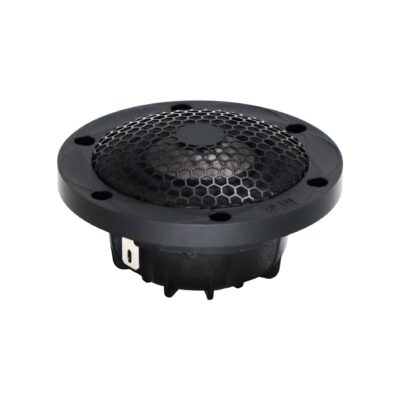

x2 Tweeter T28MG
• 28 mm (1″) Magnesium dome
• Maximum power 80 W – Nominal power 40 W
• Frequency response 70 KHz – 30 KHz
• Impedance 6 Ω

28 mm (1″) magnesium dome – neodymium magnet – gold-plated terminal block – Paired products at +/- 1 dB

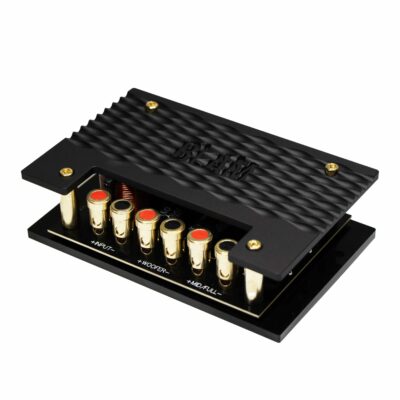

x2 Filtre BFT01 et x2 Filtre WM

WM – Audiophile component
High-pass crossover 6/12 dB per octave
Frequency-adjustable high-pass from 200 to 600 Hz
Lowpass crossover 12dB/octave

High-quality design for precise sequence separation.

Products from this kit can be purchased à la carte.

MB 6D

1 file(s) 1.53 MB

Download

MB3

1 file(s) 1.07 MB

Download

T28 MG

1 file(s) 2.08 MB

Download
