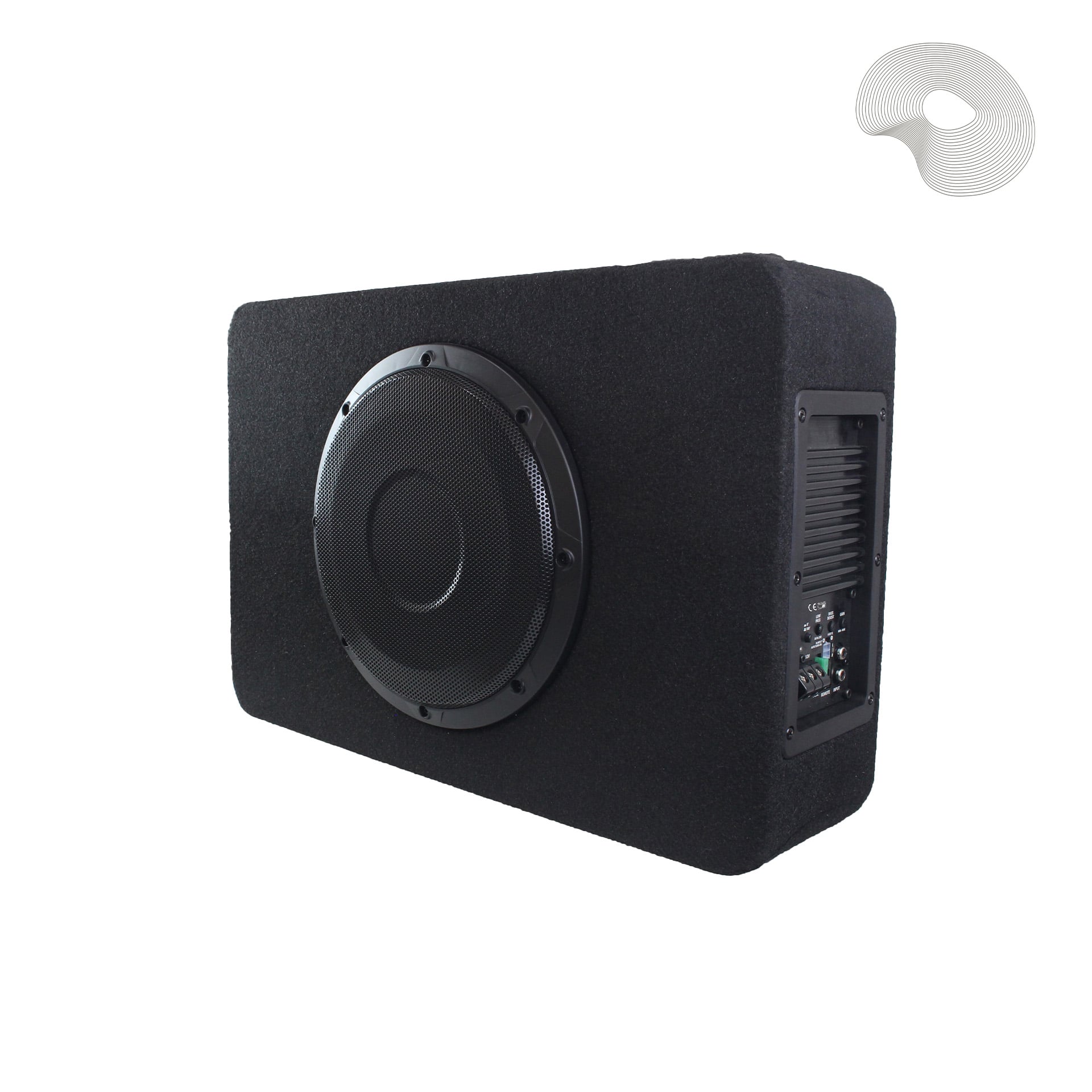

The CR25S is a powerful, compact active subwoofer with a 25cm subwoofer, designed to significantly improve the bass performance of your audio system. Delivering a maximum power of 600 W (300 W RMS), with high-level inputs, this subwoofer is compatible with most original car radios. It’s ideal for those looking to enhance their musical experience with punchy bass, while conserving space in their vehicle. The included remote control makes it easy to adjust the level for each track. It comes with 4 feet to place it in the down-firing position.

Contact us

CR25S housing

FEATURES :

Amplifier: Max power: 600 W / Nominal power: 300 W (class D)

Frequency response: 35 Hz – 300 Hz

Bass boost: Adjustable from 0 dB to +12 dB

Filtre passe-bas (LPF) : Variable de 30 Hz à 200 Hz, 12 dB/Octave Butterworth

Input: Low level (RCA): 150 mV – 6V – High level: 1.8V – 20V – auto turn-on

Phase adjustment: 0° / 180°

Visual indicators: Power (green) / Protection (red)

Fuse: 30 A

Subwoofer: Speaker diameter: 25 cm (10”)

Magnet Size: 60 Oz

Cone: Polypropylene with mica injection and rubber suspension

Coil: 50mm – 2’’ ASV, 3 Ohms

Sensitivity (SPL): 87 dB M/W

Voltage: Minimum 12V required

Dimensions (W x H x D): 530mm x 356mm x 140mm

Remote control is included





TECHNICAL DATA SHEET :

Icon

Caisson CR25S

1 file(s) 3.56 MB
Download

Looking for Blam audio products?
Find our resellers and distributors around the world.

Installers
Distributors

CR25S housing

FEATURES :

Amplifier: Max power: 600 W / Nominal power: 300 W (class D)

Frequency response: 35 Hz – 300 Hz

Bass boost: Adjustable from 0 dB to +12 dB

Filtre passe-bas (LPF) : Variable de 30 Hz à 200 Hz, 12 dB/Octave Butterworth

Input: Low level (RCA): 150 mV – 6V – High level: 1.8V – 20V – auto turn-on

Phase adjustment: 0° / 180°

Visual indicators: Power (green) / Protection (red)

Fuse: 30 A

Subwoofer: Speaker diameter: 25 cm (10”)

Magnet Size: 60 Oz

Cone: Polypropylene with mica injection and rubber suspension

Coil: 50mm – 2’’ ASV, 3 Ohms

Sensitivity (SPL): 87 dB M/W

Voltage: Minimum 12V required

Dimensions (W x H x D): 530mm x 356mm x 140mm

Remote control is included





TECHNICAL DATA SHEET :

Icon

Caisson CR25S

1 file(s) 3.56 MB
Download
TYPE

With box
GAMME

Relax
TAILLE

250mm (10")
PRODUIT

Subwoofer
