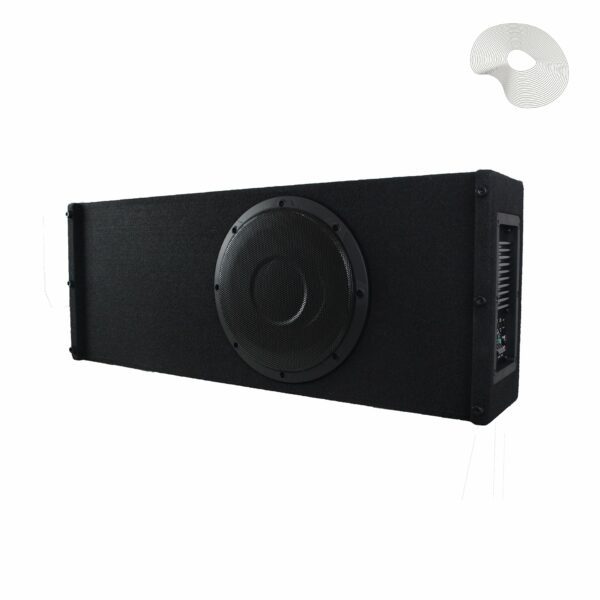

CR25V housing
FEATURES :
Amplifier: Maximum power: 600 W / Rated power: 300 W – Class D Frequency response: 30 Hz – 300 Hz Bass boost: Adjustable from 0 dB to +12 dB Low-pass filter (LPF): Variable from 30 Hz to 200 Hz, 12 dB/Octave Butterworth Input: Low level (RCA): 150 mV – 6V – High level: 1.8V – 20V – auto-on Phase adjustment: 0° / 180° Visual indicators: Power (green) / Protection (red) Fuse: 30 A Subwoofer: Driver diameter: 25 cm (10”) Magnet size: 60 Oz Cone material: Polypropylene with mica injection and rubber surround Voice coil: 2” ASV, 3 Ohms Sensitivity (SPL): 87 dB M/W Supply voltage: Minimum 12V required Dimensions (W x H x D): 800 mm x 300 mm x 150 mm Remote control included
TECHNICAL DATA SHEET :
Looking for Blam audio products?
Find our resellers and distributors
around the world.
CR25V housing
FEATURES :
Amplifier: Maximum power: 600 W / Rated power: 300 W – Class D Frequency response: 30 Hz – 300 Hz Bass boost: Adjustable from 0 dB to +12 dB Low-pass filter (LPF): Variable from 30 Hz to 200 Hz, 12 dB/Octave Butterworth Input: Low level (RCA): 150 mV – 6V – High level: 1.8V – 20V – auto-on Phase adjustment: 0° / 180° Visual indicators: Power (green) / Protection (red) Fuse: 30 A Subwoofer: Driver diameter: 25 cm (10”) Magnet size: 60 Oz Cone material: Polypropylene with mica injection and rubber surround Voice coil: 2” ASV, 3 Ohms Sensitivity (SPL): 87 dB M/W Supply voltage: Minimum 12V required Dimensions (W x H x D): 800 mm x 300 mm x 150 mm Remote control included
TECHNICAL DATA SHEET :
| TYPE | With box |
|---|---|
| GAMME | Relax |
| PRODUIT | Subwoofer |
| TAILLE | 250mm (10") |
