P601 amplifier

P601 amplifier

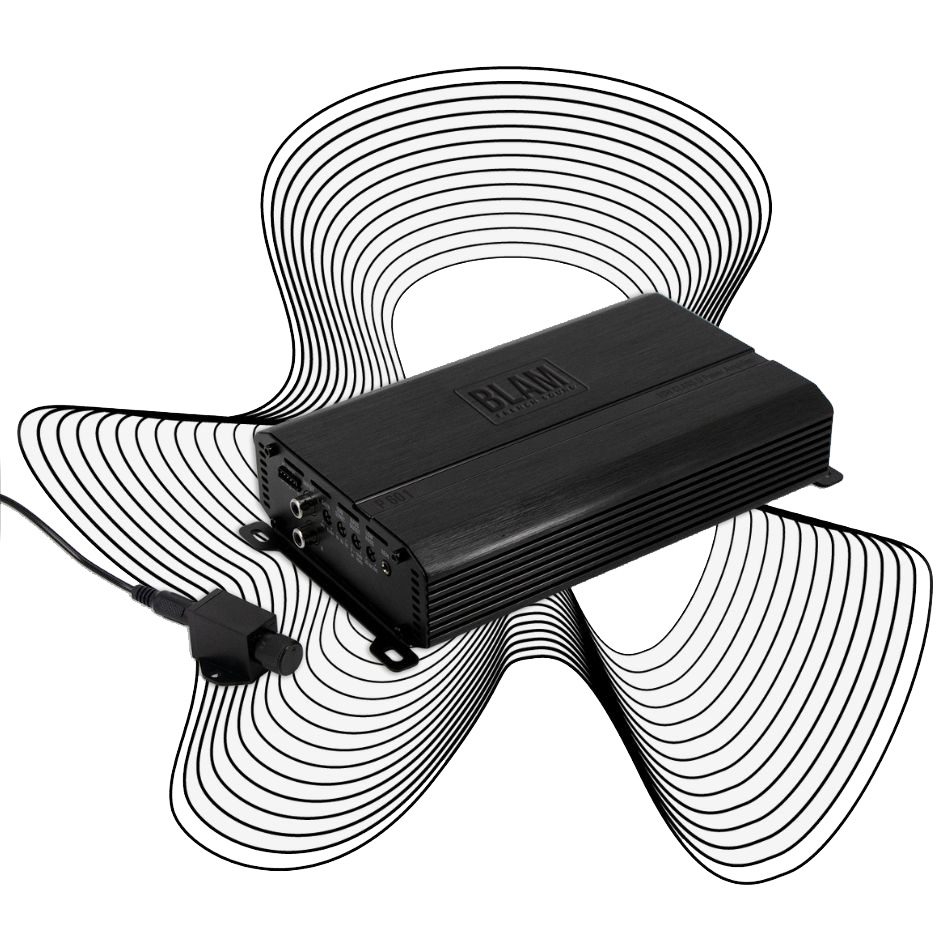

This monoblock Class D amplifier is specially designed for subwoofers and is compatible with original car radios. It features automatic start-up, low-level RCA inputs (0.25-6 V) and high-level inputs (4-8 V). It delivers 250 Watts RMS into 4 Ω, 450 Watts RMS into 2 Ω, and up to 600 Watts RMS in bridge configuration into 1 Ω, guaranteeing impressive bass performance. The amplifier features a subsonic filter (10-50 Hz), a low-pass filter (35 Hz – 250 Hz) and a Bass Boost adjustable from 0 to 12 dB at 45 Hz to accentuate low frequencies. It boasts a signal-to-noise ratio of 90 dB and a total harmonic distortion (THD) of less than 0.15%, ensuring clean sound quality. It features protection against short-circuits, low impedance, overheating and reverse polarity. The amplifier dimensions are 214 x 198 x 99 mm (8.4“ x 7.8” x 3.9″). Supplied accessories include a connector for high-level inputs, a wired remote control for easy control, and installation instructions.

Contact us

CLASS D SINGLE-CHANNEL AMPLIFIER FOR SUBWOOFER



Technical specification

Compatible with OEM head units

– Automatic start-up
– Low-level RCA inputs: 0.25-6 V
– High-level inputs: 4-8 V
– Power (4 Ω): 250 Watts RMS
– Power (2 Ω): 450 Watts RMS
– Bridge power (1 Ω): 600 Watts RMS
– Subsonic filter 10-50 Hz
– Low-pass filter: 35 Hz – 250 Hz
– Adjustable bass boost 0-12 dB (45 Hz)
– Signal-to-noise ratio: 90 dB
• THD < 0.15%
– Protections: short-circuit / low impedance / thermal protection / reverse polarity
– Dimensions (L x W x H): 214 × 198 × 99 mm – 8.4” × 7.8”× 3.9”



Supplied accessories :
High-level input connector
Wired remote control included
User manual



Icon

P601 usermanual

1 file(s) 711.60 KB
Download
