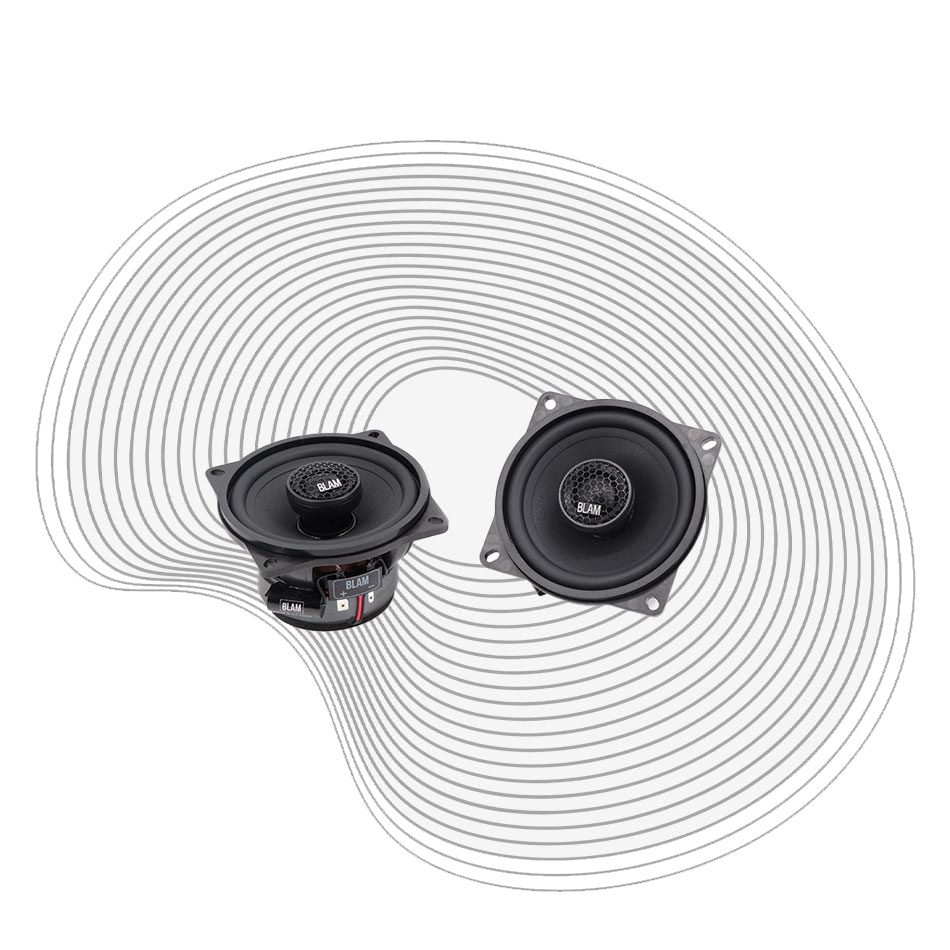

2 WAY 100 MM HIGH EFFICIENCY COAXIAL KIT “FRENCH SOUND
Technical specification
This kit includes 2 x 100 mm (4″) woofers with coaxial tweeter and integrated 6 dB/octave crossover.
Max power 100 W – Nominal power 50 W
Frequency response 80 Hz – 30 kHz
Sensitivity 90.3 dB – Impedance 2 Ω
Composition
Woofer:
Original BLAM glass fiber reinforced composite basket
High quality treated cellulose pulp membrane
Butyl peripheral suspension
Long life spider “Conex”
25 mm voice coil on Kapton support
70 mm x 15 mm ferrite motor
Thick magnetic circuit (4 mm)
High quality 20 mm soft dome tweeter
Integrated high-pass filter 6 dB/octave (Polypropylene capacitor)
Accessoires fournis
Vis de fixation
Notice d’utilisation
Looking for Blam audio products?
Find our resellers and distributors
around the world.
2 WAY 100 MM HIGH EFFICIENCY COAXIAL KIT “FRENCH SOUND
Technical specification
This kit includes 2 x 100 mm (4″) woofers with coaxial tweeter and integrated 6 dB/octave crossover.
Max power 100 W – Nominal power 50 W
Frequency response 80 Hz – 30 kHz
Sensitivity 90.3 dB – Impedance 2 Ω
Composition
Woofer:
Original BLAM glass fiber reinforced composite basket
High quality treated cellulose pulp membrane
Butyl peripheral suspension
Long life spider “Conex”
25 mm voice coil on Kapton support
70 mm x 15 mm ferrite motor
Thick magnetic circuit (4 mm)
High quality 20 mm soft dome tweeter
Integrated high-pass filter 6 dB/octave (Polypropylene capacitor)
Accessoires fournis
Vis de fixation
Notice d’utilisation
| GAMME | Relax |
|---|---|
| TYPE | Coaxial |
| TAILLE | 100mm (4") |
