HIGH PERFORMANCE 2 WAY 100 MM “FRENCH SOUND” SYSTEM
Technical specification

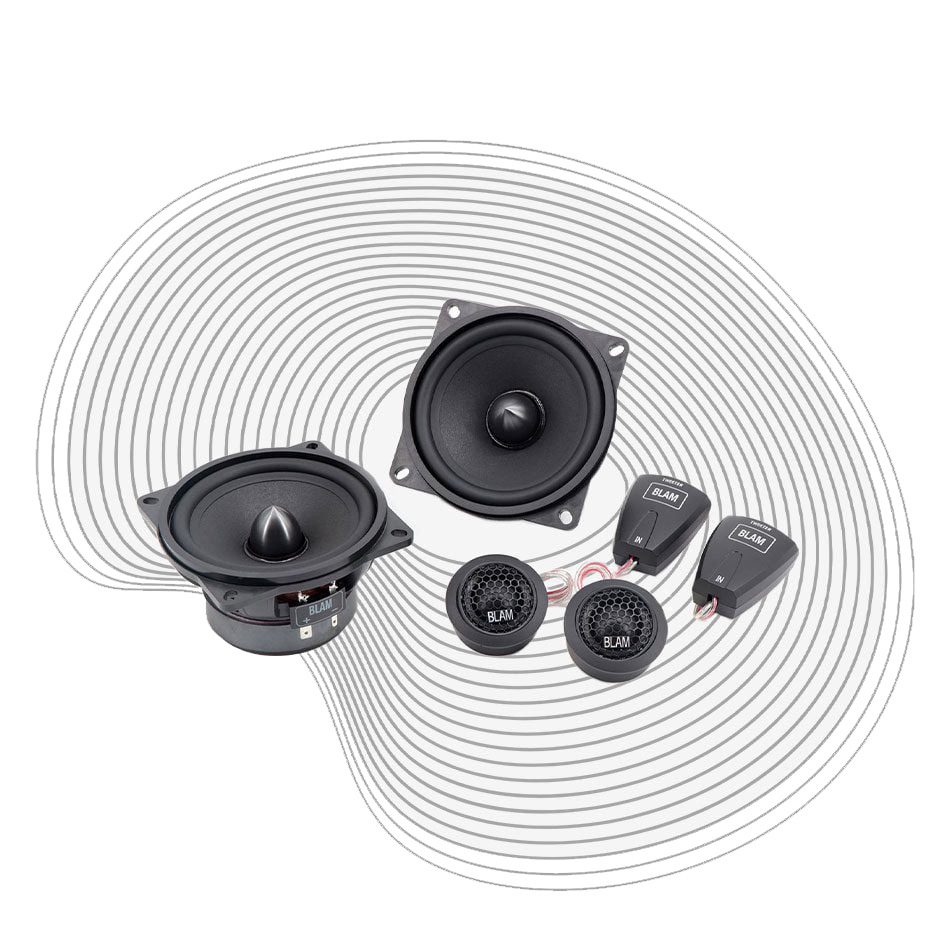

This kit includes 2 x 100 mm (4″) woofers, 2 x 20 mm soft dome tweeters and 2 x 6 dB/octave high-pass crossovers.
Max power 100 W – Nominal power 50 W
Frequency response 80 Hz – 30 kHz
Sensitivity 90.3 dB – Impedance 2 Ω
Composition
Woofer:
Original BLAM composite basket reinforced with fiberglass
High quality treated cellulose pulp membrane
Butyl rubber surround
Long life “Conex” damper
25 mm (1”) voice coil on kapton former
70 mm x 15 mm ferrite magnet
Thick magnetic circuit (4 mm)
High quality 20 mm (3/4”) soft dome tweeter
6 dB/octave high pass crossover
Tweeter level adjustable to 0 dB or attenuated to -3 dB
Supplied accessories
Mounting screws
Mounting accessories for tweeters
User manual
Looking for Blam audio products? Find our resellers and distributors around the world.
HIGH PERFORMANCE 2 WAY 100 MM “FRENCH SOUND” SYSTEM
Technical specification

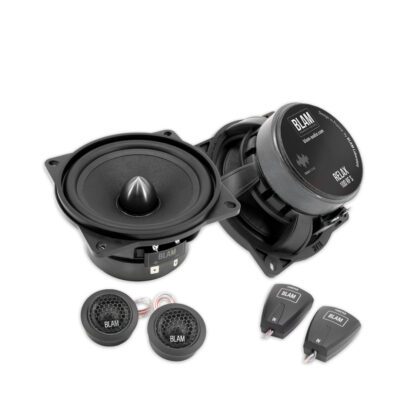

This kit includes 2 x 100 mm (4″) woofers, 2 x 20 mm soft dome tweeters and 2 x 6 dB/octave high-pass crossovers.
Max power 100 W – Nominal power 50 W
Frequency response 80 Hz – 30 kHz
Sensitivity 90.3 dB – Impedance 2 Ω
Composition
Woofer:
Original BLAM composite basket reinforced with fiberglass
High quality treated cellulose pulp membrane
Butyl rubber surround
Long life “Conex” damper
25 mm (1”) voice coil on kapton former
70 mm x 15 mm ferrite magnet
Thick magnetic circuit (4 mm)
High quality 20 mm (3/4”) soft dome tweeter
6 dB/octave high pass crossover
Tweeter level adjustable to 0 dB or attenuated to -3 dB
Supplied accessories
Mounting screws
Mounting accessories for tweeters
User manual
| GAMME | Relax |
|---|---|
| TYPE | 2 separate lanes |
| TAILLE | 100mm |
