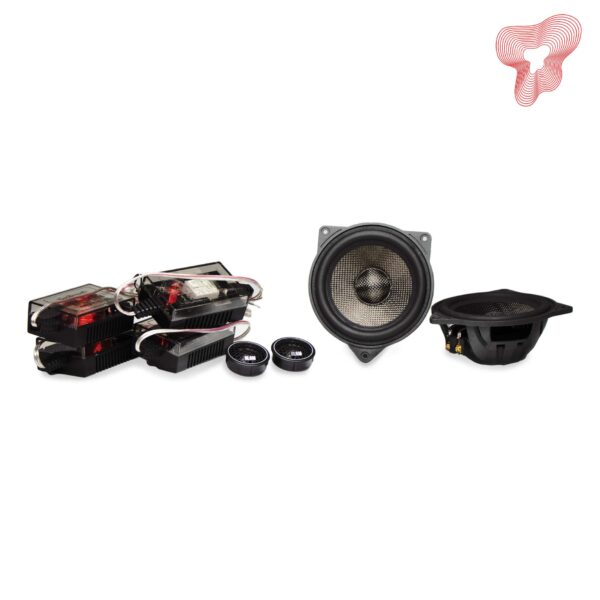

100 S24 TWO-WAY CAR AUDIO SYSTEM KIT
THIS KIT INCLUDES

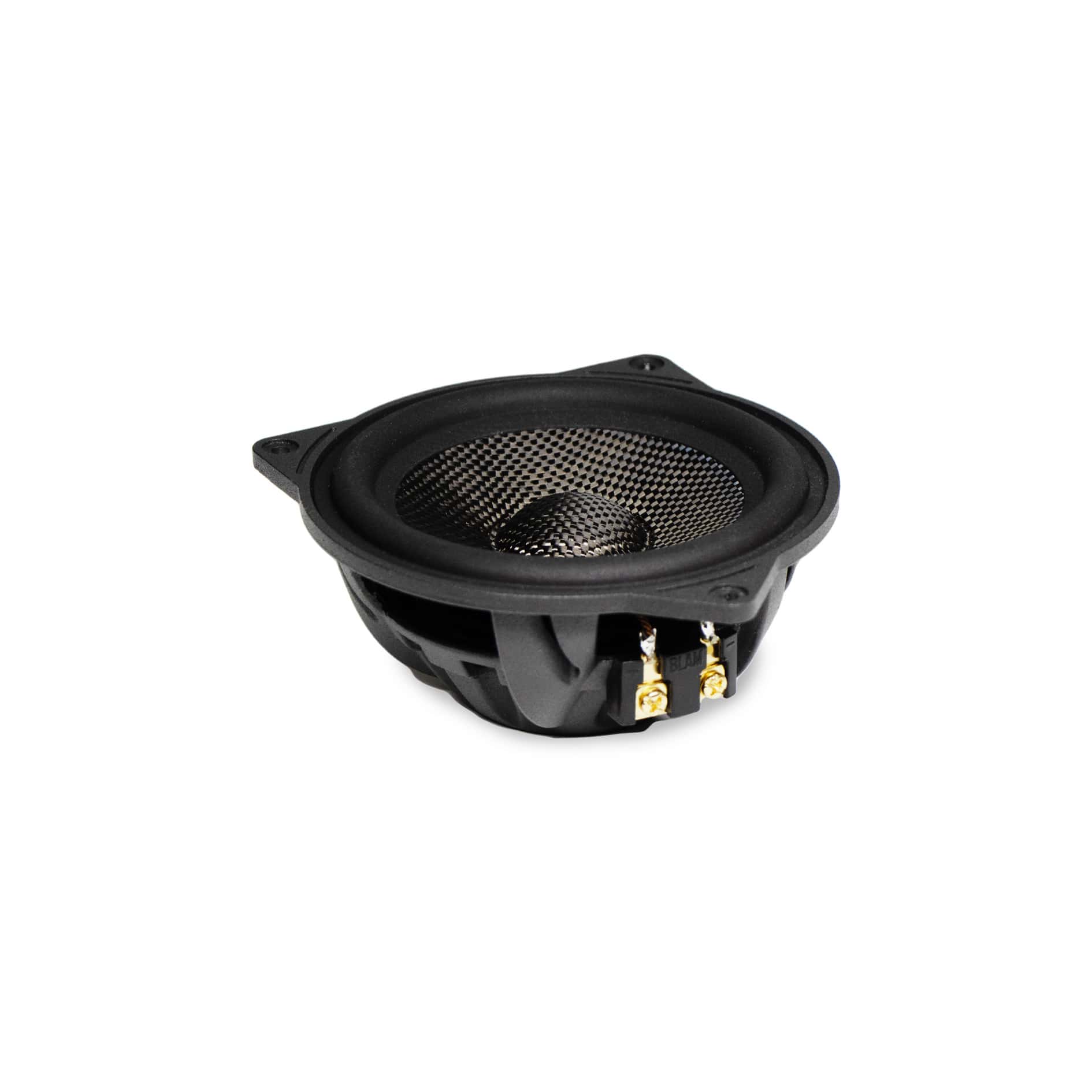

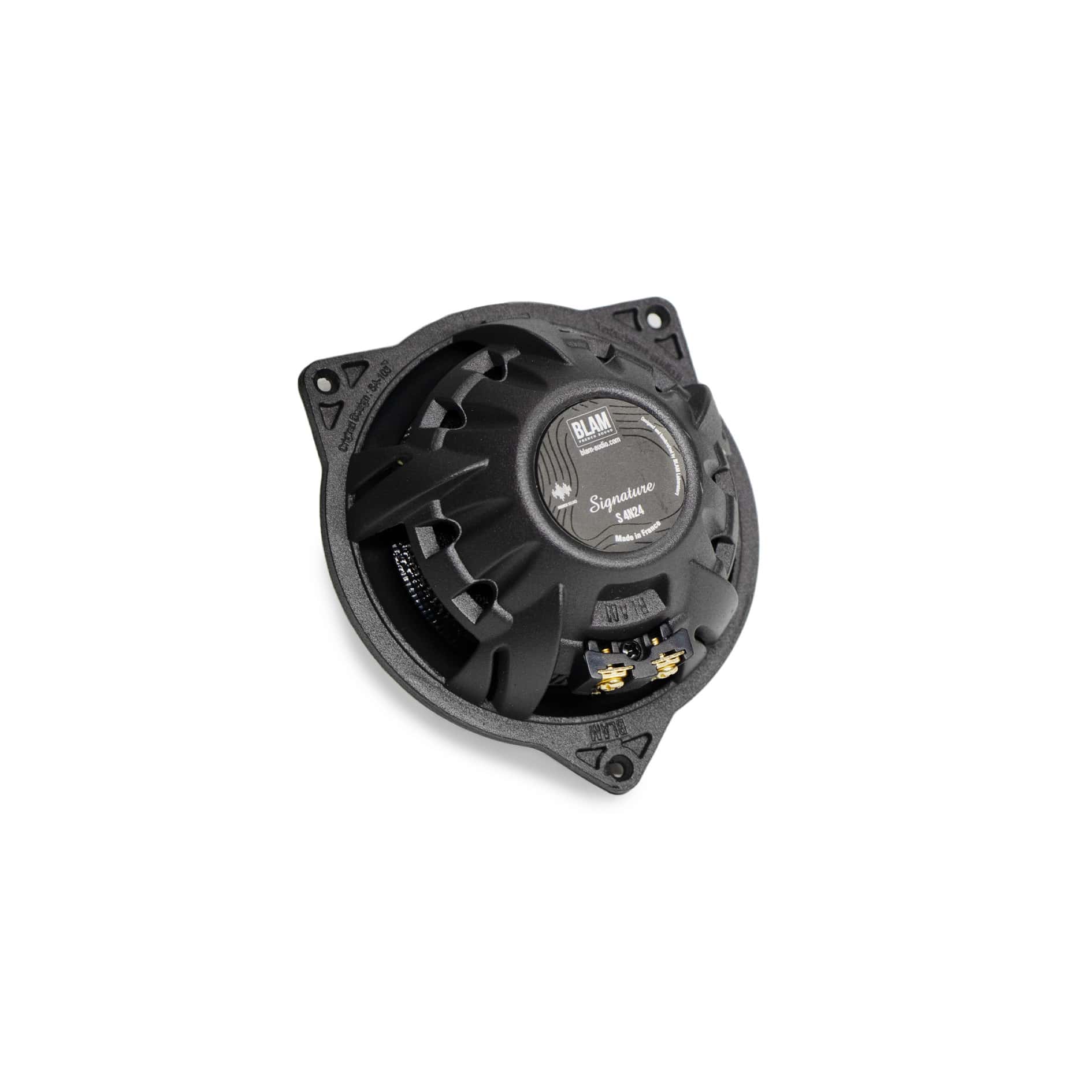

x2 woofer S4N24
4″ (100 mm) full range speaker
– Maximum power: 120 W / Nominal power: 60 W
– Frequency response 95 Hz – 9 KHz
– Impedance 3 Ohms
Die-cast aluminum basket – Ultra-stiff carbon fiber cone – Long-life “conex” spider – 25mm voice coil, fiberglass mount – High quality neodymium magnet, precision machined pole piece and T-clamp.
x2 tweeter T20HR
– 5 ohms, Neo magnet
– 20 mm (3/4″) textile dome diaphragm
– Compact mounting dimensions
– High efficiency magnet (neodymium N38H)
– Ferrofluid for high power handling
x2 filtre BFT01 – BFW01
6dB/octave high-pass filter
Tweeter level adjustable to 0 dB or attenuated to -3 dB
TECHNICAL DATA SHEETS :
Looking for Blam audio products?
Find our resellers and distributors
around the world.
100 S24 TWO-WAY CAR AUDIO SYSTEM KIT
THIS KIT INCLUDES
x2 woofer S4N24
4″ (100 mm) full range speaker
– Maximum power: 120 W / Nominal power: 60 W
– Frequency response 95 Hz – 9 KHz
– Impedance 3 Ohms
Die-cast aluminum basket – Ultra-stiff carbon fiber cone – Long-life “conex” spider – 25mm voice coil, fiberglass mount – High quality neodymium magnet, precision machined pole piece and T-clamp.
x2 tweeter T20HR
– 5 ohms, Neo magnet
– 20 mm (3/4″) textile dome diaphragm
– Compact mounting dimensions
– High efficiency magnet (neodymium N38H)
– Ferrofluid for high power handling
x2 filtre BFT01 – BFW01
6dB/octave high-pass filter
Tweeter level adjustable to 0 dB or attenuated to -3 dB
TECHNICAL DATA SHEETS :
| GAMME | Signature |
|---|---|
| TYPE | 2 separate lanes |
| TAILLE | 100mm (4") |
| PRODUIT | Kit |
