2-WAY SPEAKER SYSTEM
If you’ve decided to install new speakers in your car to enjoy your playlist on the road and you’re looking for a warm, airy and powerful system, the new BLAM 165LSQ from our LIVE range is for you.
Developed in the spirit of “French Sound” while keeping in mind the idea of the “vinyl” sound known for its delicacy, we designed this product using very high quality materials such as cellulose pulp membranes reinforced with bamboo fibers.
The 165LSQ brings out the authenticity of your favorite songs, and whatever the style of music, it invites you to listen to them again and again with its warmth, dynamism and smoothness.
Technical specification

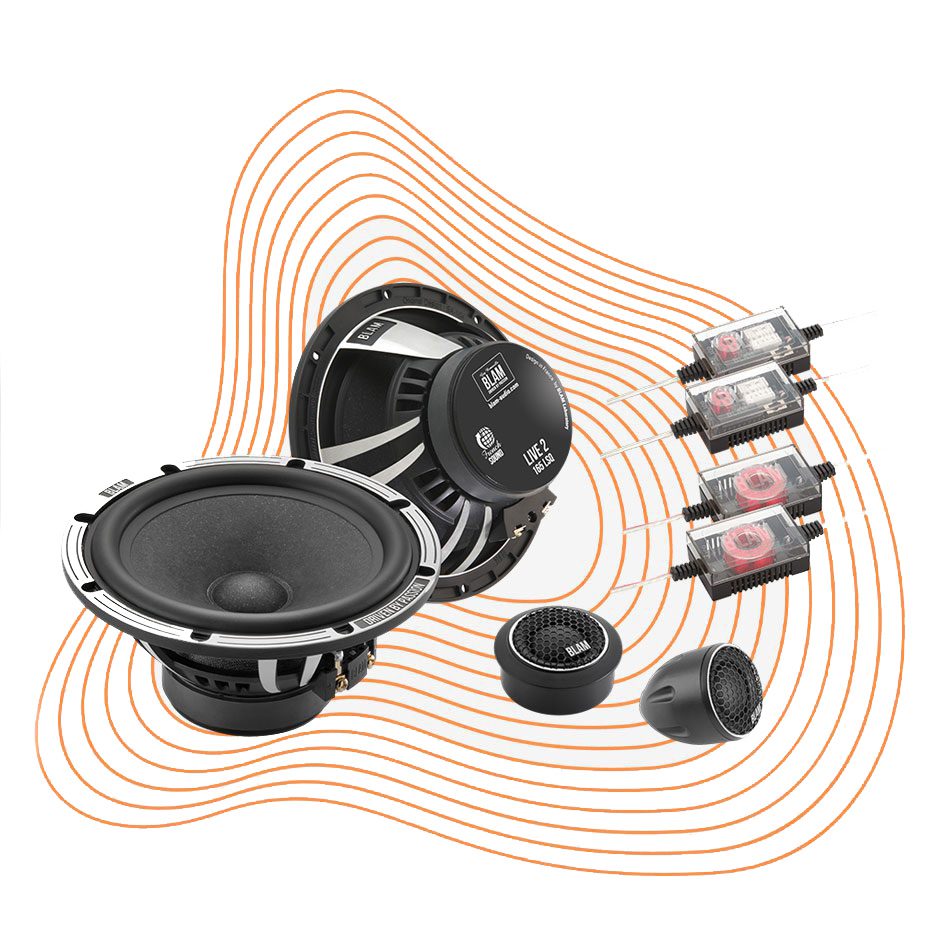

This kit consists of two 165 mm (6.5″) woofers, two 25 mm (1″) soft dome tweeters, two 6 dB/octave low-pass crossovers and two 12 dB/octave high-pass crossovers, suitable for bi-amplification.
High efficiency 2 channel high fidelity system
165 mm woofer
Max Power 120 W – Nominal Power 60 W
Frequency response 60 Hz – 25 kHz
Sensitivity 94 dB – Impedance 2 Ω
Mounting depth 71 mm
Available in 2 versions:
165 LSQ Passive (complete kit with crossovers)
165 LSQ Active (without crossover)
Also available in BLACK Edition (black woofers and tweeters)
Composition
165LSQ HIGH EFFICIENCY WOOFER
165 mm (6.5″) woofer
Max power 120 W / Nominal power 60 W
Frequency response 60 Hz – 9 kHz
Sensitivity 94 dB – Impedance 2 Ω
Moulded and machined aluminium basket – Cellulose pulp membrane reinforced with bamboo fibers – Butyl perimeter surround – Long life spider “Conex” – 28 mm coil on kapton support – 80 mm x 15 mm magnetic motor – 5 mm thick magnetic circuit
LT25 HIGH-QUALITY TWEETER
High quality 25 mm soft dome tweeter
Maximum power 100 W – Nominal power 15 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 91.6 dB – Impedance 3 Ω
High-efficiency N38 neodymium motor
BFW01 HIGH QUALITY CROSSOVER
Low pass 6 dB/octave crossover
BFT01 HIGH QUALITY CROSSOVERS
High pass 12 dB/octave crossover
Tweeter level adjustable to +3 dB, 0 dB or attenuated to -3 dB
Supplied accessories:
Mounting screws
Mounting accessories for tweeters
User manual
Looking for Blam audio products? Find our resellers and distributors around the world.
2-WAY SPEAKER SYSTEM
If you’ve decided to install new speakers in your car to enjoy your playlist on the road and you’re looking for a warm, airy and powerful system, the new BLAM 165LSQ from our LIVE range is for you.
Developed in the spirit of “French Sound” while keeping in mind the idea of the “vinyl” sound known for its delicacy, we designed this product using very high quality materials such as cellulose pulp membranes reinforced with bamboo fibers.
The 165LSQ brings out the authenticity of your favorite songs, and whatever the style of music, it invites you to listen to them again and again with its warmth, dynamism and smoothness.
Technical specification
This kit consists of two 165 mm (6.5″) woofers, two 25 mm (1″) soft dome tweeters, two 6 dB/octave low-pass crossovers and two 12 dB/octave high-pass crossovers, suitable for bi-amplification.
High efficiency 2 channel high fidelity system
165 mm woofer
Max Power 120 W – Nominal Power 60 W
Frequency response 60 Hz – 25 kHz
Sensitivity 94 dB – Impedance 2 Ω
Mounting depth 71 mm
Available in 2 versions:
165 LSQ Passive (complete kit with crossovers)
165 LSQ Active (without crossover)
Also available in BLACK Edition (black woofers and tweeters)
Composition
165LSQ HIGH EFFICIENCY WOOFER
165 mm (6.5″) woofer
Max power 120 W / Nominal power 60 W
Frequency response 60 Hz – 9 kHz
Sensitivity 94 dB – Impedance 2 Ω
Moulded and machined aluminium basket – Cellulose pulp membrane reinforced with bamboo fibers – Butyl perimeter surround – Long life spider “Conex” – 28 mm coil on kapton support – 80 mm x 15 mm magnetic motor – 5 mm thick magnetic circuit
LT25 HIGH-QUALITY TWEETER
High quality 25 mm soft dome tweeter
Maximum power 100 W – Nominal power 15 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 91.6 dB – Impedance 3 Ω
High-efficiency N38 neodymium motor
BFW01 HIGH QUALITY CROSSOVER
Low pass 6 dB/octave crossover
BFT01 HIGH QUALITY CROSSOVERS
High pass 12 dB/octave crossover
Tweeter level adjustable to +3 dB, 0 dB or attenuated to -3 dB
Supplied accessories:
Mounting screws
Mounting accessories for tweeters
User manual
| GAMME | Live |
|---|---|
| TYPE | 2 ways |
| TAILLE | 165mm |
