KIT 165 S300

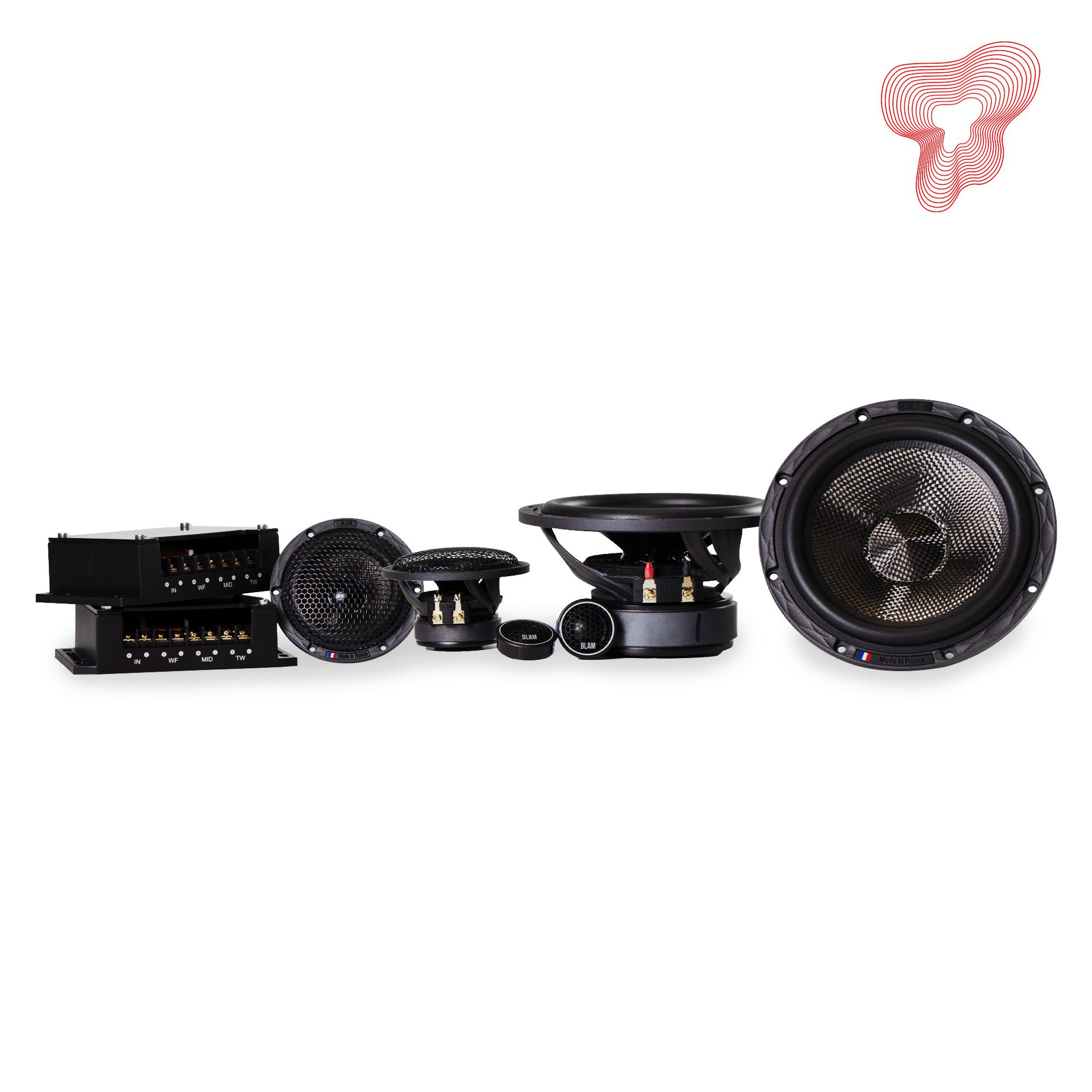

The Kit 165 S300 is a three-way audio system offering precise and powerful sound reproduction. It includes two 6.5’’ (165 mm) woofers with a maximum power of 250 W, a frequency response of 50 Hz to 5 kHz and an impedance of 2 Ω, equipped with an ultra-rigid carbon fiber cone and an oversized magnetic motor. Two S 3.55 midrange drivers ensure a wide bandwidth of 200 Hz to 27 kHz with an impedance of 3 Ω, integrating an aluminum phase plug and gold-plated terminals for optimal signal transmission. The highs are handled by two T20HR tweeters with 20 mm textile dome, offering a frequency response of 1.5 kHz to 40 kHz with an impedance of 4 Ω. The set is completed by BFX03 filters for optimal signal management, guaranteeing an immersive and detailed audio experience.

THREE SEPARATE VOICE KIT 165 S300

THIS KIT INCLUDES

x2 Woofer 6.300

Woofer 6-1/2’’ (165 mm)

Max. power 250 W / Nominal power 125 W

Frequency response 50 Hz – 5 kHz

Impedance 2 Ω

Die-cast aluminum basket – Ultra-rigid carbon fiber cone – NBR surround – Long-life “Conex” spider – 38 mm (1.5″) voice coil on fiberglass support – Oversized 100 mm x 20 mm magnetic motor – Gold-plated terminal block



x2 Medium S 3.55

Extended frequency, can be used in full range

Frequency response 200 Hz – 27 KHz

Impedance 3 Ω

Die-cast aluminum basket – Ultra-rigid carbon fiber cone – NBR surround – Long-life “conex” spider – 20mm voice coil, fiberglass support – Oversized 55mm x 10mm magnetic motor – Machined aluminum phase plug – Gold-plated terminal.

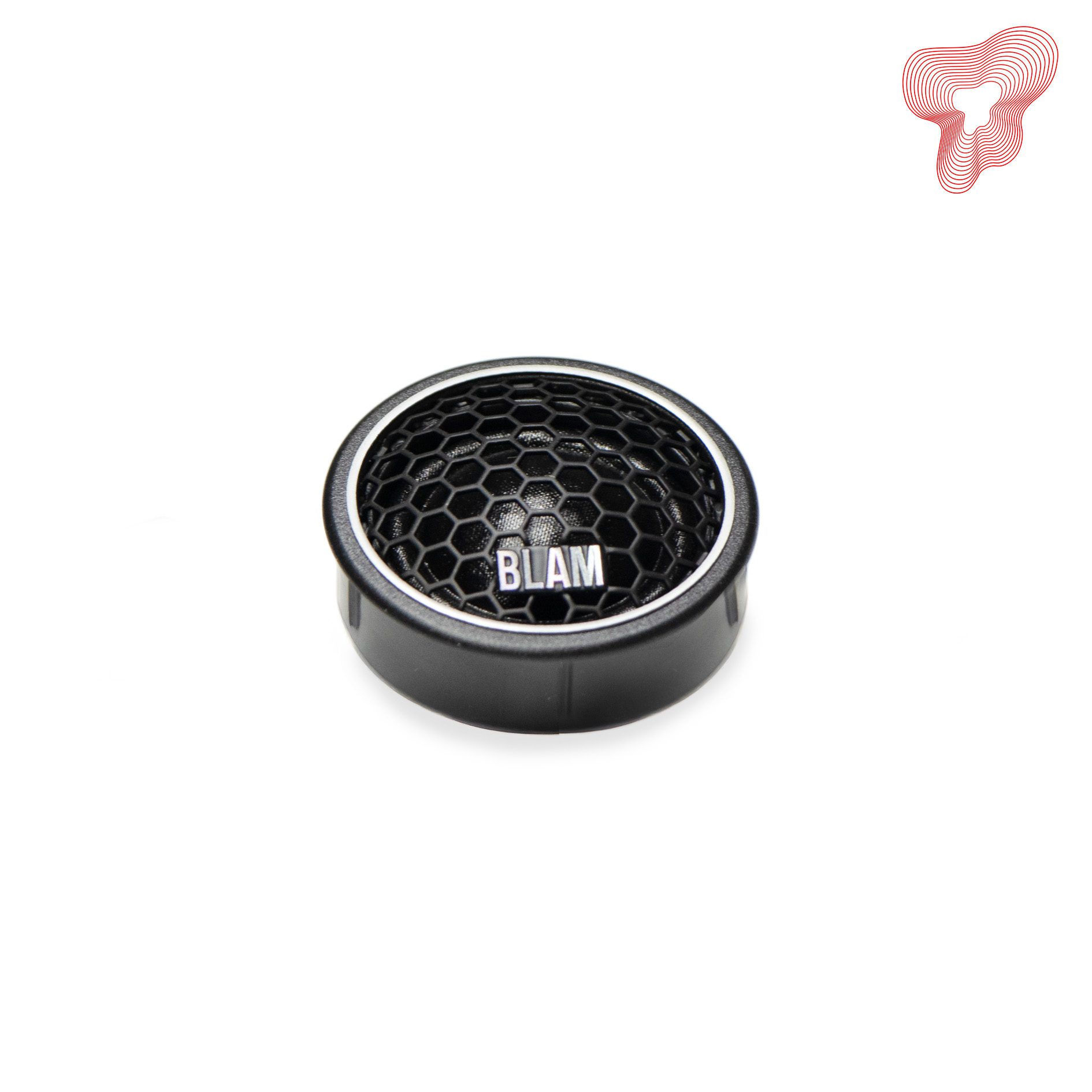

x2 Tweeter T20HR

20mm (3/4″) textile dome diaphragm

Max. power 100 W – Nominal power 15 W

Frequency response 1.5 Hz – 40 KHz

Impedance 4 Ω



Crossover BFX03



TECHNICAL DATA SHEETS :

Looking for Blam audio products?
Find our resellers and distributors around the world.

THREE SEPARATE VOICE KIT 165 S300

THIS KIT INCLUDES

x2 Woofer 6.300

Woofer 6-1/2’’ (165 mm)

Max. power 250 W / Nominal power 125 W

Frequency response 50 Hz – 5 kHz

Impedance 2 Ω

Die-cast aluminum basket – Ultra-rigid carbon fiber cone – NBR surround – Long-life “Conex” spider – 38 mm (1.5″) voice coil on fiberglass support – Oversized 100 mm x 20 mm magnetic motor – Gold-plated terminal block



x2 Medium S 3.55

Extended frequency, can be used in full range

Frequency response 200 Hz – 27 KHz

Impedance 3 Ω

Die-cast aluminum basket – Ultra-rigid carbon fiber cone – NBR surround – Long-life “conex” spider – 20mm voice coil, fiberglass support – Oversized 55mm x 10mm magnetic motor – Machined aluminum phase plug – Gold-plated terminal.



x2 Tweeter T20HR

20mm (3/4″) textile dome diaphragm

Max. power 100 W – Nominal power 15 W

Frequency response 1.5 Hz – 40 KHz

Impedance 4 Ω



Crossover BFX03



TECHNICAL DATA SHEETS :

TYPE

3 separate lanes

GAMME

Signature

PRODUIT

Kit

TAILLE

165mm (6")
