Kit 165 S300MG
Kit 165 S300MG - Image 2
Kit 165 S300MG - Image 3
Kit 165 S300MG - Image 4

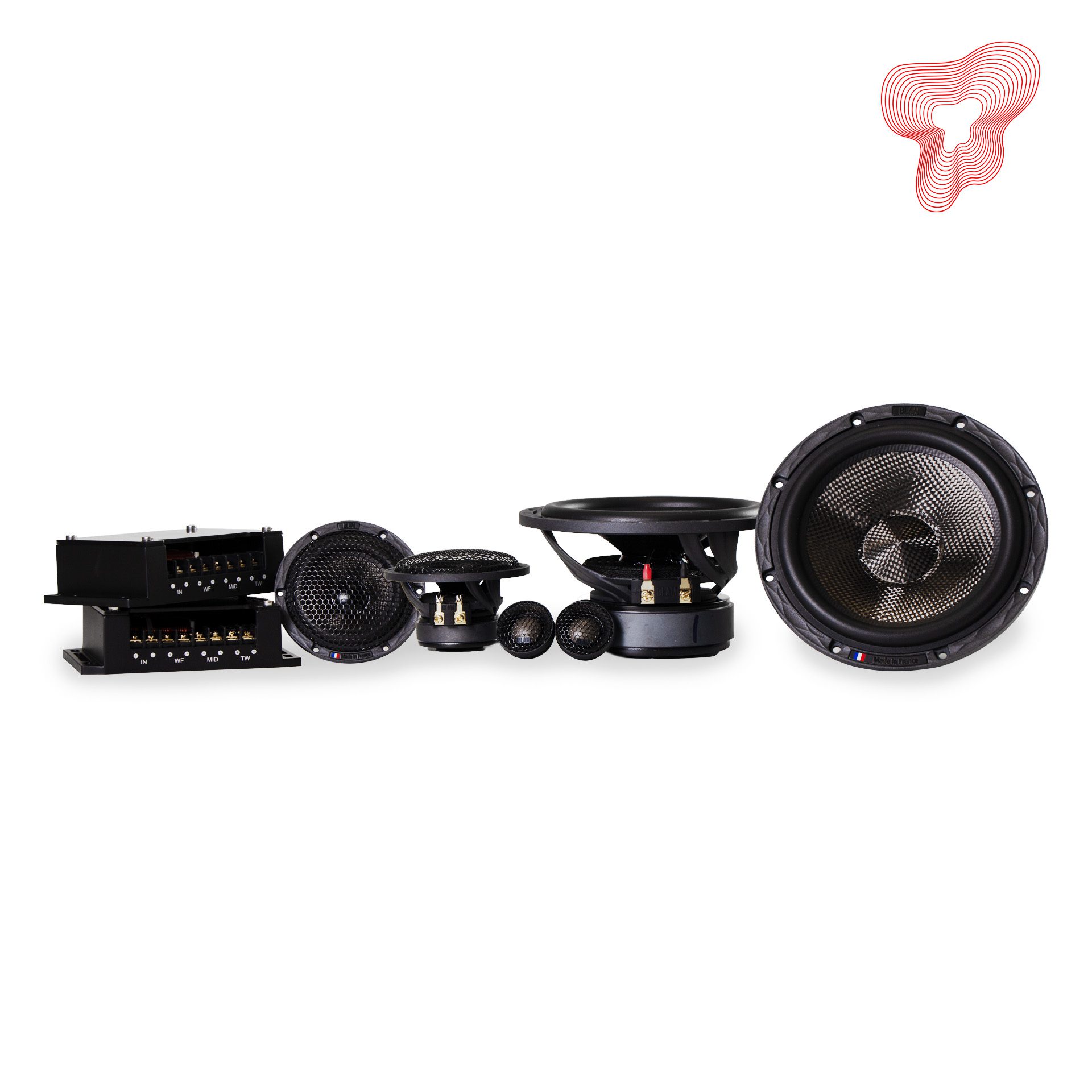

Kit 165 S300MG

The Kit 165 S300MG is a three-way audio system designed for exceptional sound reproduction. It includes two 6.5” (165 mm) woofers offering a maximum power of 250 W, a frequency response of 50 Hz to 5 kHz and an impedance of 2 Ω, equipped with an ultra-rigid carbon fiber cone and an oversized magnetic motor for optimal performance. Two S 3.55 midrange drivers guarantee a wide bandwidth of 200 Hz to 27 kHz with an impedance of 3 Ω, integrating an aluminum phase plug and gold-plated terminals for a faithful reproduction of sonic details. The highs are handled by two T25MG tweeters with a 25 mm pure magnesium dome, equipped with a high-efficiency neodymium magnet and a precision-machined aluminum faceplate for exceptional sound clarity. The set is completed by BX03 filters ensuring optimal signal management, offering a powerful, precise and immersive audio experience.

Contact us

THREE SEPARATE WAY KIT 165 S300MG

THIS KIT INCLUDES

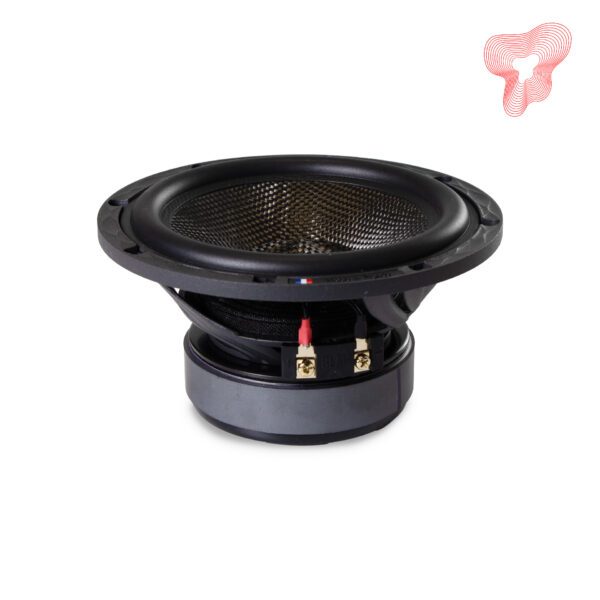

x2 Woofer 6.300

Woofer 6-1/2’’ (165 mm)

Max. power 250 W / Nominal power 125 W

Frequency response 50 Hz – 5 kHz

Impedance 2 Ω

Die-cast aluminum basket – Ultra-rigid carbon fiber cone – NBR surround – Long-life “Conex” spider – 38 mm (1.5”) voice coil on fiberglass support – Oversized 100 mm x 20 mm magnetic motor – Gold-plated terminal block



x2 Medium S 3.55

Extended frequency, can be used in full range

Frequency response 200 Hz – 27 KHz

Impedance 3 Ω

Die-cast aluminum basket – Ultra-stiff carbon fiber cone – NBR surround – Long-life “conex” spider – 20mm voice coil, fiberglass support – Oversized 55mm x 10mm magnetic motor – Machined aluminum phase plug – Gold-plated terminal.



X2 TWEETER T25MG

25mm (1”) pure magnesium dome tweeter

High efficiency N38 neodymium magnet
High precision machined aluminum front plate
Transparent sound protection grilleAimant en néodyme à haut rendement N38
Plaque avant en aluminium usinée de haute précision
Grille de protection transparente pour le son



CROSSOVER BX03



TECHNICAL DATA SHEETS :

Icon

S 6.300

1 file(s) 2.29 MB
Download
Icon

S 3.55

1 file(s) 1.81 MB
Download
Icon

T25MG

1 file(s) 1.34 MB
Download

Looking for Blam audio products?
Find our resellers and distributors around the world.

Installers
Distributors

THREE SEPARATE WAY KIT 165 S300MG

THIS KIT INCLUDES

x2 Woofer 6.300

Woofer 6-1/2’’ (165 mm)

Max. power 250 W / Nominal power 125 W

Frequency response 50 Hz – 5 kHz

Impedance 2 Ω

Die-cast aluminum basket – Ultra-rigid carbon fiber cone – NBR surround – Long-life “Conex” spider – 38 mm (1.5”) voice coil on fiberglass support – Oversized 100 mm x 20 mm magnetic motor – Gold-plated terminal block



x2 Medium S 3.55

Extended frequency, can be used in full range

Frequency response 200 Hz – 27 KHz

Impedance 3 Ω

Die-cast aluminum basket – Ultra-stiff carbon fiber cone – NBR surround – Long-life “conex” spider – 20mm voice coil, fiberglass support – Oversized 55mm x 10mm magnetic motor – Machined aluminum phase plug – Gold-plated terminal.



X2 TWEETER T25MG

25mm (1”) pure magnesium dome tweeter

High efficiency N38 neodymium magnet
High precision machined aluminum front plate
Transparent sound protection grilleAimant en néodyme à haut rendement N38
Plaque avant en aluminium usinée de haute précision
Grille de protection transparente pour le son



CROSSOVER BX03



TECHNICAL DATA SHEETS :

Icon

S 6.300

1 file(s) 2.29 MB
Download
Icon

S 3.55

1 file(s) 1.81 MB
Download
Icon

T25MG

1 file(s) 1.34 MB
Download
TYPE

3 separate lanes
GAMME

Signature
PRODUIT

Kit
TAILLE

165mm (6")
