KIT 165 S45

The S24 kit is designed to deliver a rich and balanced sound experience. It includes two 165 mm (6.5″) S6.45 woofers with a shallow depth, capable of delivering a maximum power of 150 W with a frequency response of 60 Hz to 8 kHz, ideal for dynamic bass and precise midrange. The two T20HR tweeters, with their 20 mm textile domes and high-efficiency neodymium magnets, ensure a smooth and detailed reproduction of high frequencies, even in tight spaces thanks to their compact design. The BFT01 – BFW01 filters complete the system by optimizing frequency separation, with customizable tweeter level adjustment (0 dB or -3 dB) for a sound perfectly suited to your preferences.

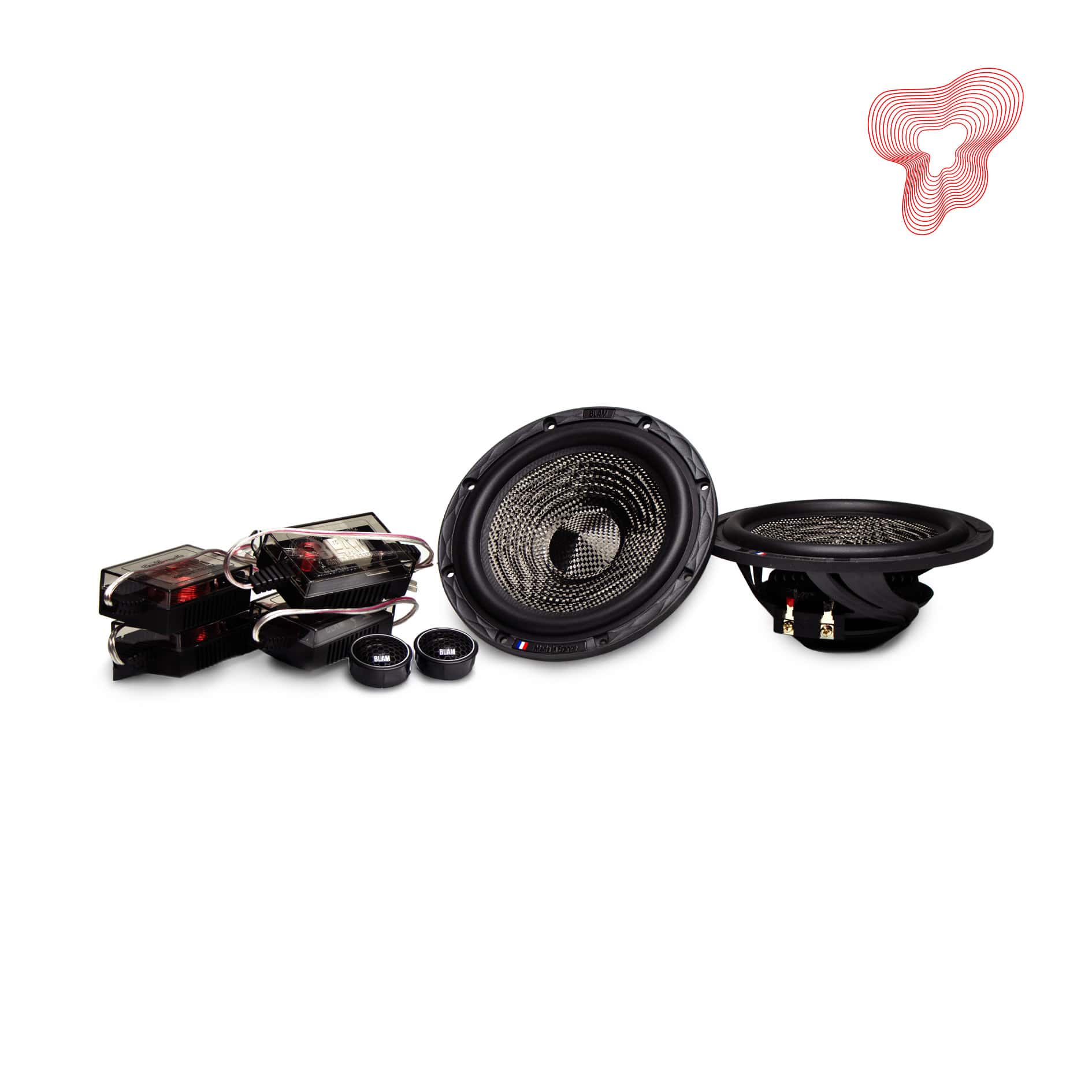

100 S24 TWO-WAY CAR AUDIO SYSTEM KIT

THIS KIT INCLUDES

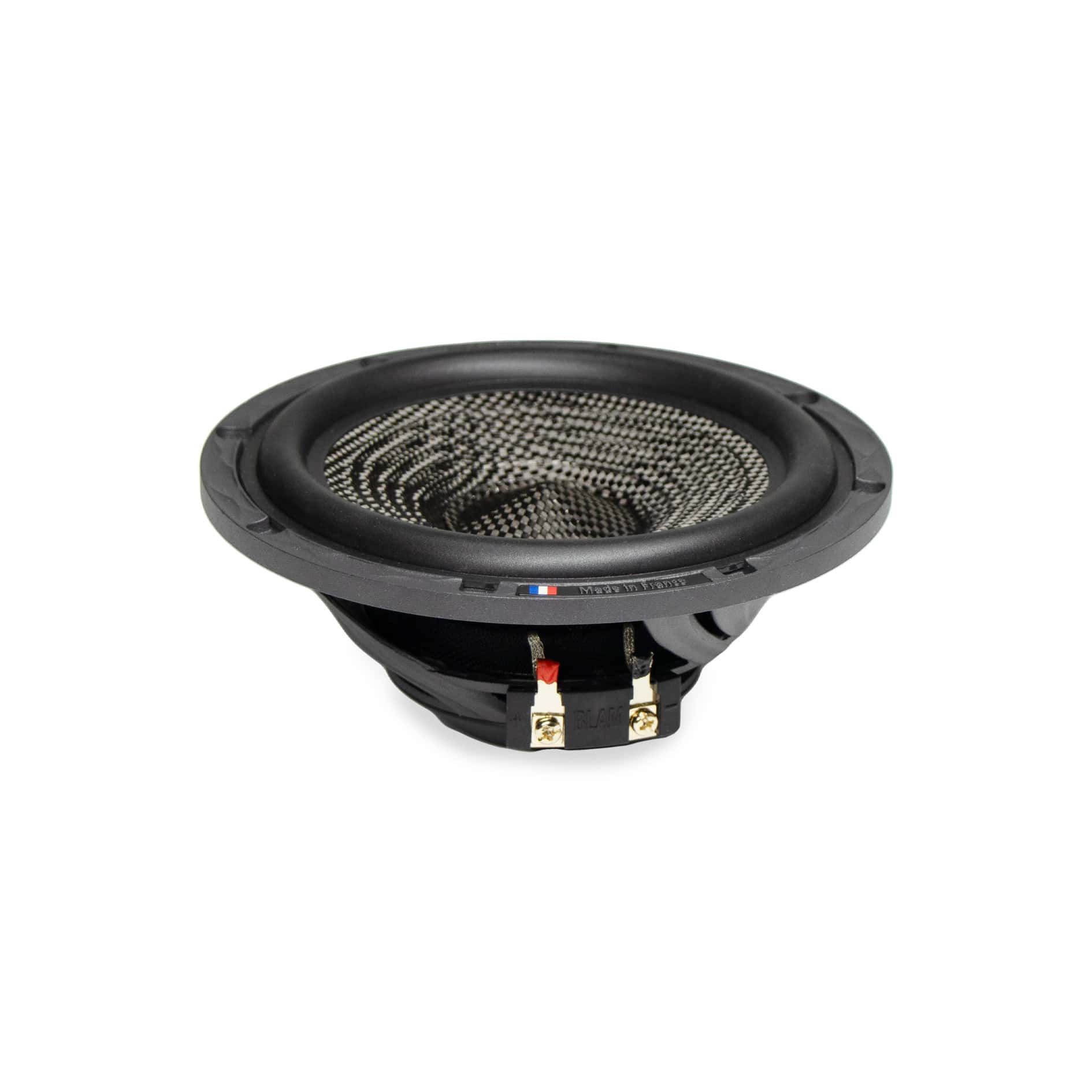

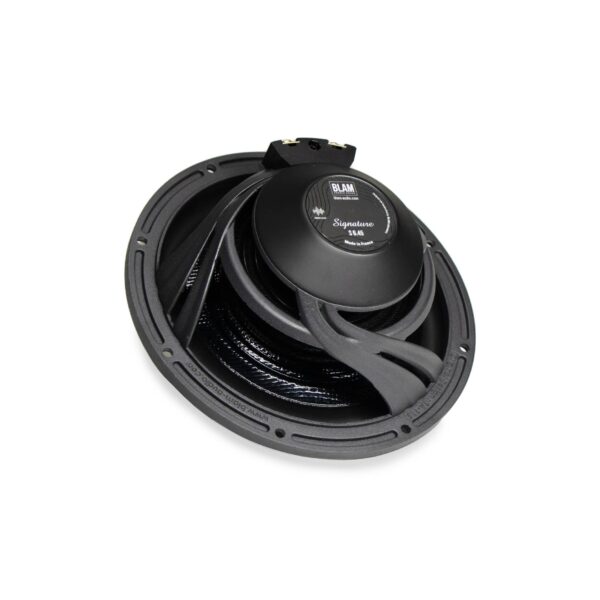

x2 woofer S6.45

– Shallow woofer 165 mm (6.5″)
– Maximum power 150 W / Nominal power 75 W
– Frequency response 60 Hz – 8 kHz
– Impedance 3 Ohms



x2 tweeter T20HR

– 5 ohms, Neo magnet
– 20 mm (3/4″) textile dome diaphragm
– Compact mounting dimensions
– High efficiency magnet (neodymium N38H)
– Ferrofluid for high power handling



x2 filtre BFT01 – BFW01

6dB/octave high-pass filter
Tweeter level adjustable to 0 dB or attenuated to -3 dB



TECHNICAL DATA SHEETS :

Looking for Blam audio products?
Find our resellers and distributors around the world.

100 S24 TWO-WAY CAR AUDIO SYSTEM KIT

THIS KIT INCLUDES

x2 woofer S6.45

– Shallow woofer 165 mm (6.5″)
– Maximum power 150 W / Nominal power 75 W
– Frequency response 60 Hz – 8 kHz
– Impedance 3 Ohms



x2 tweeter T20HR

– 5 ohms, Neo magnet
– 20 mm (3/4″) textile dome diaphragm
– Compact mounting dimensions
– High efficiency magnet (neodymium N38H)
– Ferrofluid for high power handling



x2 filtre BFT01 – BFW01

6dB/octave high-pass filter
Tweeter level adjustable to 0 dB or attenuated to -3 dB



TECHNICAL DATA SHEETS :

TYPE

2 separate lanes

GAMME

Signature

TAILLE

165mm (6")

PRODUIT

Kit
