KIT 165 S80MG
High-performance audio kit designed to deliver precise and powerful sound. It consists of two 6.5’’ (165 mm) S 6.80 woofers with a maximum power of 120W and an impedance of 2 Ohms. Their ultra-rigid carbon fiber cone, combined with a die-cast aluminum bowl, ensures dynamic and faithful sound reproduction, even at high volume. The two T20MG tweeters in pure magnesium, equipped with N48 neodymium magnets, offer crystal-clear highs and excellent sound dispersion. Their precision-machined aluminum front plate guarantees optimal diffusion. The set is completed by BFT01 – BFW01 filters incorporating a 6dB/octave high-pass and adjustable tweeter attenuation (0 dB or -3 dB), allowing you to adapt the sound rendering according to your preferences. Ideal for demanding audiophiles, this kit combines power, clarity and precision for an immersive sound experience.

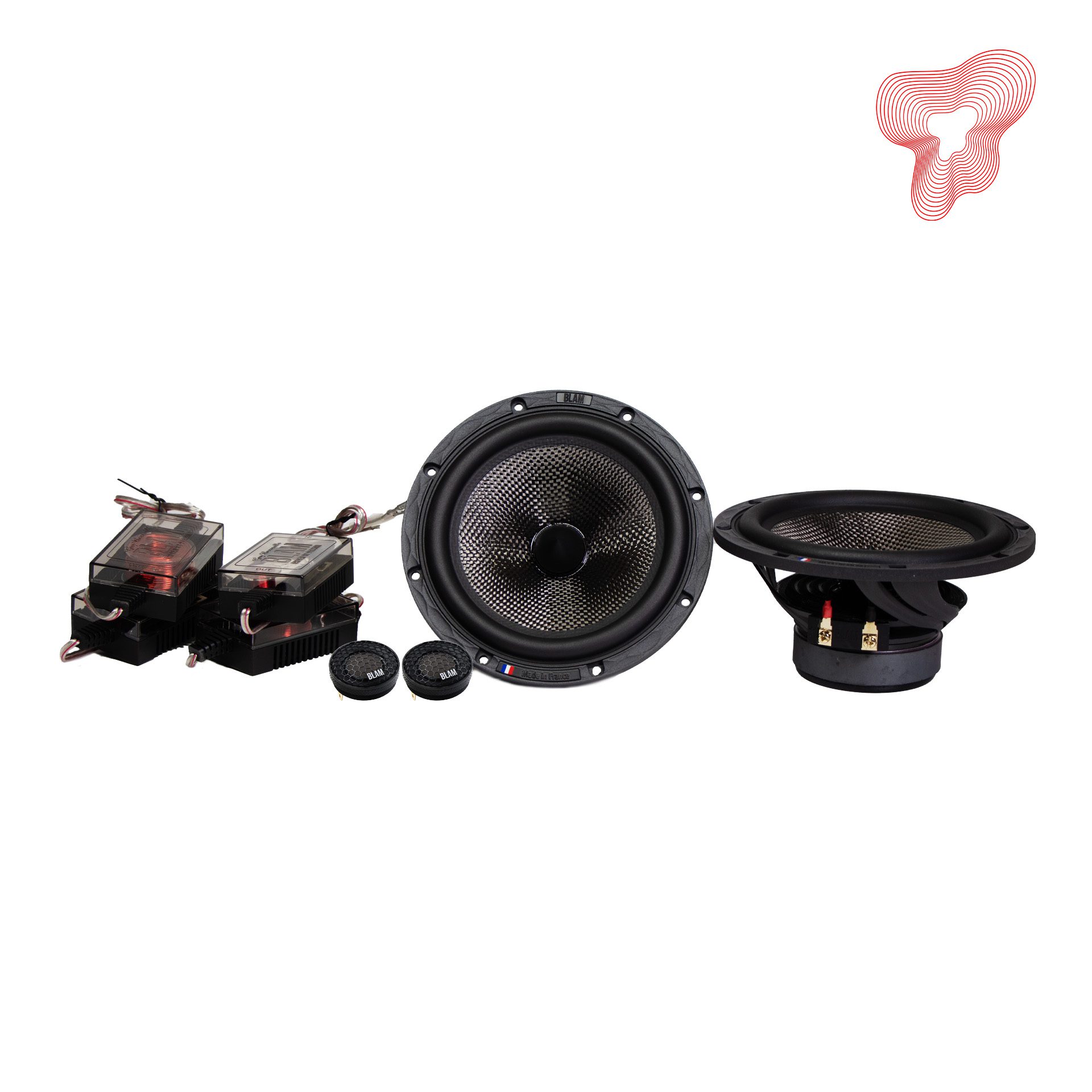

KIT 165 S80MG TWO-WAY SEPARATE CAR AUDIO SYSTEM
THIS KIT INCLUDES

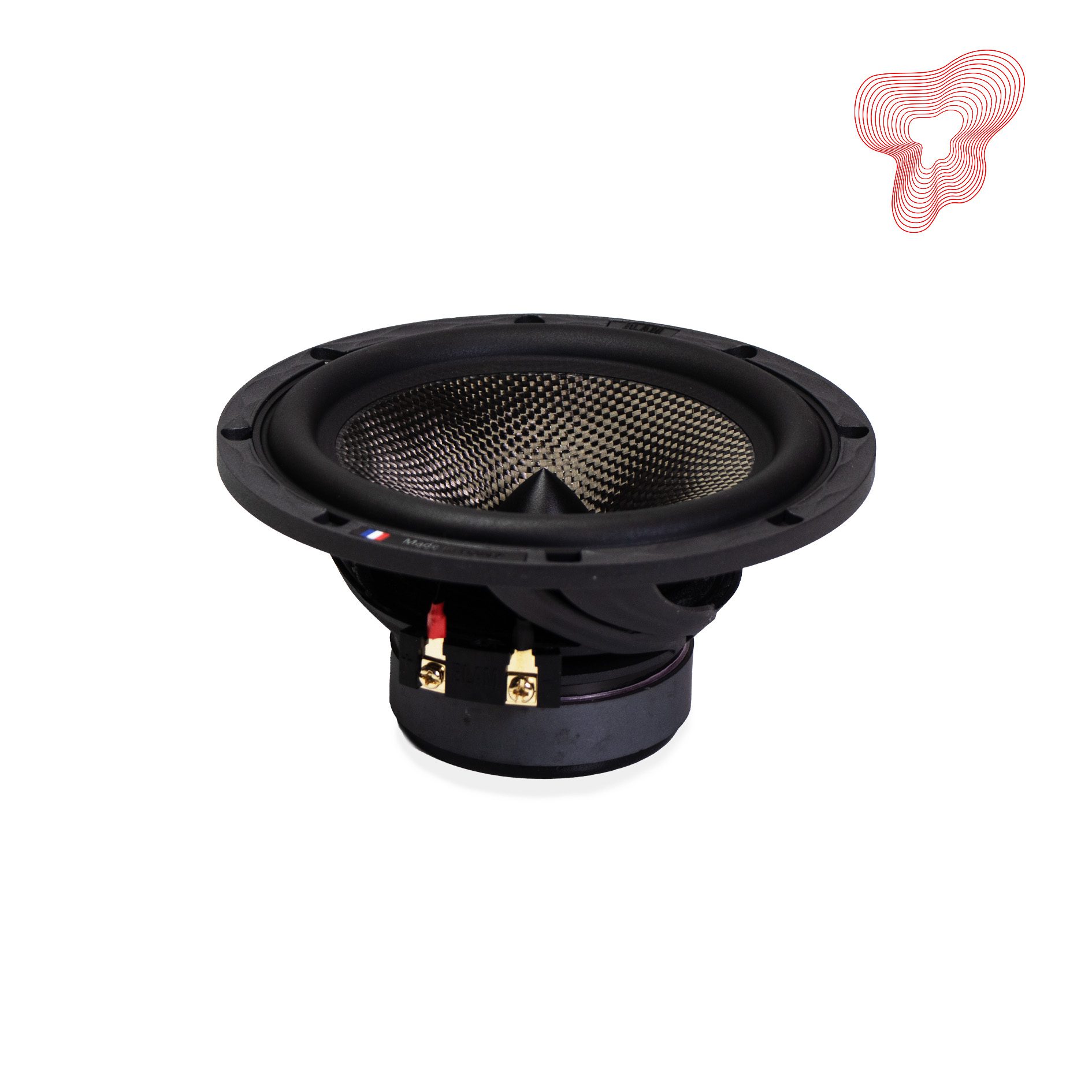

x2 woofer S 6.80
Woofer 6-1/2 ‘‘ (165 mm)
Max. power 120 W / Nom. power 60 W
Frequency response 60 Hz – 7 KHz
Impedance 2 Ohms
Die-cast aluminum bowl – Ultra-rigid carbon fiber cone – IIR surround – Long-life “conex” spider – 28mm voice coil, fiberglass support – 80mm x 17mm magnet motor – Machined pole pieces – Gold-plated terminal block.

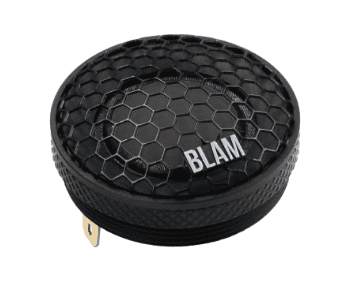

x2 tweeter T20MG
20mm (3/4”) Pure Magnesium Dome Tweeter
Super Powerful N48 Neodymium Magnet
Precision Machined Aluminum Front Plate
Transparent Sound Protection Grille
x2 filtre BFT01 – BFW01
6dB/octave high-pass filter
Tweeter level adjustable to 0 dB or attenuated to -3 dB
TECHNICAL DATA SHEETS :
Looking for Blam audio products?
Find our resellers and distributors
around the world.
KIT 165 S80MG TWO-WAY SEPARATE CAR AUDIO SYSTEM
THIS KIT INCLUDES
x2 woofer S 6.80
Woofer 6-1/2 ‘‘ (165 mm)
Max. power 120 W / Nom. power 60 W
Frequency response 60 Hz – 7 KHz
Impedance 2 Ohms
Die-cast aluminum bowl – Ultra-rigid carbon fiber cone – IIR surround – Long-life “conex” spider – 28mm voice coil, fiberglass support – 80mm x 17mm magnet motor – Machined pole pieces – Gold-plated terminal block.
x2 tweeter T20MG
20mm (3/4”) Pure Magnesium Dome Tweeter
Super Powerful N48 Neodymium Magnet
Precision Machined Aluminum Front Plate
Transparent Sound Protection Grille
x2 filtre BFT01 – BFW01
6dB/octave high-pass filter
Tweeter level adjustable to 0 dB or attenuated to -3 dB
TECHNICAL DATA SHEETS :
TYPE | 2 separate lanes |
---|---|
GAMME | Signature |
PRODUIT | Kit |
TAILLE | 165mm (6") |
