3 (2+1) SEPARATE-CHANNEL LOUDSPEAKER SYSTEM
Technical specification

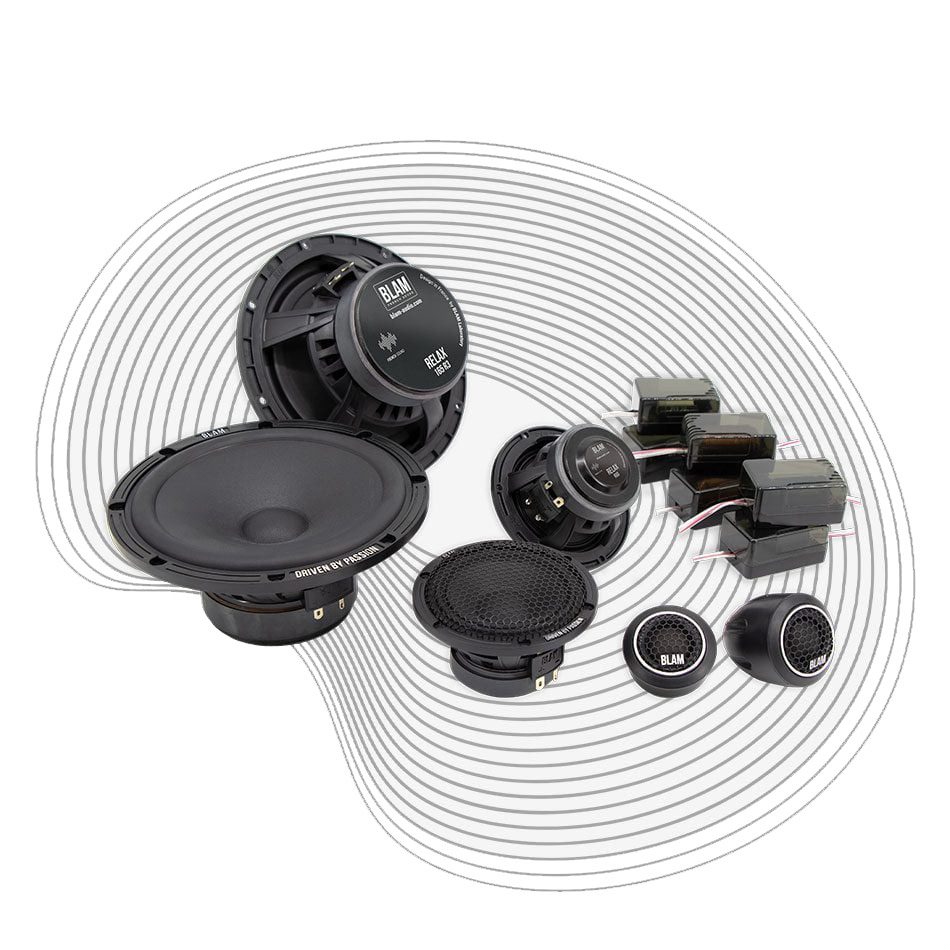

This kit includes two 165mm (6.5″) woofers, two 80mm (3″) midrange drivers, two 20mm (3/4″) soft-dome tweeters and six separate crossovers.
High efficiency 3-way separate system 165 mm
Maximum power 150 W – Nominal power 75 W
Frequency response 60 Hz – 25 kHz
Sensitivity 95 dB – Impedance 2 Ω
Composition
- 165R3 WOOFER 165 MM
165 mm (6.5”) woofer
Puissance maximale 150 W / Puissance nominale 75 W
Réponse en fréquence 60 Hz – 8 kHz
Sensibilité 95 dB – Impédance 2 Ω
Fiberglass-reinforced composite saladier – High-quality treated cellulose pulp diaphragm – Butyl peripheral suspension – “Conex” long-life spider – Magnetic motor Long-life “Conex” spider – 25 mm coil on Kapton support – 85 mm x 17 mm magnetic motor – Thick magnetic circuit (5 mm)
- R80 MEDIUM DRIVER 80 MM
Max. power handling 100 W – Nominal power handling 25 W* – Frequency response
Frequency response 150 Hz – 23 kHz
Sensitivity 86 dB – Impedance 3 Ω
Installation depth 45.5 mm (1.8″)
Saladier en composite renforcé en fibre de verre – Membrane haute qualité en pulpe de cellulose – Suspension périphérique en butyle – Spider longue vie « Conex » – Bobine 20 mm sur support en fibre de verre – Moteur ferrite 55 mm x 10 mm
- R2T20 SOFT DOME TWEETER
High-quality 20 mm soft dome tweeter
Maximum power 100 W / Nominal power 10 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 90 dB – Impedance 3 Ω
N38 neodymium motor – Special high-quality soft dome – Ferrofluid for high power output
- FILTERS
2 woofer low-pass filters 6 dB/octave: BFR3-W
2 medium high-pass filters 6 dB/octave: BFR3-M
2 tweeter high-pass filters 6 dB/octave: BFR3-T
Tweeter level adjustable to 0 dB or attenuated to -3 dB
Accessoires fournis :
Mounting screws
Mounting accessories for tweeters – incl. inclined stand
Operating instructions
