2-WAY 165 MM SPEAKER SYSTEM
Technical specification

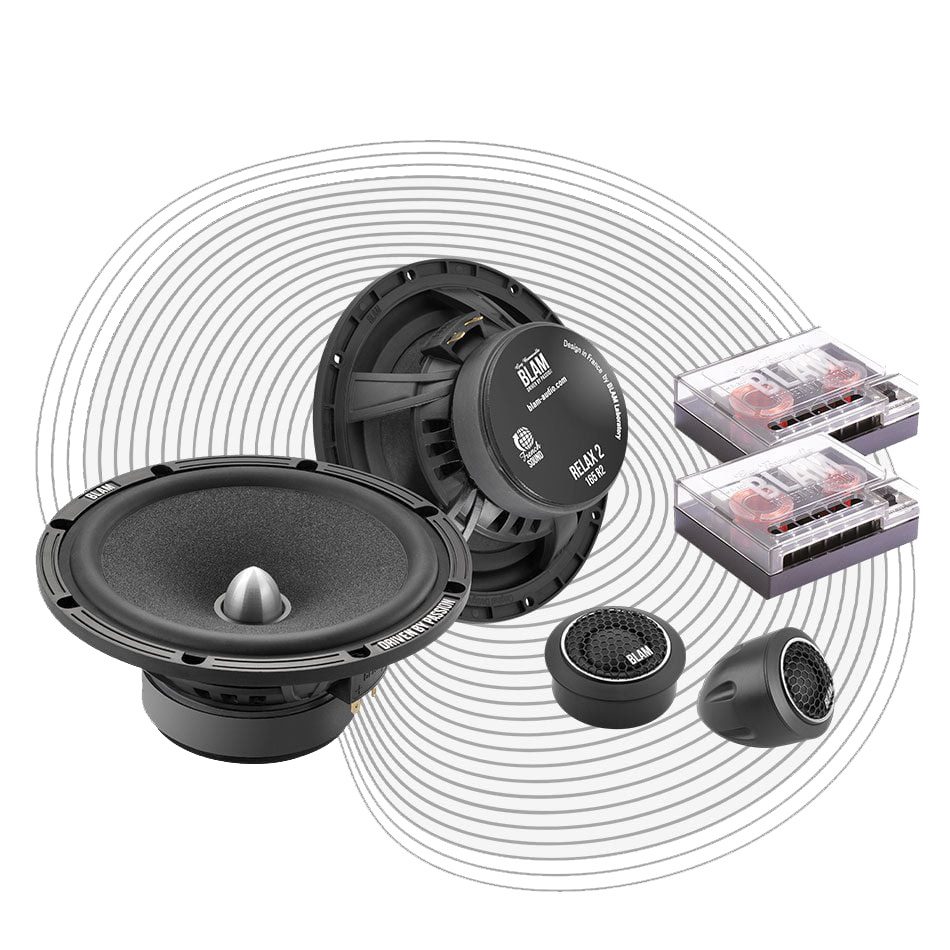

This kit is composed of two 165mm (6.5″) woofers, two 20mm (3/4″) soft dome tweeters and two 2-way crossovers: low-pass 6dB/octave and high-pass 12dB/octave with adjustable tweeter level -3dB, 0dB and +3dB.
High-efficiency system 2 separate ways
165 mm woofer
Maximum power 150 W – Nominal power 75 W
Frequency response 60 Hz – 25 kHz
Sensitivity 95 dB – Impedance 2 Ω
Composition
- 165R2 WOOFER 165 MM
165 mm (6.5”) woofer
Maximum power 150 W / Nominal power 75 W
Frequency response 60 Hz – 8 kHz
Sensitivity 95 dB – Impedance 2 Ω
Fiberglass-reinforced composite saladier – High-quality treated cellulose pulp diaphragm – Butyl peripheral suspension – “Conex” long-life spider – Magnetic motor Long-life “Conex” spider – 25 mm coil on Kapton support – 85 mm x 17 mm magnetic motor – Thick magnetic circuit (5 mm)
- R2T20 SOFT DOME TWEETER
High-quality 20 mm soft dome tweeter
Maximum power 100 W / Nominal power 10 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 90 dB – Impedance 3 Ω
N38 neodymium motor – Special high-quality soft dome – Ferrofluid for high power output
- Filtres 2 voies
low-pass 6 dB/octave
12 dB/octave high-pass with adjustable tweeter levels -3 dB, 0 dB and +3 dB.
Supplied accessories :
Mounting screws
Mounting accessories for tweeters
Operating instructions
