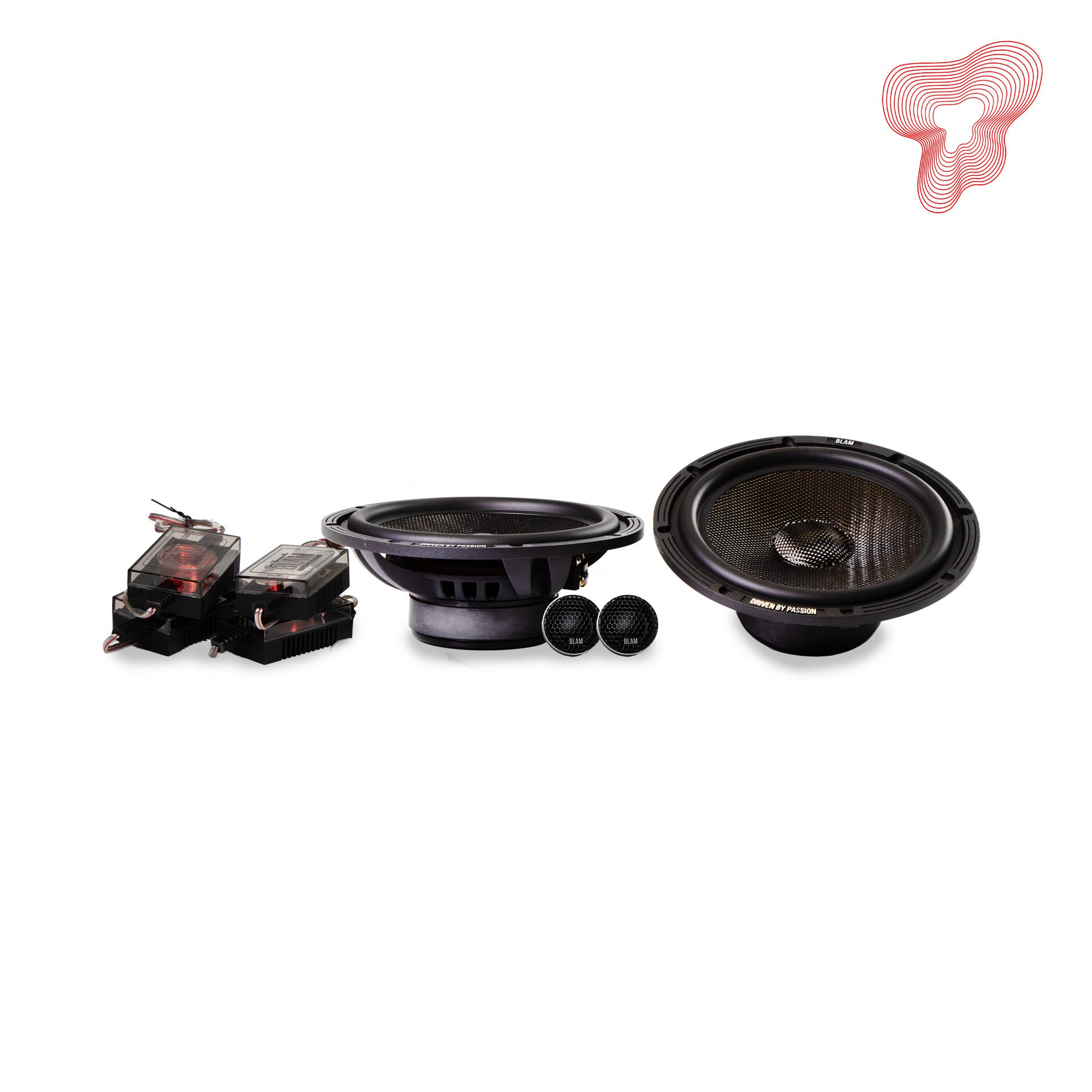

TWO-WAY CAR AUDIO SYSTEM KIT 200 S2
THIS KIT INCLUDES

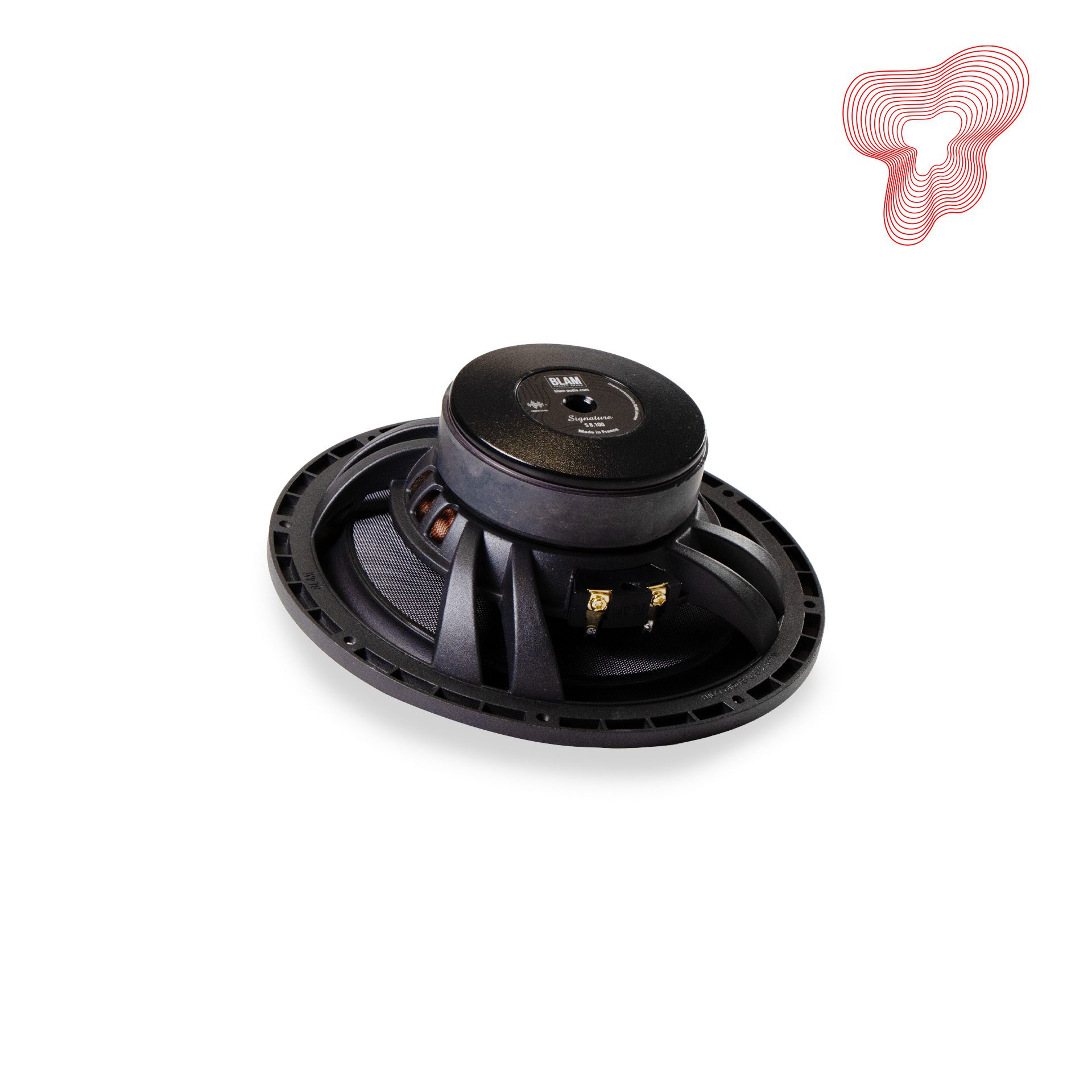

x2 woofer S8.100
8″ (200 mm) speaker
– Maximum power: 300 W / Nominal power: 150 W
– Frequency response 50 Hz – 3.8 KHz
– Impedance 2 Ohms
Cast aluminum basket – Ultra-rigid carbon fiber cone – NBR surround – Long-life “Conex” damper – 38 mm voice coil on fiberglass support – Oversized 100 mm x 20 mm magnetic motor – Gold-plated terminal block.

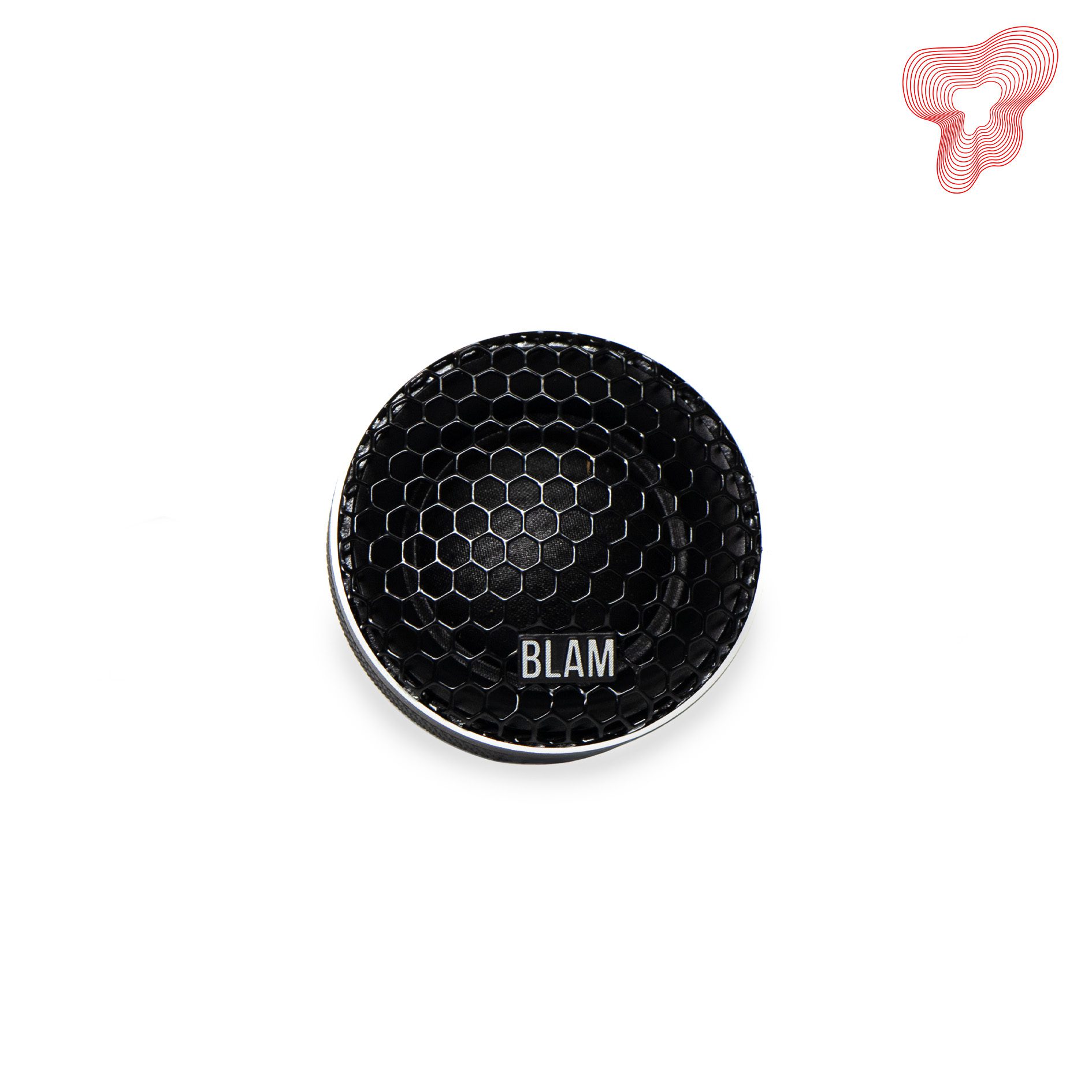

x2 tweeter T25S
– 5 ohms, Neo magnet
– 25 mm (1″) textile dome diaphragm
– Precision machined aluminum front panel
– Sound transparent protective grille
x2 filtre BFT01
6dB/octave high-pass filter
Tweeter level adjustable to 0 dB or attenuated to -3 dB
TECHNICAL DATA SHEETS :
Looking for Blam audio products?
Find our resellers and distributors
around the world.
TWO-WAY CAR AUDIO SYSTEM KIT 200 S2
THIS KIT INCLUDES
x2 woofer S8.100
8″ (200 mm) speaker
– Maximum power: 300 W / Nominal power: 150 W
– Frequency response 50 Hz – 3.8 KHz
– Impedance 2 Ohms
Cast aluminum basket – Ultra-rigid carbon fiber cone – NBR surround – Long-life “Conex” damper – 38 mm voice coil on fiberglass support – Oversized 100 mm x 20 mm magnetic motor – Gold-plated terminal block.
x2 tweeter T25S
– 5 ohms, Neo magnet
– 25 mm (1″) textile dome diaphragm
– Precision machined aluminum front panel
– Sound transparent protective grille
x2 filtre BFT01
6dB/octave high-pass filter
Tweeter level adjustable to 0 dB or attenuated to -3 dB
TECHNICAL DATA SHEETS :
| TYPE | 2 separate lanes |
|---|---|
| GAMME | Signature |
| PRODUIT | Kit |
| TAILLE | 200mm (8") |
