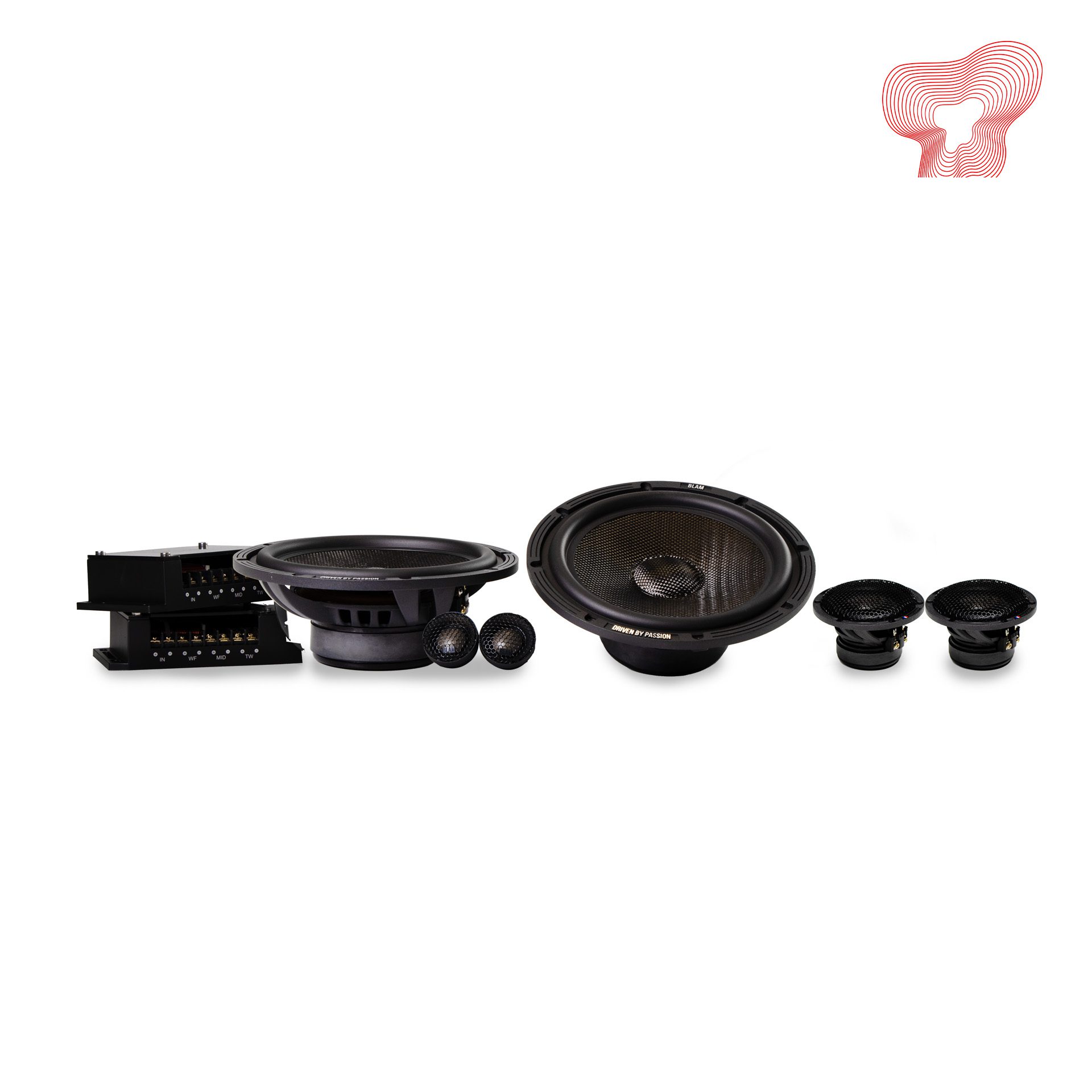

THREE SEPARATE WAY KIT 200 S3MG
THIS KIT INCLUDES

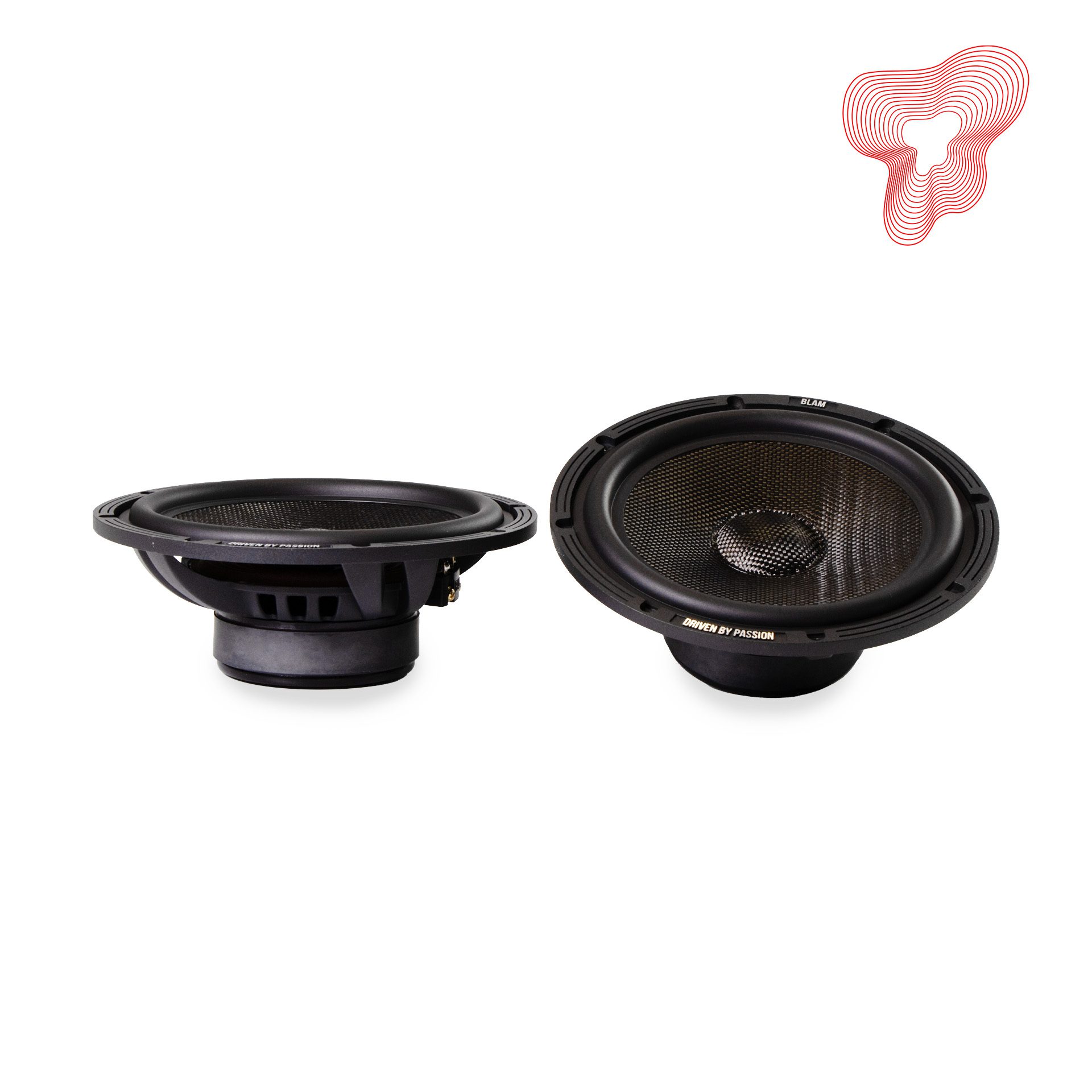

x2 woofer S8.100
8″ (200 mm) speaker
– Maximum power: 300 W / Nominal power: 150 W
– Frequency response 50 Hz – 3.8 KHz
– Impedance 2 Ohms
Cast aluminum basket – Ultra-rigid carbon fiber cone – NBR surround – Long-life “Conex” damper – 38 mm voice coil on fiberglass support – Oversized 100 mm x 20 mm magnetic motor – Gold-plated terminal block.

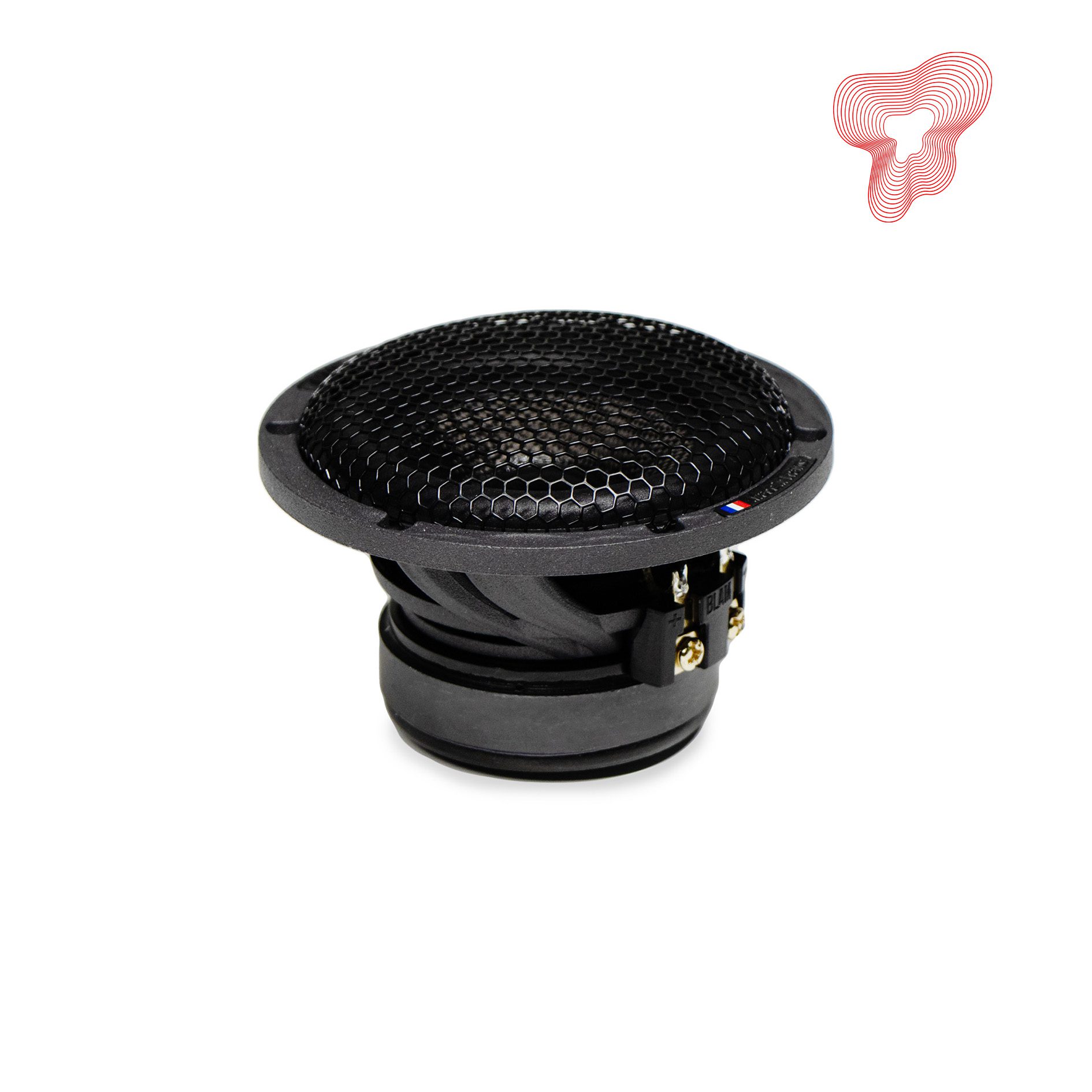

x2 Medium S 3.55
Extended frequency, can be used in full range
Frequency response 200 Hz – 27 KHz
Impedance 3 Ω
Die-cast aluminum basket – Ultra-stiff carbon fiber cone – NBR surround – Long-life “conex” spider – 20mm voice coil, fiberglass support – Oversized 55mm x 10mm magnetic motor – Machined aluminum phase plug – Gold-plated terminal.

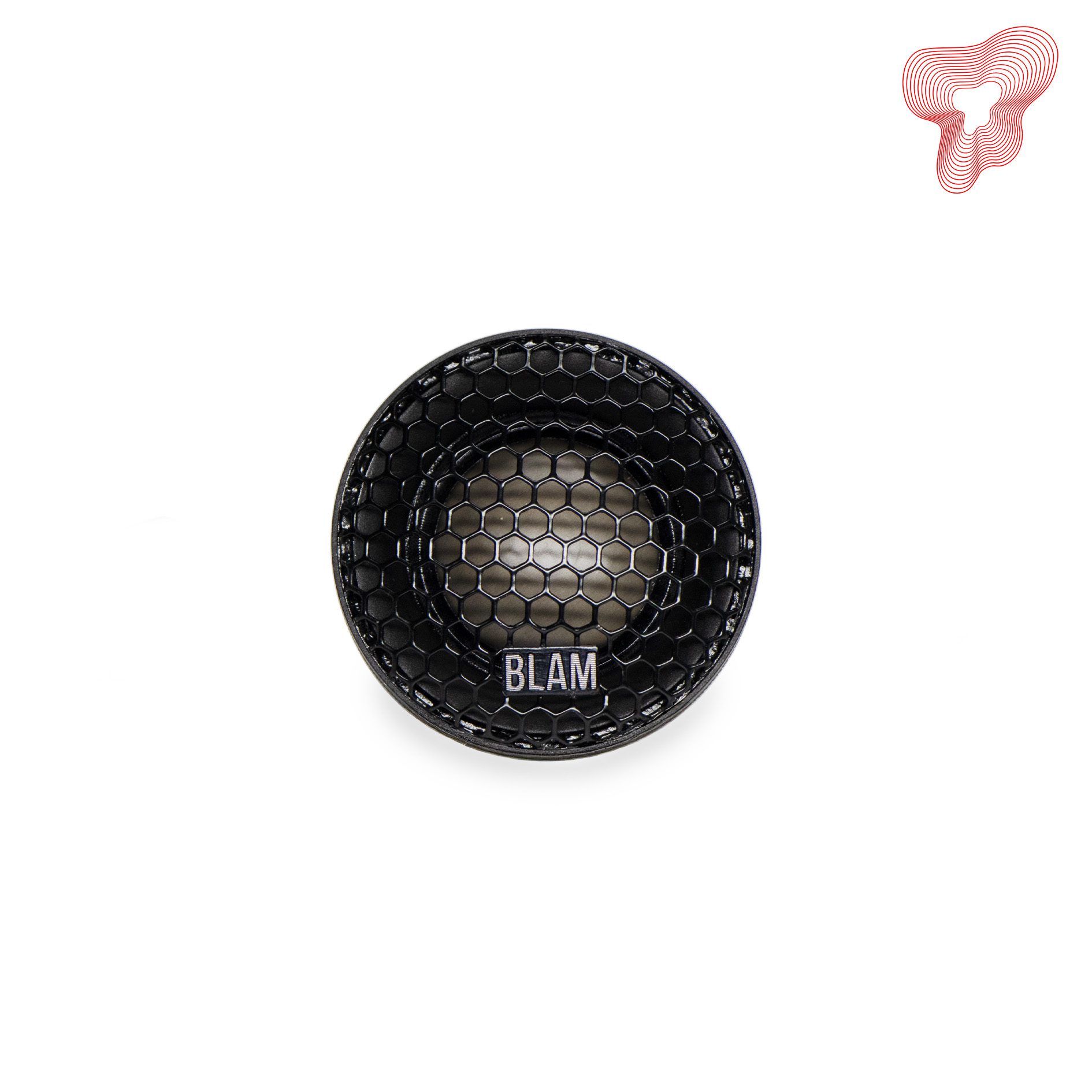

X2 TWEETER T25MG
25mm (1”) pure magnesium dome tweeter
High efficiency N38 neodymium magnet
High precision machined aluminum front plate
Transparent sound protection grilleAimant en néodyme à haut rendement N38
Plaque avant en aluminium usinée de haute précision
Grille de protection transparente pour le son
CROSSOVER BX03
TECHNICAL DATA SHEETS :
Looking for Blam audio products?
Find our resellers and distributors
around the world.
THREE SEPARATE WAY KIT 200 S3MG
THIS KIT INCLUDES
x2 woofer S8.100
8″ (200 mm) speaker
– Maximum power: 300 W / Nominal power: 150 W
– Frequency response 50 Hz – 3.8 KHz
– Impedance 2 Ohms
Cast aluminum basket – Ultra-rigid carbon fiber cone – NBR surround – Long-life “Conex” damper – 38 mm voice coil on fiberglass support – Oversized 100 mm x 20 mm magnetic motor – Gold-plated terminal block.
x2 Medium S 3.55
Extended frequency, can be used in full range
Frequency response 200 Hz – 27 KHz
Impedance 3 Ω
Die-cast aluminum basket – Ultra-stiff carbon fiber cone – NBR surround – Long-life “conex” spider – 20mm voice coil, fiberglass support – Oversized 55mm x 10mm magnetic motor – Machined aluminum phase plug – Gold-plated terminal.
X2 TWEETER T25MG
25mm (1”) pure magnesium dome tweeter
High efficiency N38 neodymium magnet
High precision machined aluminum front plate
Transparent sound protection grilleAimant en néodyme à haut rendement N38
Plaque avant en aluminium usinée de haute précision
Grille de protection transparente pour le son
CROSSOVER BX03
TECHNICAL DATA SHEETS :
| TYPE | 3 separate lanes |
|---|---|
| GAMME | Signature |
| PRODUIT | Kit |
| TAILLE | 200mm (8") |
