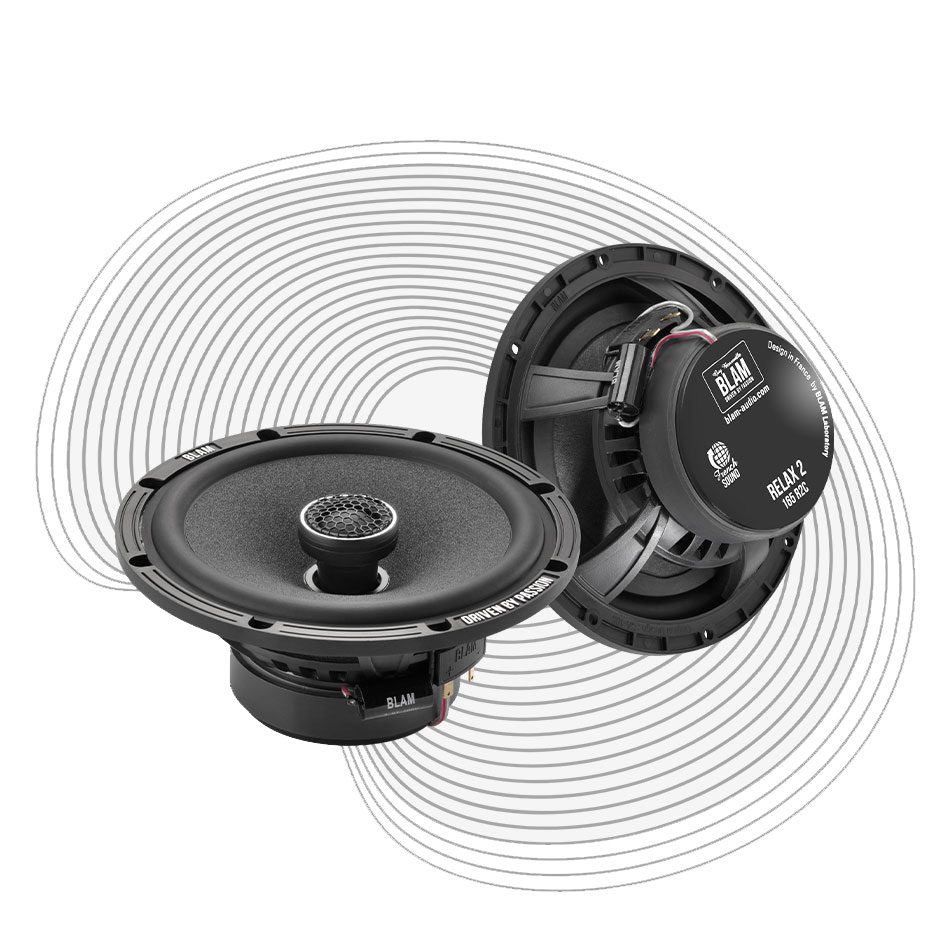

165RC coaxial kit
COAXIAL KIT HIGH PERFORMANCE 165 mm
Technical details
This kit consists of two 165mm (6.5″) woofers, two 20mm (3/4″) coaxial soft dome tweeters and two integrated 6dB/octave crossovers.
High efficiency 2-way coaxial system
165 mm woofer
Max Power 150 W – Nominal Power 75 W
Frequency response 60 Hz – 25 kHz
Sensitivity 95 dB – Impedance 2 Ω
Composition
2 Woofers :
Glass fiber reinforced composite salad bowl
High quality treated cellulose pulp membrane
Peripheral butyl suspension
Spider long life ” Conex
25 mm coil on Kapton support
Magnetic motor 85 mm x 17 mm
Thick magnetic circuit (5 mm)
2 coaxial tweeters
High quality 20 mm soft dome tweeter
N38 neodymium motor
Integrated 6dB/octave filter
Accessories included:
Fixing screws
Instructions for use
Looking for Blam audio products?
Find our resellers and distributors
around the world.
COAXIAL KIT HIGH PERFORMANCE 165 mm
Technical details
This kit consists of two 165mm (6.5″) woofers, two 20mm (3/4″) coaxial soft dome tweeters and two integrated 6dB/octave crossovers.
High efficiency 2-way coaxial system
165 mm woofer
Max Power 150 W – Nominal Power 75 W
Frequency response 60 Hz – 25 kHz
Sensitivity 95 dB – Impedance 2 Ω
Composition
2 Woofers :
Glass fiber reinforced composite salad bowl
High quality treated cellulose pulp membrane
Peripheral butyl suspension
Spider long life ” Conex
25 mm coil on Kapton support
Magnetic motor 85 mm x 17 mm
Thick magnetic circuit (5 mm)
2 coaxial tweeters
High quality 20 mm soft dome tweeter
N38 neodymium motor
Integrated 6dB/octave filter
Accessories included:
Fixing screws
Instructions for use
GAMME | Relax |
---|---|
TYPE | Coaxial |
TAILLE | 165mm |
