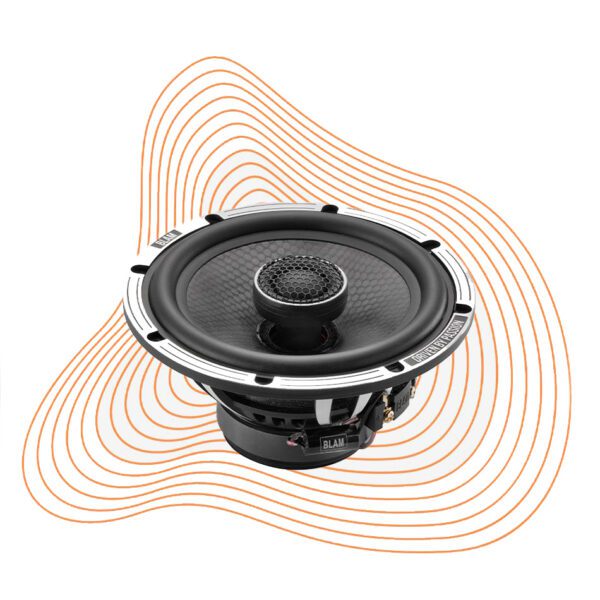

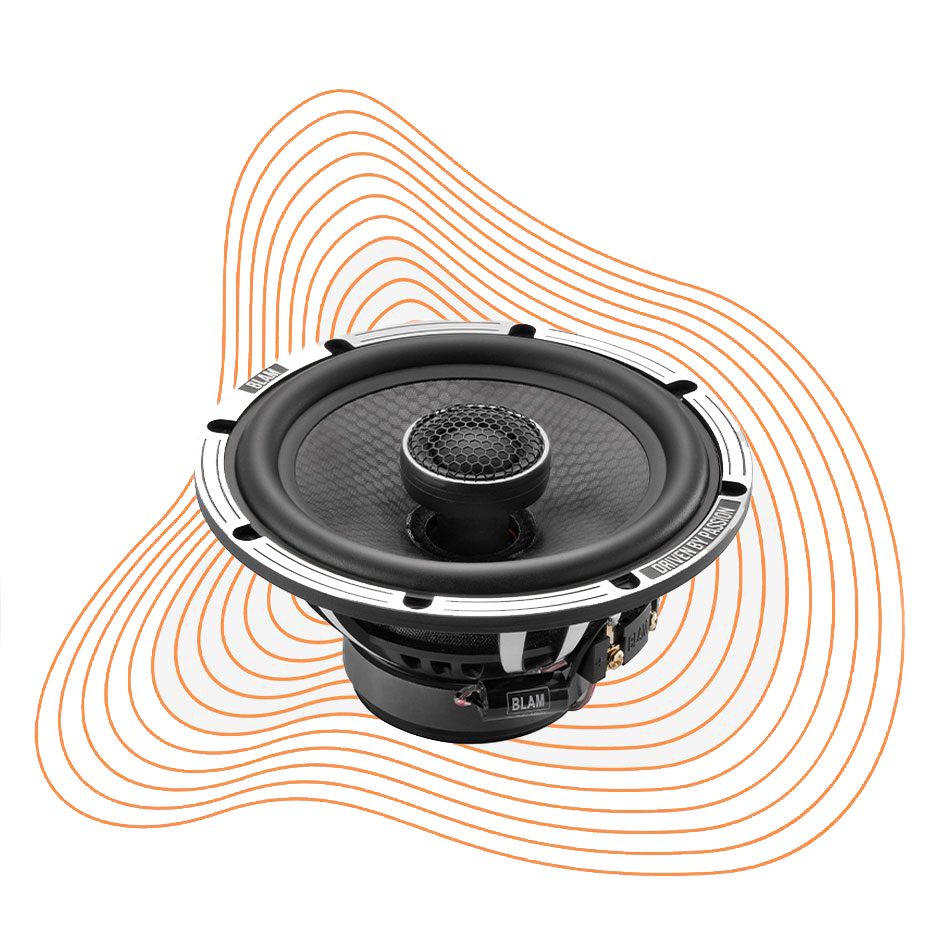

Kit coaxial L165C – Acoustic

HIGH-FIDELITY COAXIAL KIT

With its “French Sound” design, the L165C faithfully reproduces acoustic instruments and the emotions of voices for a particularly natural and captivating sound.

Its light and rigid composite diaphragm combined with a 28 mm diameter coil gives it dynamism and detail that brings the recording to life. The system is forgotten to make room for the music.

Technical details

This kit includes two 165mm (6.5”) woofers, with two 25mm (1”) coaxial soft-dome tweeters, two 6dB/octave audiophile integrated high-pass filters

2-way high-fidelity coaxial system
165 mm woofer
Max. power 140 W – Nominal power 70 W
Frequency response 55 Hz – 25 kHz
Sensitivity 92 dB – Impedance 2 Ω

Also available in BLACK Edition (black woofers and tweeters)

Composition

• 2 Woofers: L165C
  165 mm woofer
  Maximum power 140 W – Nominal power 70 W
  Frequency response 55 Hz – 9 kHz
  Sensitivity 92.8 dB – Impedance 2 Ω
  Installation depth 71 mm

Molded and machined aluminum saladier – Fiberglass and epoxy resin composite diaphragm – Butyl perimeter suspension
Spider long life “Conex” – 28 mm coil on kapton support – 80 mm x 15 mm magnetic motor – Thick magnetic circuit (5 mm)

• 2 coaxial tweeters :
  High-quality 25 mm coaxial soft-dome tweeter
  N38 neodymium motor

Integrated high-pass 6 dB/octave crossovers

Supplied accessories :
Fixing screws
Instructions for use

L165C DATA SHEET

1 file(s) 172.78 KB

Download
