COAXIAL KIT
Integrated 6dB/octave crossover
Technical specification

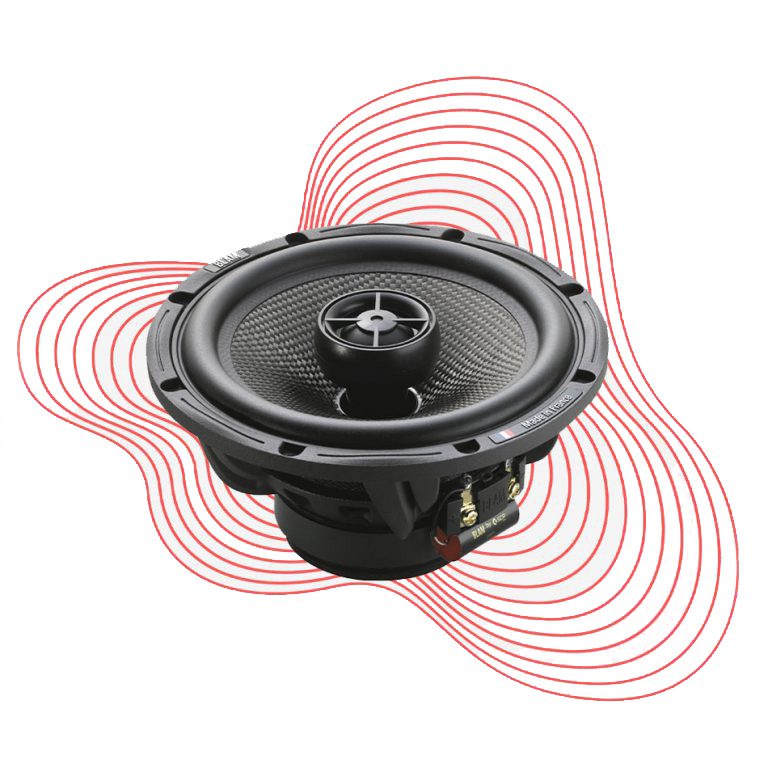

WS 6.80C HIGH SENSITIVITY WOOFER
6,5” (165 mm) woofer – 25 mm tweeter
Max power 120 W/ Nominal 60 W
Frequency response 60 Hz – 30 kHz
Sensitivity 94.3 dB – Impedance 2 Ω
Mounting depth 76.5 mm
Composition
Die cast aluminum basket – Ultra rigid carbon fiber membrane – IIR peripheral surround – Long life “conex” spider – 28 mm voice coil on fiberglass former – 80 x 17 mm magnetic motor – Machined aluminum phase plug – Gold plated terminal.
Looking for Blam audio products? Find our resellers and distributors around the world.
COAXIAL KIT
Integrated 6dB/octave crossover
Technical specification
WS 6.80C HIGH SENSITIVITY WOOFER
6,5” (165 mm) woofer – 25 mm tweeter
Max power 120 W/ Nominal 60 W
Frequency response 60 Hz – 30 kHz
Sensitivity 94.3 dB – Impedance 2 Ω
Mounting depth 76.5 mm
Composition
Die cast aluminum basket – Ultra rigid carbon fiber membrane – IIR peripheral surround – Long life “conex” spider – 28 mm voice coil on fiberglass former – 80 x 17 mm magnetic motor – Machined aluminum phase plug – Gold plated terminal.
| GAMME | Signature |
|---|---|
| TYPE | Coaxial |
| TAILLE | 165mm |
