Kit L165A – Acoustic

2-WAY SPEAKER SYSTEM

With its “French Sound” design, the L165A faithfully reproduces acoustic instruments and the emotions of voices for a particularly natural and captivating sound.

Its light and rigid composite diaphragm combined with a 28 mm diameter coil gives it dynamism and detail that brings the recording to life. The system is forgotten to make room for the music.

Technical specification

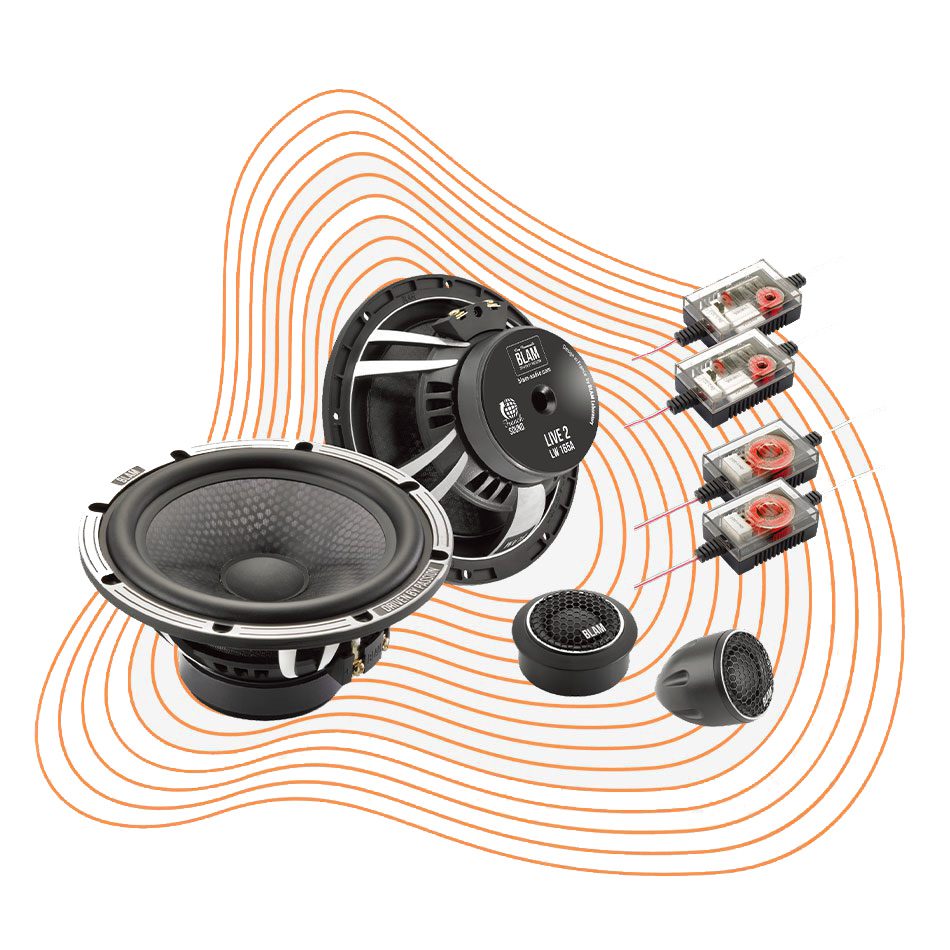

This kit is composed of two 165 mm (6,5”) woofers, two 25 mm (1”) soft dome tweeters, two 12 db/octave low-pass audiophile crossovers and two 12 dB/octave high-pass audiophile crossovers, adapted for bi-amplification.

2-channel high-fidelity system
165 mm woofer
Max Power 140 W – Nominal Power 70 W
Frequency response 55 Hz – 25 kHz
Sensitivity 92 dB – Impedance 2 Ω

Available in 2 versions:
L165A (complete kit with crossovers)
L165A Active (without crossover)

Also available in BLACK Edition (black woofers and tweeters)

Composition

L165A HIGH-FIDELITY WOOFER
165 mm (6.5″) woofer
Max power 140 W / Nominal power 70 W
Frequency response 55 Hz – 9 kHz
Sensitivity 92.8 dB – Impedance 2 Ω
Moulded and machined aluminium basket – Epoxy resin and fiberglass membrane – Butyl peripheral surround – “Conex” long-life spider – 28 mm voice coil on kapton former – 80 mm x 15 mm magnetic motor – 5 mm thick magnetic circuit

LT25 HIGH-QUALITY TWEETER
High quality 25 mm soft dome tweeter
Maximum power 100 W – Nominal power 15 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 91.6 dB – Impedance 3 Ω
High-efficiency N38 neodymium motor

BFW02 HIGH QUALITY CROSSOVER
Low pass 12 dB/octave

BFT02 HIGH QUALITY CROSSOVER
High pass 12 dB/octave
Tweeter level adjustable to +3 dB, 0 dB or attenuated to -3 dB

Supplied accessories:
Mounting screws
Mounting accessories for tweeters
User manual
