Kit L165P – Power
The BLAM L165P POWER kit is ideal for lovers of rock and electro sounds. Designed to deliver deep bass and powerful sound, it offers an immersive audio experience. The high-efficiency system includes two 165 mm woofers and two 25 mm soft dome tweeters, with audiophile-grade low-pass and high-pass filters, suitable for bi-amplification. With a maximum power of 180 W and a frequency response of 50 Hz to 25 kHz, it ensures powerful yet controlled sound. It is available in the L165P (complete kit with filters) and L165P Active (without filters) versions, as well as in the Black Edition. Accessories included: fixing screws, tweeter mounting accessories and instructions.
2-WAY SEPARATE LOUDSPEAKER SYSTEM
For those seeking the satisfaction of a speaker system with visceral impact and dynamics, the new BLAM L165P is for you.
Indeed, as its name indicates, the L165P POWER has been specially designed for those who want to fully enjoy their favorite rock or electro tracks.
Combined with a powerful amplifier, you will get a high sound level with deep but still well controlled bass that will allow you to relive the emotions of your favorite concerts.
Like all BLAM products, this line will allow you to access our “French Sound”, which not only enhances melodies and basses but also vocal melodies.
Technical details

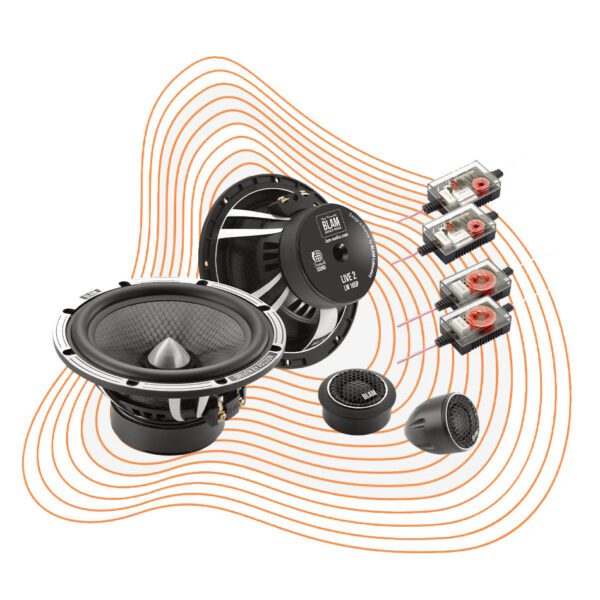

This kit includes two 165 mm (6.5″) woofers, two 25 mm (1″) soft-dome tweeters, two 12db/octave audiophile low-pass filters and two 12dB/octave audiophile high-pass filters, suitable for bi-amplification.
High efficiency system 2 separate ways
165 mm woofer
Maximum power 180 W – Nominal power 90 W
Frequency response 50 Hz – 25 kHz
Sensitivity 91.5 dB – Impedance 3 Ω
Available in 2 versions:
L165P (complete kit with filters)
L165P Active (without filter)
Also available in BLACK Edition (black woofers and tweeters)
Composition
L165P WOOFER HIGH POWER
Woofer 165 mm (6.5″)
Maximum power 180 W / Nominal power 90 W
Frequency response 50 Hz – 8 kHz
Sensitivity 91.7 dB – Impedance 3 Ω
Machined aluminium basket – Epoxy resin and fiberglass membrane – Butyl surround – “Conex” long life spider – 32 mm voice coil on Kapton former – 85 mm x 20 mm magnetic motor – 5 mm thick magnetic circuit
LT25 HIGH-QUALITY TWEETER
High-quality 25 mm soft dome tweeter
Maximum power 100 W – Nominal power 15 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 91.6 dB – Impedance 3 Ω
High efficiency neodymium motor N38
BFW02 FILTRE HIGH QUALITY
Low pass 12 dB/octave
Cut-off frequency 4 kHz
BFT02 FILTRE HIGH QUALITY
12 dB/octave high-pass
Tweeter level adjustable to +3 dB, 0 dB or attenuated to -3 dB
Cut-off frequency: 3.5 kHz
Supplied accessories :
Mounting screws
Mounting accessories for tweeters
Operating instructions
Looking for Blam audio products?
Find our resellers and distributors
around the world.
2-WAY SEPARATE LOUDSPEAKER SYSTEM
For those seeking the satisfaction of a speaker system with visceral impact and dynamics, the new BLAM L165P is for you.
Indeed, as its name indicates, the L165P POWER has been specially designed for those who want to fully enjoy their favorite rock or electro tracks.
Combined with a powerful amplifier, you will get a high sound level with deep but still well controlled bass that will allow you to relive the emotions of your favorite concerts.
Like all BLAM products, this line will allow you to access our “French Sound”, which not only enhances melodies and basses but also vocal melodies.
Technical details
This kit includes two 165 mm (6.5″) woofers, two 25 mm (1″) soft-dome tweeters, two 12db/octave audiophile low-pass filters and two 12dB/octave audiophile high-pass filters, suitable for bi-amplification.
High efficiency system 2 separate ways
165 mm woofer
Maximum power 180 W – Nominal power 90 W
Frequency response 50 Hz – 25 kHz
Sensitivity 91.5 dB – Impedance 3 Ω
Available in 2 versions:
L165P (complete kit with filters)
L165P Active (without filter)
Also available in BLACK Edition (black woofers and tweeters)
Composition
L165P WOOFER HIGH POWER
Woofer 165 mm (6.5″)
Maximum power 180 W / Nominal power 90 W
Frequency response 50 Hz – 8 kHz
Sensitivity 91.7 dB – Impedance 3 Ω
Machined aluminium basket – Epoxy resin and fiberglass membrane – Butyl surround – “Conex” long life spider – 32 mm voice coil on Kapton former – 85 mm x 20 mm magnetic motor – 5 mm thick magnetic circuit
LT25 HIGH-QUALITY TWEETER
High-quality 25 mm soft dome tweeter
Maximum power 100 W – Nominal power 15 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 91.6 dB – Impedance 3 Ω
High efficiency neodymium motor N38
BFW02 FILTRE HIGH QUALITY
Low pass 12 dB/octave
Cut-off frequency 4 kHz
BFT02 FILTRE HIGH QUALITY
12 dB/octave high-pass
Tweeter level adjustable to +3 dB, 0 dB or attenuated to -3 dB
Cut-off frequency: 3.5 kHz
Supplied accessories :
Mounting screws
Mounting accessories for tweeters
Operating instructions
GAMME | Live |
---|---|
TYPE | 2 separate lanes |
TAILLE | 165mm (6") |
PRODUIT | Kit |
