Kit L165S – Solo

2-WAY COMPONENT SPEAKER SYSTEM

You want to enjoy our “French Sound” but the available locations are limited in depth, the L165S SOLO kit is made for you.
Thanks to its ultra-powerful and very compact neodymium motor, its recess depth does not exceed 62 mm.
Indeed, we have adapted it for small spaces to allow you to fully enjoy your favorite playlists during your journeys
Despite its shallow depth, the L165S Solo delivers a powerful and precise sound that highlights both bass and vocal melodies.

Technical specification

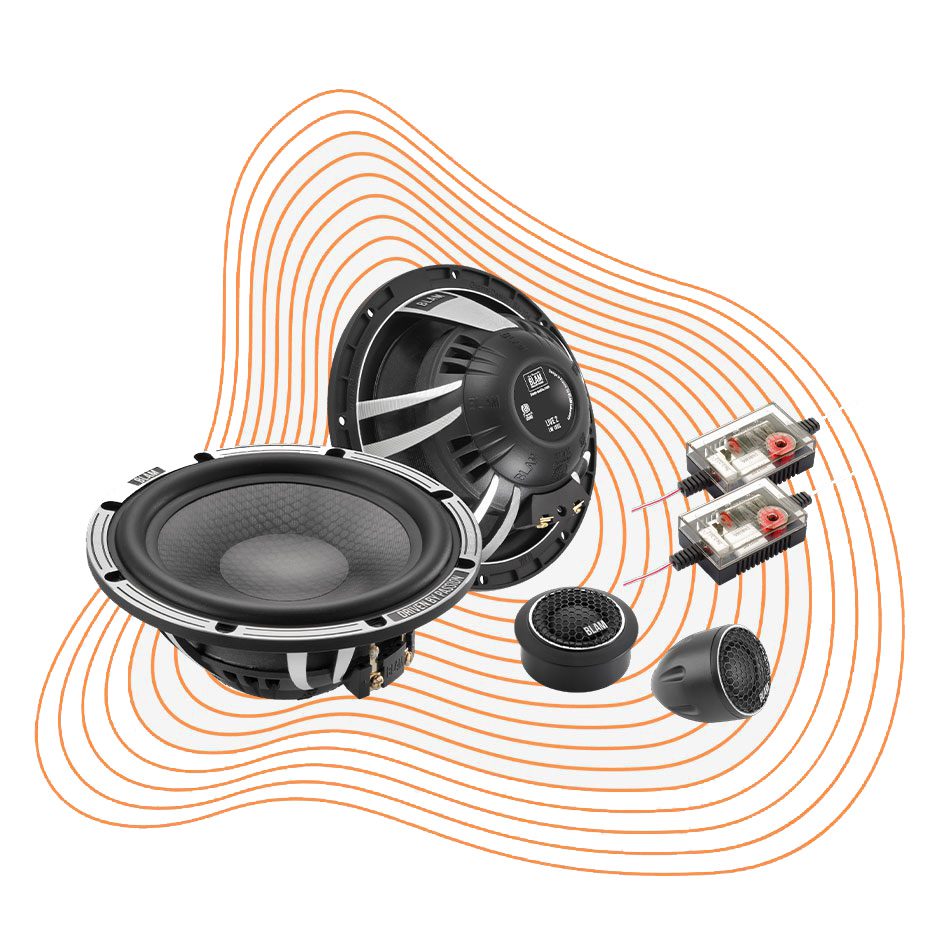

This kit consists of two 165 mm (6.5″) woofers, two 25 mm (1″) soft dome tweeters and two 12 dB/octave high-pass audiophile crossovers.

Ultra flat 2-way separate system
165 mm woofer
Maximum power 140 W – Nominal power 70 W
Frequency response 55 Hz – 25 kHz
Sensitivity 90.6 dB – Impedance 3 Ω
Built-in depth 62 mm

Disponible en 2 versions :
L165S (complete kit with filters)
L165S Active (without filter)

Also available in BLACK Edition (black woofers and tweeters)

Composition

L165S WOOFER ULTRA FLAT
Woofer 165 mm (6.5″)
Maximum power 140 W / Nominal power 70 W
Frequency response 55 Hz – 8 kHz
Sensitivity 90.6 dB – Impedance 3 Ω
Machined aluminium basket – Epoxy resin and fiberglass membrane – Butyl surround – “Conex” long life spider – 32 mm voice coil on Kapton former – 31 mm x 8 mm magnetic motor – 5 mm thick magnetic circuit

LT25 HIGH-QUALITY TWEETER
High-quality 25 mm soft dome tweeter
Maximum power 100 W – Nominal power 15 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 91.6 dB – Impedance 3 Ω
High-efficiency N38 neodymium motor

BFT02 HIGH-QUALITY FILTER
12 dB/octave high-pass filter
Tweeter level adjustable to +3 dB, 0 dB or attenuated to -3 dB

Supplied accessories :
Mounting screws
Mounting accessories for tweeters
Operating instructions

L165S DATA SHEET

1 file(s) 365.52 KB

Download
