TWO-WAY COMPONENT SPEAKER SYSTEM
Technical specification

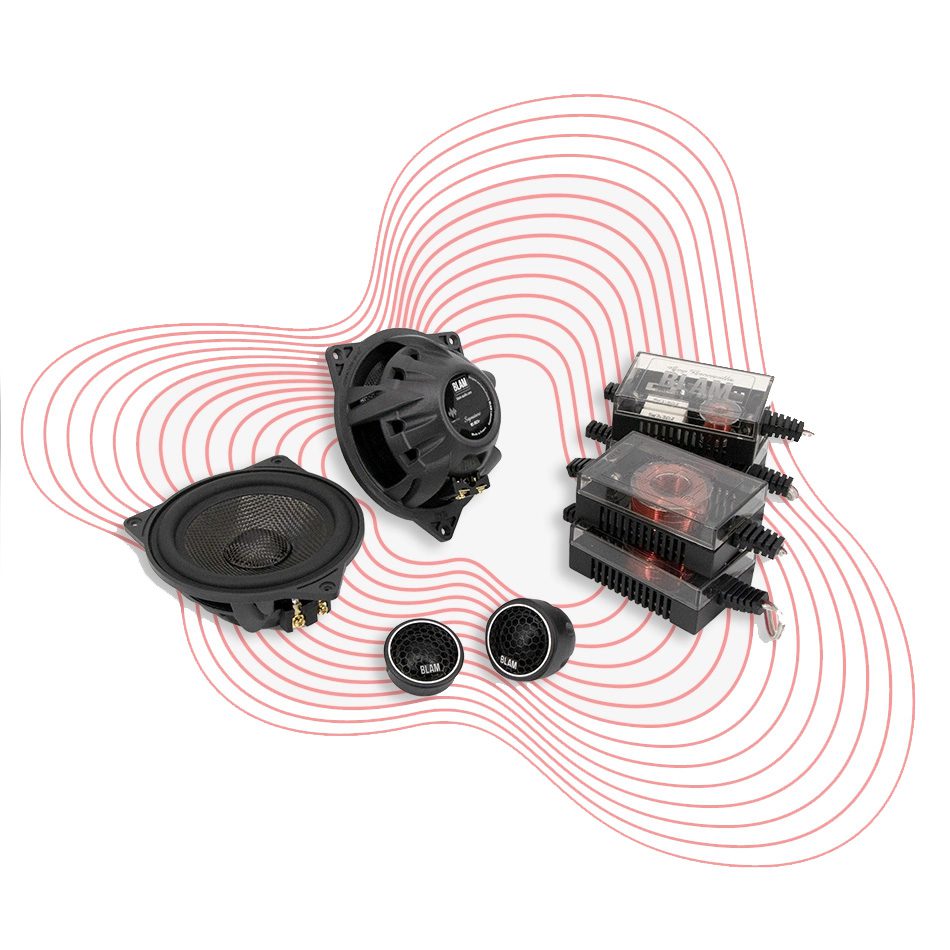

Component kit dedicated to Mercedes & BMW (with adapter spacers) containing two 100 mm (4″) midrange speaker, two 20 mm (3/4″) soft-dome tweeters and four external crossovers.
Composition

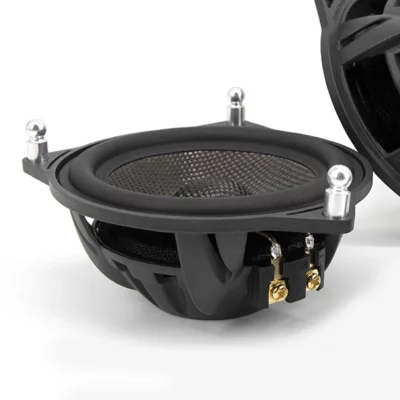

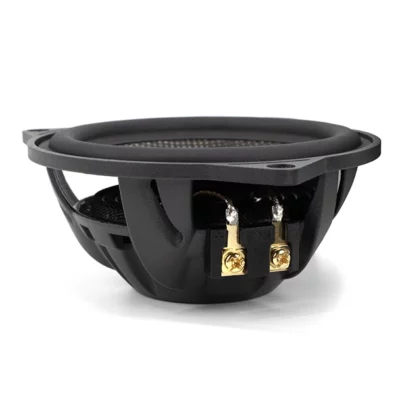

MS 4N 24 HIGH-FIDELITY MIDRANGE
100 mm (4″) ultra-flat midrange
Max power 120W/ RMS power 60W
Frequency response 95 Hz – 9kHz
Sensitivity 88dB – Impedance 3 Ω
Installation depth 40.5 mm

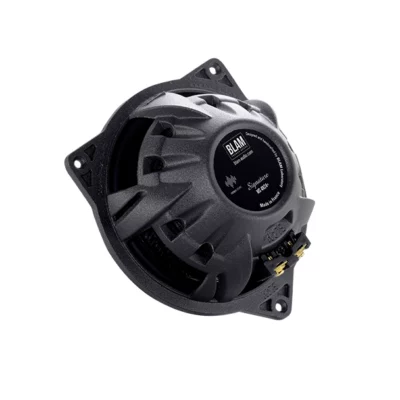

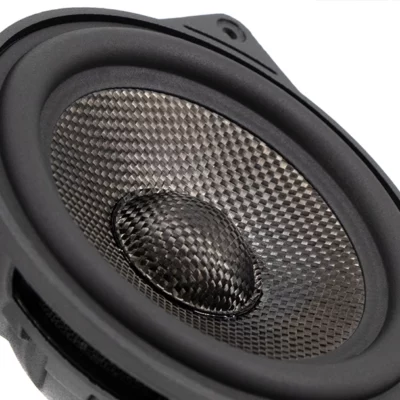

Die-cast aluminium basket – Ultra rigid carbon fiber membrane – Butyl surround – Long life “conex” spider – 25 mm voice coil on fiberglass former – Ultra powerful neodymium magnet (N38H) – Machined T-Yoke
TS 20 HR HIGH-RESOLUTION TWEETER
20 mm (3/4″) soft-dome diaphragm
Frequency response 2.5 kHz- 43 kHz
Sensitivity 88.3 dB – Impedance 5 Ω
Mounting depth 12.5 mm
Compact mounting dimensions – High efficiency magnet (N38H neodymium) – Ferrofluid for high power handling – Angled support included
BFT 01 HIGH-QUALITY FILTER
12 dB/octave high-pass filter
Adjustable tweeter level +3 dB, 0 dB or -3 dB
Crossover frequency 4.5 kHz
BFW 01 HIGH-QUALITY FILTER
Low-pass filter 6 dB/octave
Crossover frequency 3.5 kHz
Looking for Blam audio products?
Find our resellers and distributors
around the world.
TWO-WAY COMPONENT SPEAKER SYSTEM
Technical specification
Component kit dedicated to Mercedes & BMW (with adapter spacers) containing two 100 mm (4″) midrange speaker, two 20 mm (3/4″) soft-dome tweeters and four external crossovers.
Composition
MS 4N 24 HIGH-FIDELITY MIDRANGE
100 mm (4″) ultra-flat midrange
Max power 120W/ RMS power 60W
Frequency response 95 Hz – 9kHz
Sensitivity 88dB – Impedance 3 Ω
Installation depth 40.5 mm
Die-cast aluminium basket – Ultra rigid carbon fiber membrane – Butyl surround – Long life “conex” spider – 25 mm voice coil on fiberglass former – Ultra powerful neodymium magnet (N38H) – Machined T-Yoke
TS 20 HR HIGH-RESOLUTION TWEETER
20 mm (3/4″) soft-dome diaphragm
Frequency response 2.5 kHz- 43 kHz
Sensitivity 88.3 dB – Impedance 5 Ω
Mounting depth 12.5 mm
Compact mounting dimensions – High efficiency magnet (N38H neodymium) – Ferrofluid for high power handling – Angled support included
BFT 01 HIGH-QUALITY FILTER
12 dB/octave high-pass filter
Adjustable tweeter level +3 dB, 0 dB or -3 dB
Crossover frequency 4.5 kHz
BFW 01 HIGH-QUALITY FILTER
Low-pass filter 6 dB/octave
Crossover frequency 3.5 kHz
| GAMME | Signature |
|---|---|
| TYPE | 2 separate lanes |
| TAILLE | 100mm |
