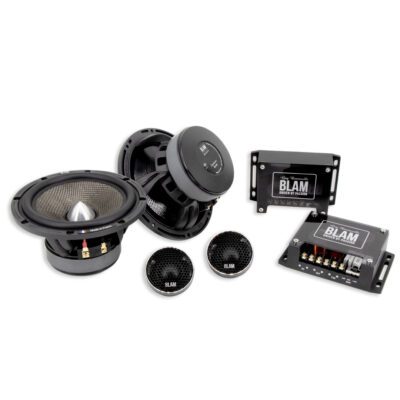

2-WAY COMPONENT SPEAKER SYSTEM
Technical specification

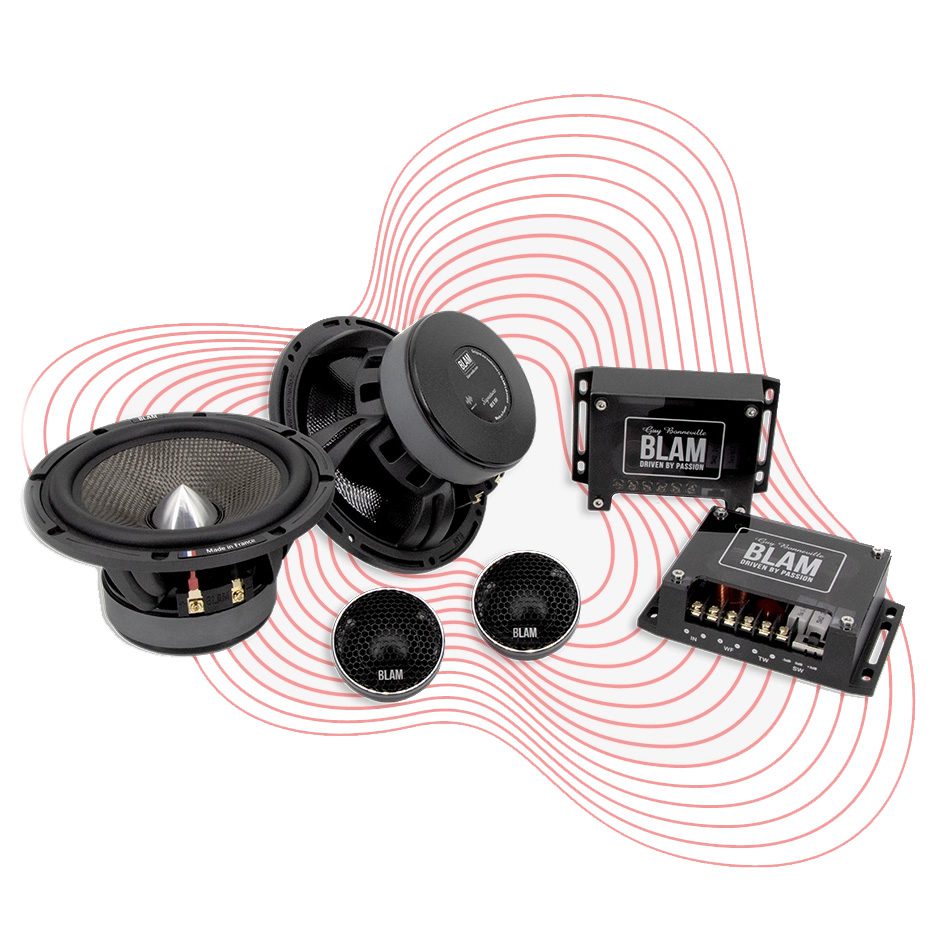

This kit contains two 165 mm (6.5″) woofers, two 25 mm (1.1″) pure magnesium tweeters and two 12/12 dB/octave external filters with adjustable tweeter level: +3 dB 0 dB or -3 dB.
Composition

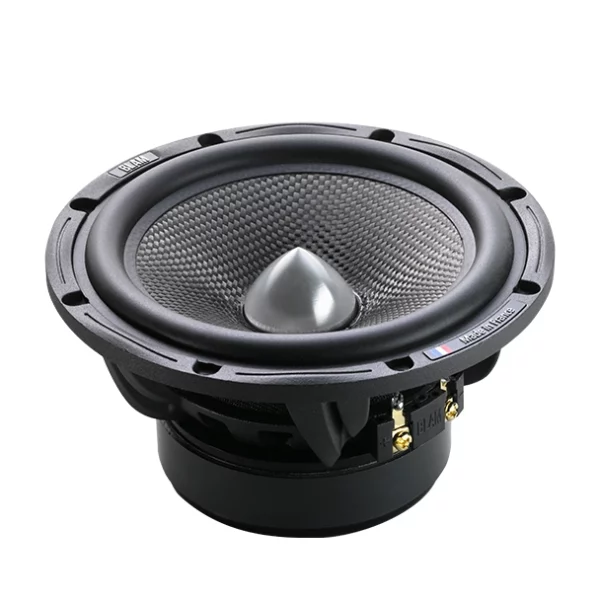

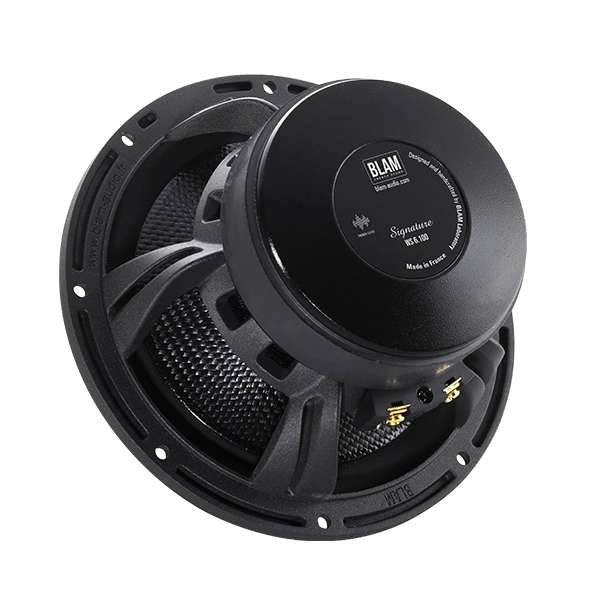

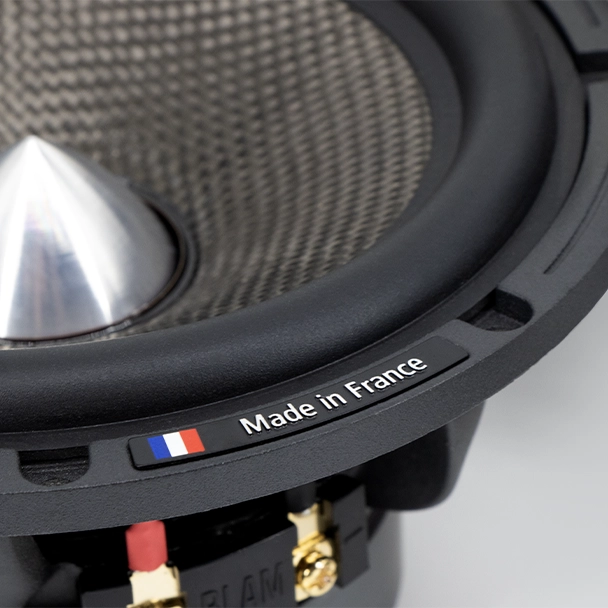

WS 6.100 HIGH POWER WOOFER
6,5” (165 mm) woofer
Max Power 250 W / Nominal 125 W
Frequency response 50 Hz – 5 kHz
Sensitivity 93.2 dB – Impedance 2 Ω
Mounting depth 80.2 mm

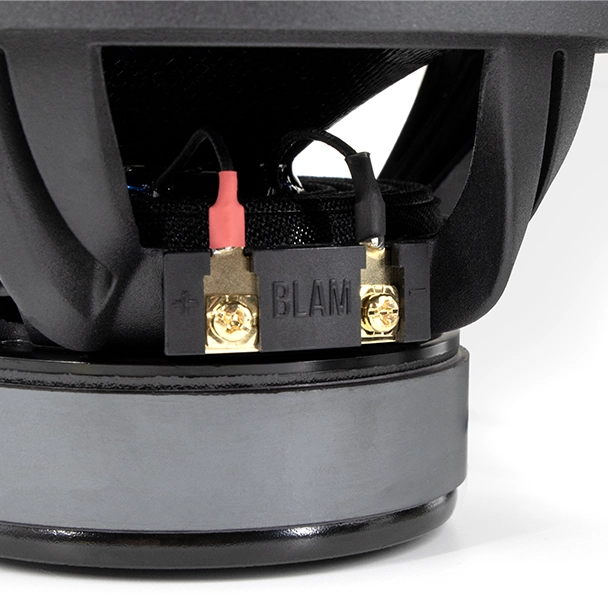

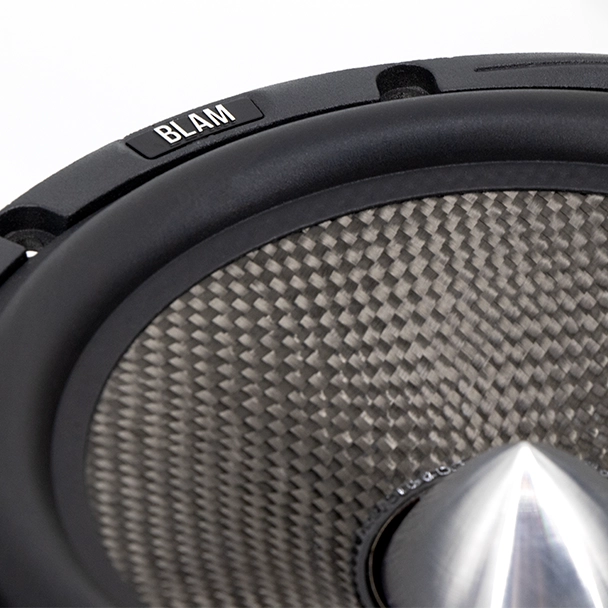

Die-cast aluminum basket – Ultra rigid carbon fiber membrane – NBR surround – Long life spider “conex” – 38 mm voice coil on fiberglass former – Oversized 100×20 mm magnetic motor – Machined aluminum phase plug – Gold plated terminal.

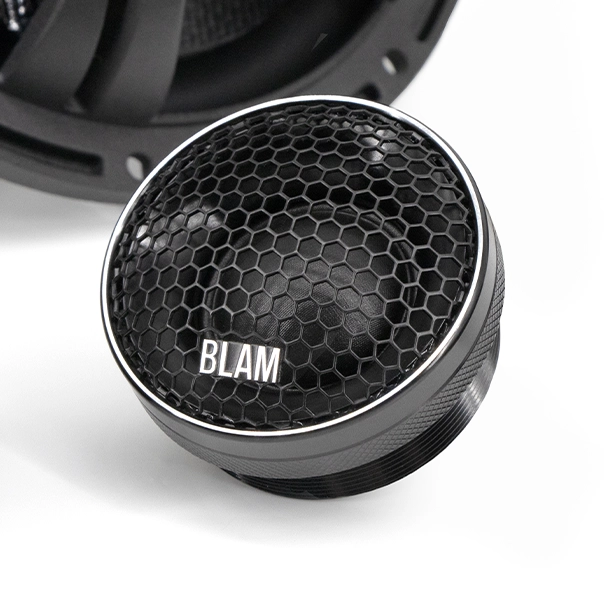

TS 28 HIGH-SENSITIVITY TWEETER
28 mm (1″) soft-dome tweeter
Maximum power 100 W / Nominal power 15 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 93 dB – Impedance 3 Ω
Mounting depth 21 mm
High-efficiency neodymium magnet (N38 neodymium) – Ferrofluid for high power handling – Precision-machined aluminum faceplate – Transparent noise protection grille

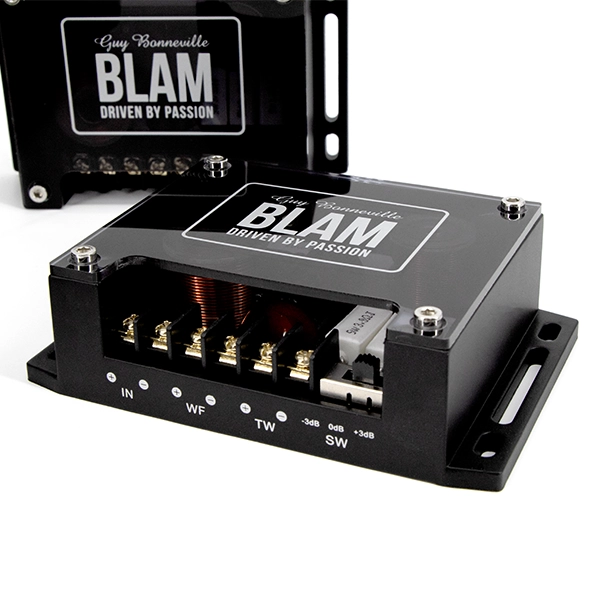

BFX 02 AUDIOPHILE COMPONENT CROSSOVER
2-way 12/12 dB/octave crossover
Adjustable tweeter level +3 dB, 0 dB or -3 dB
Crossover frequency: 4 kHz
High quality metallized polyester capacitors – Low resistance air coils.
Looking for Blam audio products? Find our resellers and distributors around the world.
2-WAY COMPONENT SPEAKER SYSTEM
Technical specification
This kit contains two 165 mm (6.5″) woofers, two 25 mm (1.1″) pure magnesium tweeters and two 12/12 dB/octave external filters with adjustable tweeter level: +3 dB 0 dB or -3 dB.
Composition
WS 6.100 HIGH POWER WOOFER
6,5” (165 mm) woofer
Max Power 250 W / Nominal 125 W
Frequency response 50 Hz – 5 kHz
Sensitivity 93.2 dB – Impedance 2 Ω
Mounting depth 80.2 mm
Die-cast aluminum basket – Ultra rigid carbon fiber membrane – NBR surround – Long life spider “conex” – 38 mm voice coil on fiberglass former – Oversized 100×20 mm magnetic motor – Machined aluminum phase plug – Gold plated terminal.
TS 28 HIGH-SENSITIVITY TWEETER
28 mm (1″) soft-dome tweeter
Maximum power 100 W / Nominal power 15 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 93 dB – Impedance 3 Ω
Mounting depth 21 mm
High-efficiency neodymium magnet (N38 neodymium) – Ferrofluid for high power handling – Precision-machined aluminum faceplate – Transparent noise protection grille
BFX 02 AUDIOPHILE COMPONENT CROSSOVER
2-way 12/12 dB/octave crossover
Adjustable tweeter level +3 dB, 0 dB or -3 dB
Crossover frequency: 4 kHz
High quality metallized polyester capacitors – Low resistance air coils.
| GAMME | Signature |
|---|---|
| TYPE | 2 separate lanes |
| TAILLE | 165mm |
