Kit S 165.100 MG

2-WAY COMPONENT SPEAKER SYSTEM

Technical specification

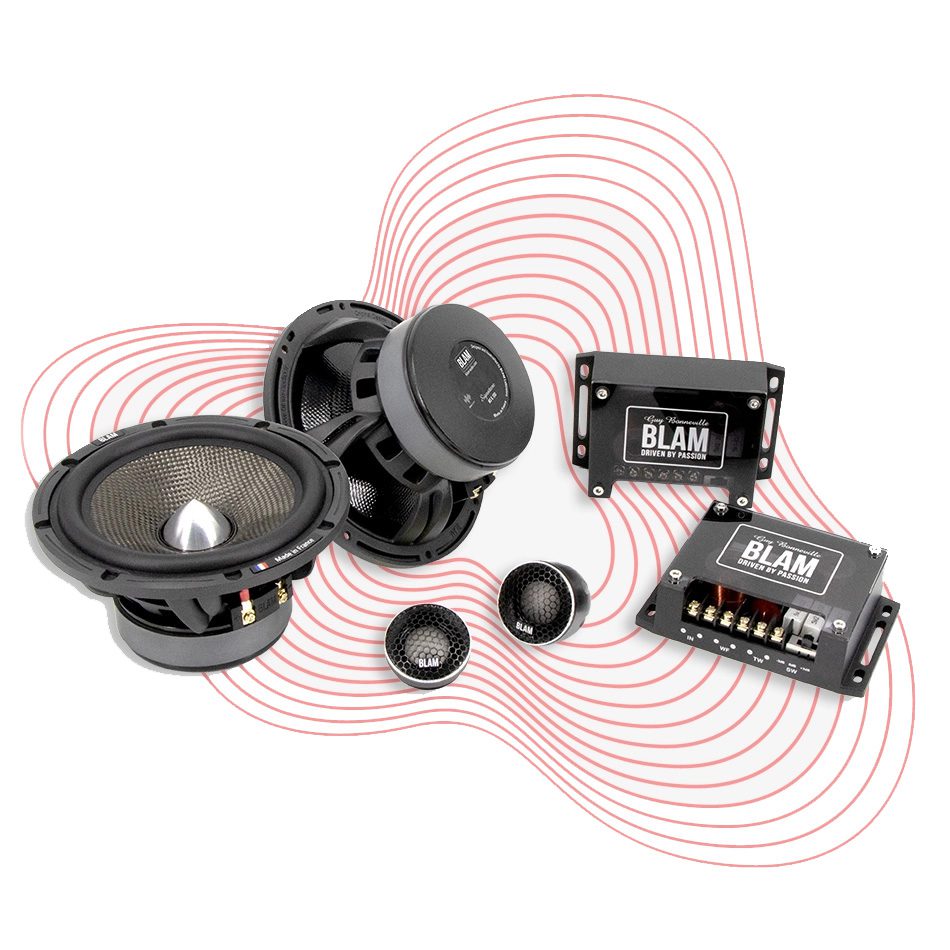

This kit contains two 165 mm (6.5”) woofers, two 25 mm (1.1”) pure magnesium tweeters and two 6/12dB / octave external crossovers with adjustable tweeter level: +3 dB, 0 dB or -3 dB.

Composition

WS 6.100 HIGH POWER WOOFER
6,5” (165 mm) woofer
Max Power 250 W / Nominal 125 W
Frequency response 50 Hz – 5 kHz
Sensitivity 93.2 dB – Impedance 2 Ω
Mounting depth 80.2 mm
Die-cast aluminum basket – Ultra rigid carbon fiber membrane – NBR surround – Long life spider “conex” – 38 mm voice coil on fiberglass former – Oversized 100×20 mm magnetic motor – Machined aluminum phase plug – Gold plated terminal.

TSM 25 Mg 45 HIGH RESOLUTION TWEETER
25 mm (1″) pure magnesium dome tweeter
Frequency response 1.2 kHz – 23 kHz
Sensitivity 89 dB – Impedance 5 Ω
Mounting depth 14.5 mm
High-efficiency magnet (N38H neodymium) – Precision-machined aluminum front plate – Transparent sound grille – Angled mounting support included – Product matched to +/- 1 dB

BFX 02 AUDIOPHILE COMPONENT CROSSOVER
2-way 12/12 dB/octave crossover
Adjustable tweeter level +3 dB, 0 dB or -3 dB
Crossover frequency: 4 kHz
High quality metallized polyester capacitors – Low resistance air coils.
