Kit S 165.300

3 (2+1) WAY COMPONENT SPEAKER SYSTEM

Technical specification

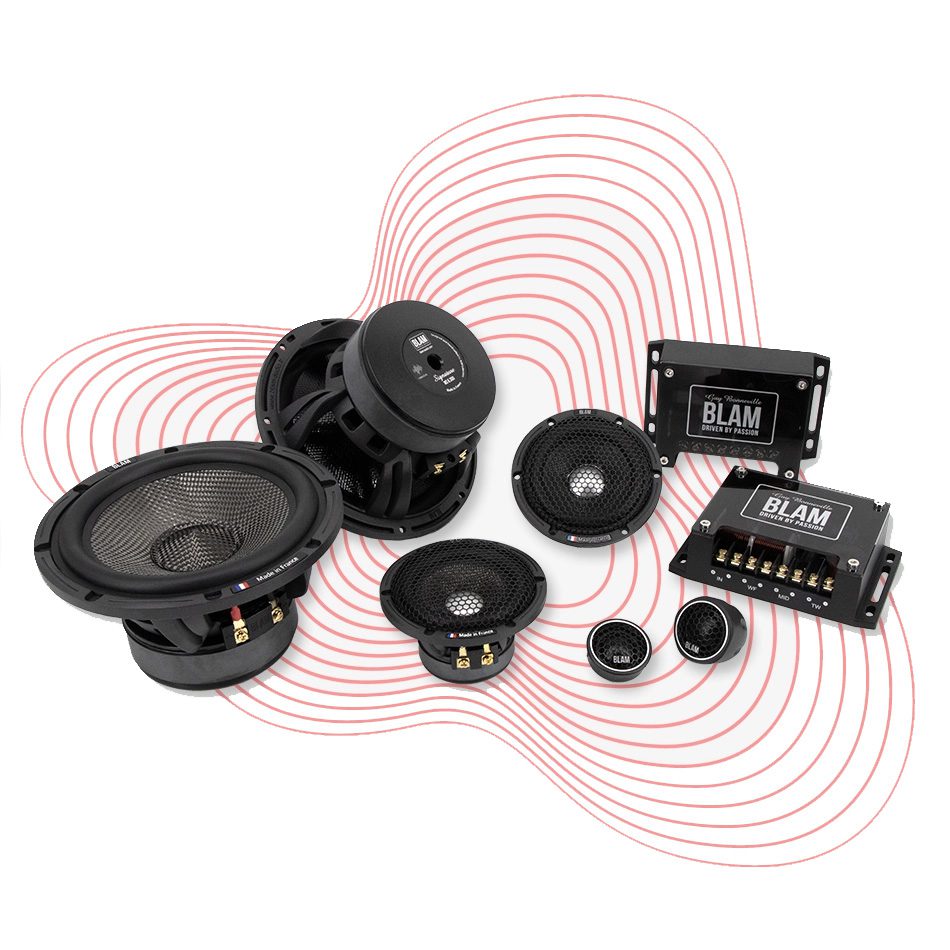

This kit contains two 165 mm (6.5″) woofers, two 80 mm (3″) midrange drivers, two 20 mm (3/4″) soft dome tweeters and two external 6/12/12 dB/octave crossovers with adjustable tweeter level: +3 dB 0 dB or -3 dB.

Composition

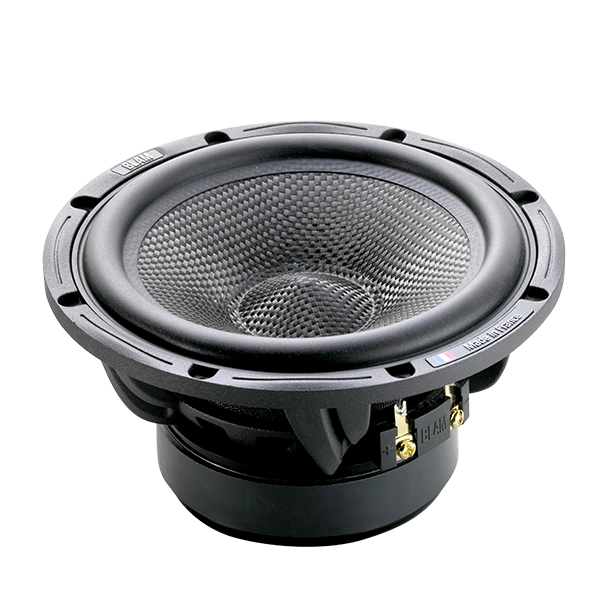

WS 6.100 HIGH POWER WOOFER
6,5” (165 mm) woofer
Max Power 250 W / Nominal 125 W
Frequency response 50 Hz – 5 kHz
Sensitivity 93.2 dB – Impedance 2 Ω
Mounting depth 80.2 mm

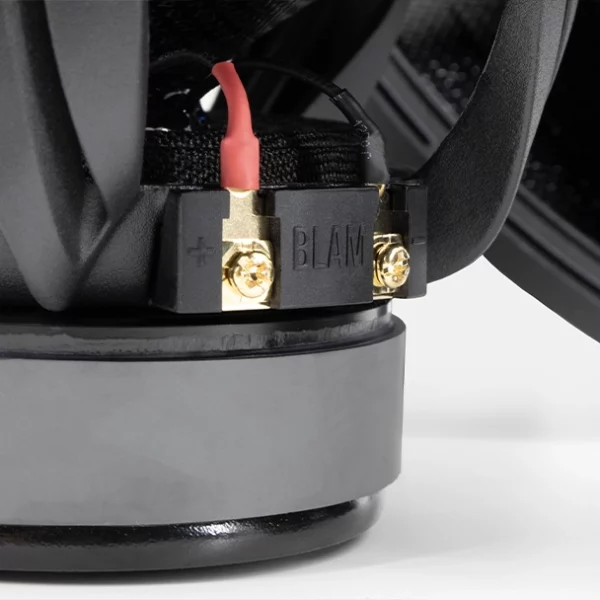

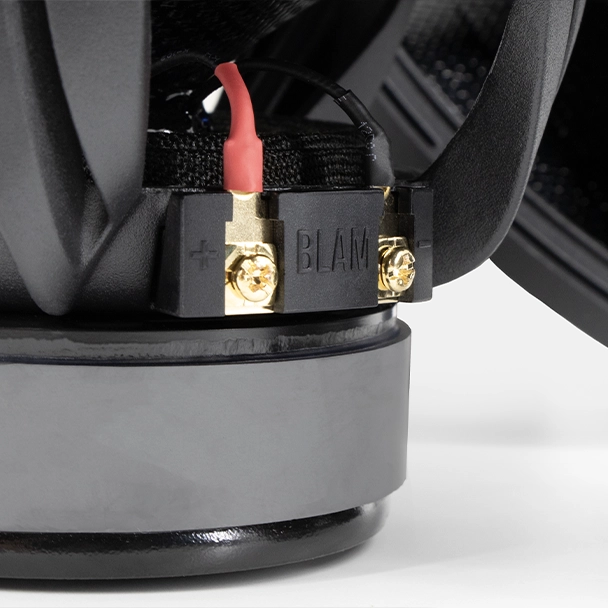

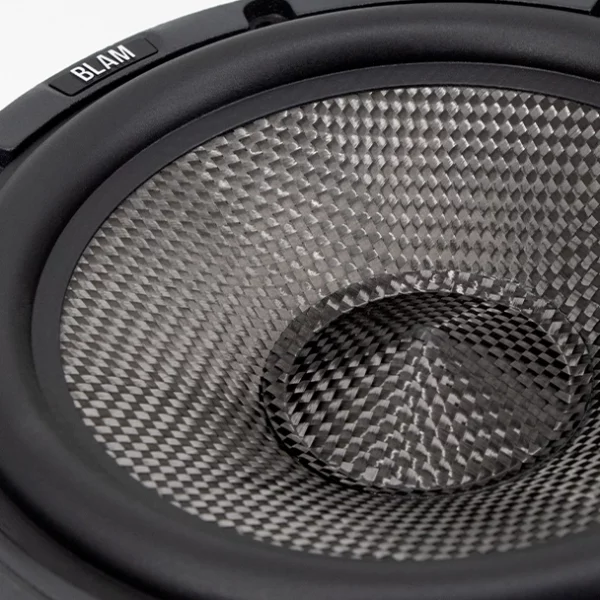

Die-cast aluminum basket – Ultra rigid carbon fiber membrane – NBR perimeter surround – Long life spider “conex” – 38 mm voice coil on fiberglass former – Oversized 100×20 mm magnetic motor – Machined aluminum phaseplug – Gold plated terminal.

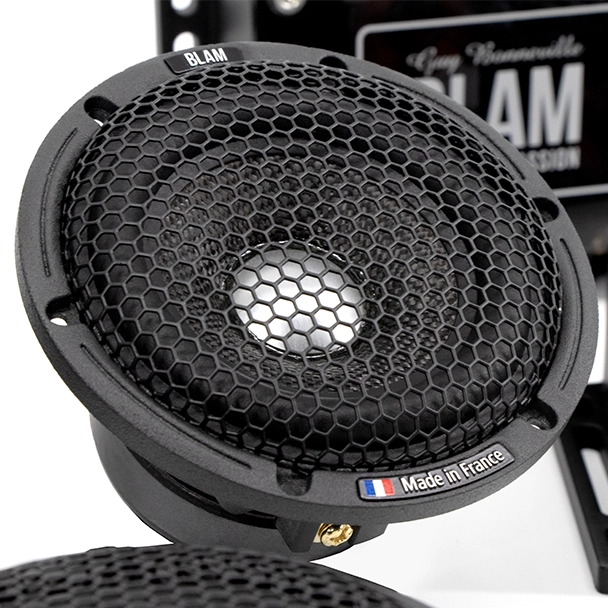

MS3.55 HIGH EFFICIENCY MIDRANGE
3” (80 mm) extended frequency medium
Max power 100 W / Nominal 25 W
Frequency response 200 Hz – 27 kHz
Sensitivity 88 dB – Impedance 3 Ω
Mounting depth 45.5 mm
Die-cast aluminum basket – Ultra-rigid carbon fiber membrane – NBR perimeter surround – Long-life “conex” spider – 20 mm voice-coil on fiberglass former – Oversized 55×10 mm magnetic motor – Magnesium aluminum dust cap – Gold-plated terminal.

TS 20 HR HIGH RESOLUTION TWEETER
20 mm (3/4″) soft-dome tweeter
Maximum power 100 W / Nominal power 15 W
Frequency response 2.5 kHz – 43 kHz
Sensitivity 88.3 dB – Impedance 5 Ω
Mounting depth 21 mm
High-efficiency neodymium magnet (N38 neodymium) – Ferrofluid for high power handling – Precision-machined aluminum faceplate – Transparent noise protection grille

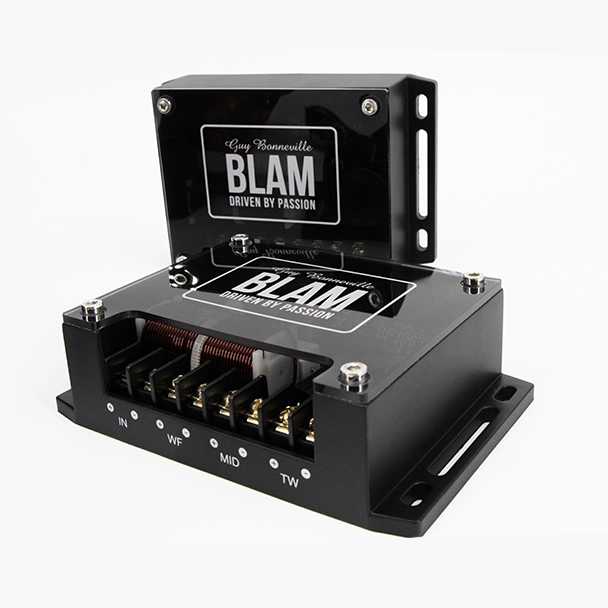

BFX 03 AUDIOPHILE QUALITY CROSSOVER
2+1 way 6/12/12 dB/octave crossover
Adjustable tweeter level +3 dB, 0 dB or -3 dB
Crossover frequency: Woofer/Medium 300 Hz
Super high-pass tweeter: 10 kHz
