Kit S 165.80+

TWO-WAY SPEAKER SYSTEM

Technical specification

This kit contains two 165 mm (6.5″) woofers, two 20 mm (3/4″) high resolution soft dome tweeters and four external crossovers.

Composition

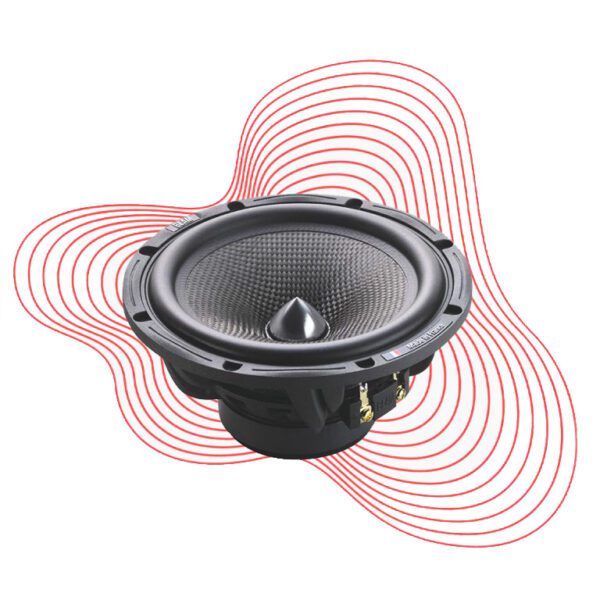

• WS 6.80 HIGH SENSITIVITY WOOFER
  Woofer 165 mm
  Max power 120 W / Nominal power 60 W
  Frequency response 60 Hz – 7 kHz
  Sensitivity 94.3 dB – Impedance 2 Ω
  Mounting depth 73.8 mm

Die cast aluminium basket – Ultra rigid carbon fiber membrane – IIR peripheral surround – Long life “conex” spider – 28 mm voice coil on fiberglass former – 80 x 17 mm magnetic motor – Machined aluminium phase plug – Gold plated terminal.

• TS 20 HR HIGH RESOLUTION TWEETER
  20mm (3/4”) soft dome tweeter
  Frequency response 2.5 KHz-43kHz
  Sensitivity (2.83 V / 1m) 88,3dB – Impedance 5 Ω

Compact mounting dimensions – High efficiency magnet (N38H neodymium) – Ferrofluid for high power handling – Angled mounting support

• BFT 01 HIGH QUALITY CROSSOVER
  12 dB/octave high-pass crossover
  Adjustable tweeter level +3 dB, 0 dB or -3 dB
  Crossover frequency 4.5 kHz

• BFW 01 HIGH QUALITY CROSSOVER
  Low pass 6 dB/octave crossover
  Crossover frequency 3.5 kHz

S 165.80 DATA SHEET
