Kit S 200.100

2-WAY COMPONENT SPEAKER SYSTEM

Technical specification

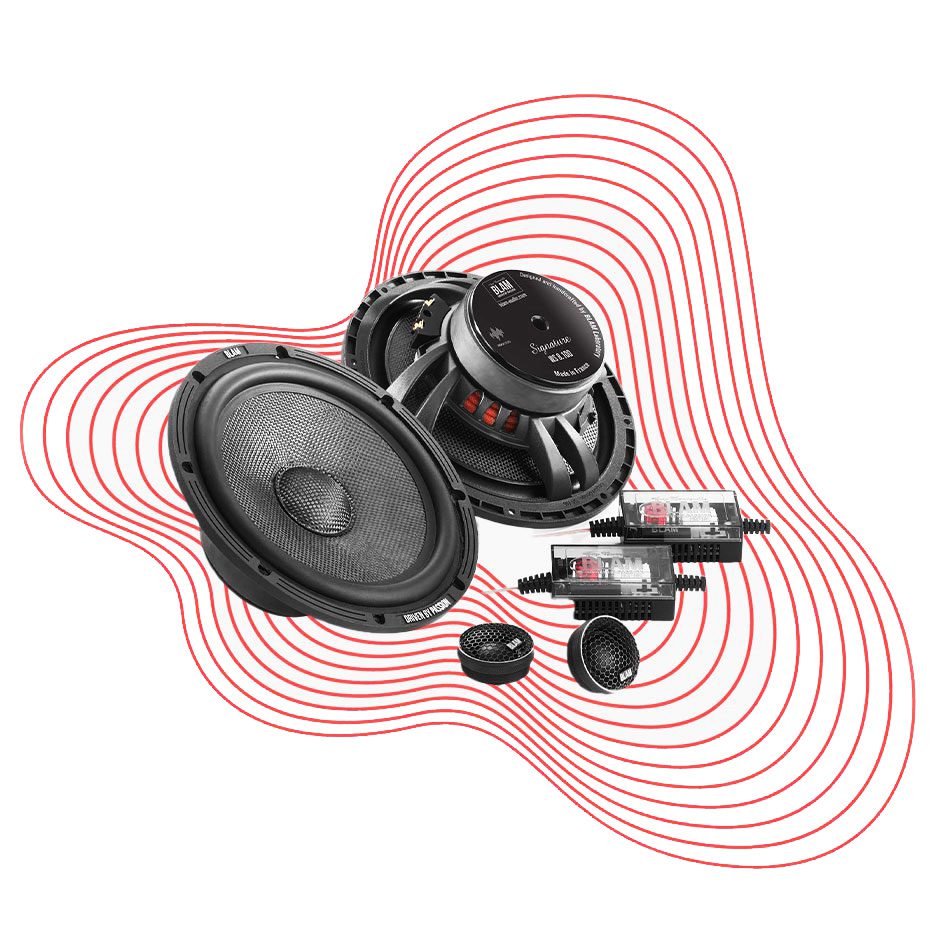

This kit includes two 200 mm (8″) woofers, two 25 mm (1″) soft-dome tweeters and two 12 dB/octave external crossovers with adjustable tweeter levels: +3 dB, 0 dB or -3 dB.

Composition

WS 8.100 HIGH POWER MID-WOOFER
– 200 mm woofer
– Mounting depth 67 mm
– Maximum power 300 W / Nominal power 150 W
– Frequency response 50 Hz – 3.8 kHz
– Sensitivity 93.4 dB – Impedance 2 Ω
Die-cast aluminium basket – Ultra-rigid carbon-fibre membrane – NBR surround – Long-life “conex” spider – 38 mm voice coil on fiberglass former- Oversized magnetic motor 100 × 20 mm – Gold-plated terminal block.

TSM 25 S 45 HIGH DEFINITION TWEETER
– 25 mm soft dome tweeter
– Maximum power 100 W / Nominal power 15 W
– Frequency response 2.5 kHz – 30 kHz
– Sensitivity 90.7 dB – Impedance 5 Ω
– Mounting depth 14.5 mm
High-efficiency N38 neodymium pellet magnet – Precision-machined aluminium faceplate machined aluminum – Transparent protective grille – Angled mounting support supplied – Products matched to +/- 1dB.

BFT01 HIGH QUALITY CROSSOVER
– 12 dB/octave high-pass crossover
– Tweeter level adjustable to +3 dB, 0 dB or -3 dB
– Crossover frequency: 4.5 kHz

S200.100 DATA SHEET
