3 (2+1) WAY SPEAKER SYSTEM
Technical specification

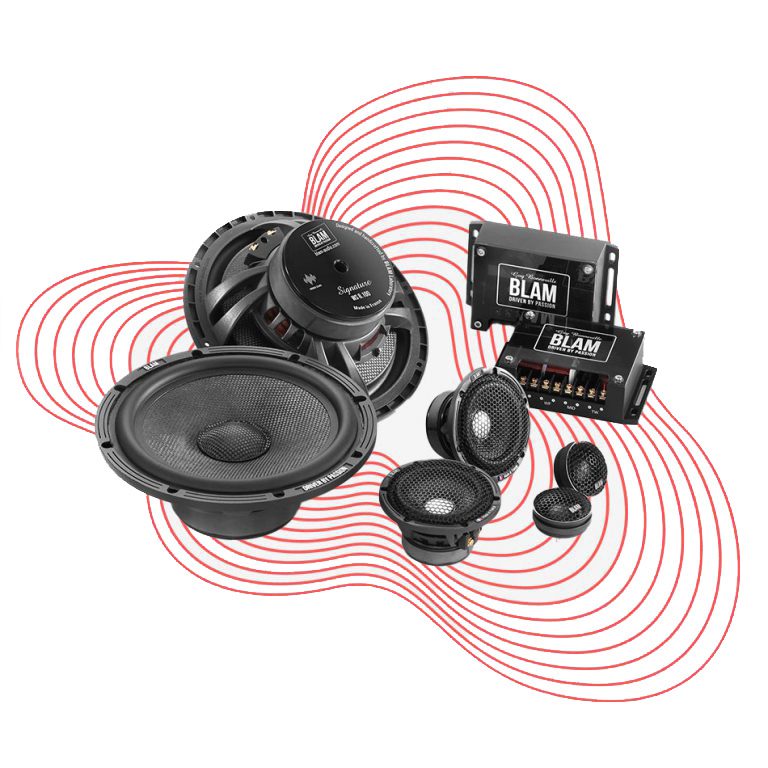

This kit includes two 200 mm (8″) woofers, two 80 mm (3″) midrange drivers, two 25 mm (1″) soft-dome tweeters and two 6/12/12 dB/octave external crossovers with adjustable tweeter levels: +3 dB, 0 dB or -3 dB.
Composition
WS 8.100 HIGH POWER MID-WOOFER
– 200 mm woofer
– Mounting depth 67 mm
– Maximum power 300 W / Nominal power 150 W
– Frequency response 50 Hz – 3.8 kHz
– Sensitivity 93.4 dB – Impedance 2 Ω
Moulded aluminium basket – Ultra-rigid carbon-fibre membrane – NBR perimeter suspension – Long-life “conex” spider – 38 mm voice coil on fiberglass former – Oversized magnetic motor 100 × 20 mm – Gold-plated terminal.
MS 3.55 HIGH PERFORMANCE MIDRANGE
– 80 mm midrange extended frequency
– Maximum power 100 W / Nominal power 25 W
– Frequency response 200 Hz – 27 kHz
– Mounting depth 45.5 mm
Moulded and machined aluminium basket – Ultra rigid carbon fiber membrane – Peripheral surround in NBR – Long life “conex” spider – 20 mm voice coil on fiberglass former – Oversized magnetic motor 55 × 10 mm – Aluminium magnesium dustcap Gold plated terminal block.
OS80 compatible with MS3.55
SOLID ALUMINUM MACHINED SEALED ENCLOSURE
Available in two colors: light grey and mat black
TSM 25 S 45 HIGH DEFINITION TWEETER
– 25 mm soft dome tweeter
– Maximum power 100 W / Nominal power 15 W
– Frequency response 2.5 kHz – 30 kHz
– Sensitivity 90.7 dB – Impedance 5 Ω
– Mounting depth 14.5 mm
High-efficiency N38 neodymium magnet – Precision-machined aluminium faceplate – Transparent protective grill – Angled support – Products matched to +/- 1dB.
BFX 03 AUDIOPHILE QUALITY CROSSOVER
– 2+1 way capacitor 6/12/12 dB/octave
– Crossover frequency: Woofer/Medium: 300 Hz
– Super high-pass tweeter: 10 kHz
