Kit S165 M2 FR

2-WAY COMPONENT SPEAKER SYSTEM

Technical specification

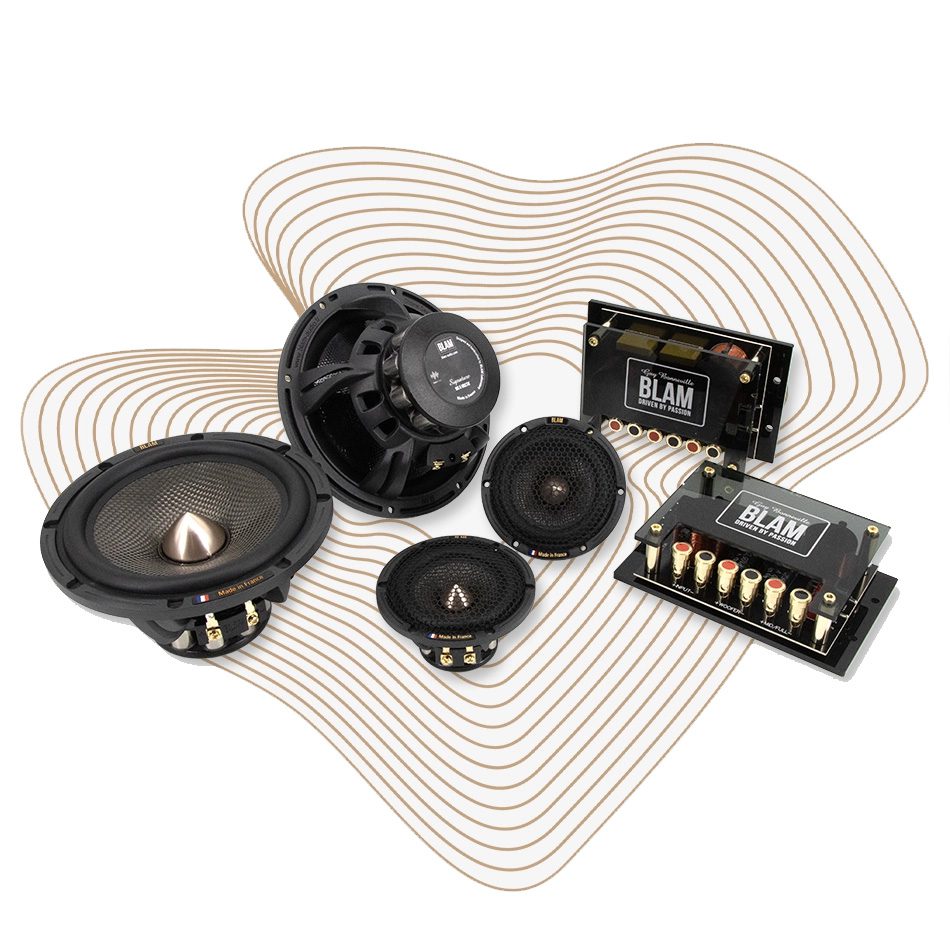

This kit consists of two 165 mm (6.5″) woofers, two 80 mm (3″) midrange drivers and two 6/12 dB/octave high-pass external crossovers.

Composition

Woofer WS6 – HIGH POWER WOOFER
6-1/2” (165 mm) woofer
Maximum power : 250 W / Nominal power : 125 W
Frequency response: 80 Hz – 6 kHz
Sensitivity: 94 dB – Impedance: 2 Ω
Mounting depth 77 mm

Die-cast aluminum basket – Ultra rigid 3K carbon fiber membrane – NBR surround – Double spider with integrated braids – 38 mm voice coil on fiberglass former – Oversized 10 sticks neodymium magnet – Machined aluminum phase plug – Gold plated terminal – Paired products at +/- 1dB

Midrange MS3 – EXTENDED FREQUENCY SPEAKER
3” (80 mm) full range midrange
Maximum power : 100 W / Nominal power : 25 W
Frequency response 120 Hz – 32 kHz
Sensitivity 88 dB – Impedance 3 Ω
Mounting depth 44.5 mm

Die-cast aluminium basket – Ultra-rigid carbon fiber membrane – NBR surround – Long-life “Conex” spider – 38 mm voice coil on fibreglass former – Ultra-powerful 8-stick neodymium magnet – Machined aluminium phase plug – Gold-plated terminal – Products paired at +/- 1dB

MULTIX WOMID AUDIOPHILE CROSSOVER
Audiophile components
12 dB/octave high-pass crossover, frequency-adjustable from 150 to 500 Hz
Low pass 6 dB/octave crossover
