Kit S165 M2 MG
TWO-WAY COMPONENT SPEAKER SYSTEM
Technical specification
Available in two colors (gold & black).

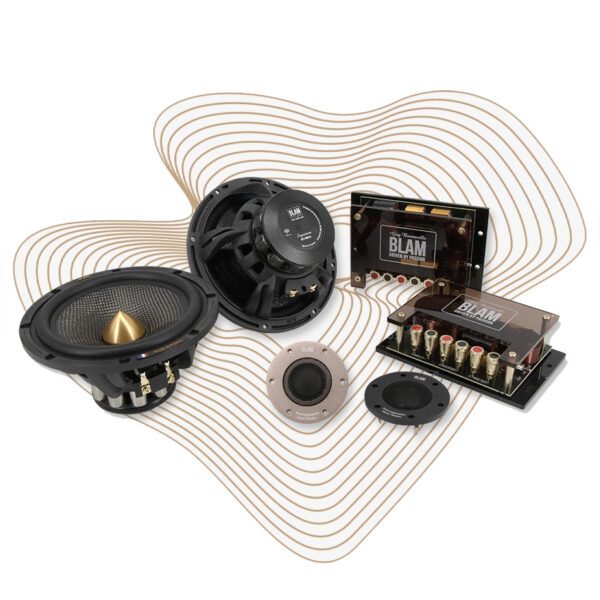

This kit includes two 165 mm (6.5″) woofers, two 25 mm (1″) pure magnesium dome tweeters and two 12 dB/octave audiophile high-pass crossovers with adjustable tweeter level: +3 dB, 0 dB or -3 dB.
Composition
Woofer WS6 – HIGH POWER WOOFER
6-1/2” (165 mm) woofer
Maximum power : 250 W / Nominal power : 125 W
Frequency response: 80 Hz – 6 KHz
Sensitivity: 94 dB – Impedance: 2 Ω
Mounting depth 77 mm
Die-cast aluminum basket – Ultra rigid 3K carbon fiber membrane – NBR surround – Double spider with integrated braids – 38 mm voice coil on fiberglass former – Oversized 10 sticks neodymium magnet – Machined aluminum phase plug – Gold plated terminal – Paired products at +/- 1dB
Tweeter TSM25Mg 70 HR – HIGH RESOLUTION TWEETER
25 mm (1″) pure magnesium dome tweeter
Maximum power 100 W / Nominal power 15 W
Sensitivity: 89.8 dB – Impedance: 5 Ω
Frequency response 2.4 kHz – 43 kHz
Mounting depth 12 mm
Ultra-powerful neodymium ring magnet – Precision machined aluminum faceplate – Transparent protective grille – Low resonance rear chamber
Available in two colors: black and gold
Multix WT 2 Ways Filter – AUDIOPHILE CROSSOVER
High pass 12 dB/octave crossover
Adjustable tweeter level +3 dB, 0 dB and -3 dB
Audiophile components
Crossover frequency 3.5 kHz
Looking for Blam audio products? Find our resellers and distributors around the world.
TWO-WAY COMPONENT SPEAKER SYSTEM
Technical specification
Available in two colors (gold & black).
This kit includes two 165 mm (6.5″) woofers, two 25 mm (1″) pure magnesium dome tweeters and two 12 dB/octave audiophile high-pass crossovers with adjustable tweeter level: +3 dB, 0 dB or -3 dB.
Composition
Woofer WS6 – HIGH POWER WOOFER
6-1/2” (165 mm) woofer
Maximum power : 250 W / Nominal power : 125 W
Frequency response: 80 Hz – 6 KHz
Sensitivity: 94 dB – Impedance: 2 Ω
Mounting depth 77 mm
Die-cast aluminum basket – Ultra rigid 3K carbon fiber membrane – NBR surround – Double spider with integrated braids – 38 mm voice coil on fiberglass former – Oversized 10 sticks neodymium magnet – Machined aluminum phase plug – Gold plated terminal – Paired products at +/- 1dB
Tweeter TSM25Mg 70 HR – HIGH RESOLUTION TWEETER
25 mm (1″) pure magnesium dome tweeter
Maximum power 100 W / Nominal power 15 W
Sensitivity: 89.8 dB – Impedance: 5 Ω
Frequency response 2.4 kHz – 43 kHz
Mounting depth 12 mm
Ultra-powerful neodymium ring magnet – Precision machined aluminum faceplate – Transparent protective grille – Low resonance rear chamber
Available in two colors: black and gold
Multix WT 2 Ways Filter – AUDIOPHILE CROSSOVER
High pass 12 dB/octave crossover
Adjustable tweeter level +3 dB, 0 dB and -3 dB
Audiophile components
Crossover frequency 3.5 kHz
GAMME | Multix |
---|---|
TYPE | 2 ways |
TAILLE | 165mm |
