3 (2+1) WAY COMPONENT SPEAKER SYSTEM
Technical specification

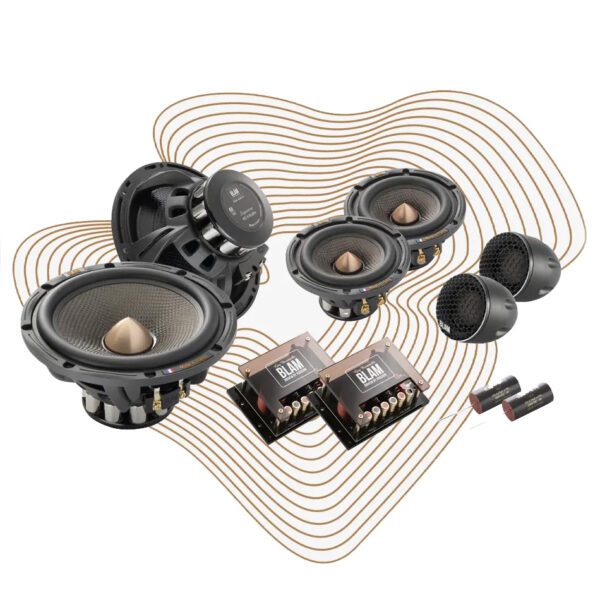

The kit includes two 165 mm (6.5″) woofers, two 80 mm (3″) midrange drivers, two 25 mm pure magnesium dome tweeters and four external 6/12 dB/octave high-pass crossovers.
Composition
Woofer WS6 – HIGH POWER WOOFER
6-1/2” (165 mm) woofer
Maximum power : 250 W / Nominal power : 125 W
Frequency response: 80 Hz – 6 KHz
Sensitivity: 94 dB – Impedance: 2 Ω
Die-cast aluminum basket – Ultra rigid 3K carbon fiber membrane – NBR surround – Double spider with integrated braids – 38 mm voice coil on fiberglass former – Oversized 10 sticks neodymium magnet – Machined aluminum phase plug – Gold plated terminal – Paired products at +/- 1dB
Medium MS3 – EXTENDED FREQUENCY SPEAKER
3” (80 mm) full range midrange
Maximum power : 100 W / Nominal power : 25 W
Frequency response 120 Hz – 32 KHz
Impedance 3 Ω
Die-cast aluminium basket – Ultra rigid carbon fiber membrane – NBR surround – Long life “Conex” spider – 38 mm voice coil on fibreglass former – Ultra powerful 8 stick neodymium magnet – Machined aluminium phase plug – Gold plated terminal – Paired products at +/- 1dB
Tweeter TSM25Mg 45 HR – HIGH RESOLUTION TWEETER
25 mm (1″) pure magnesium dome tweeter
Sensitivity: 89 dB – Impedance: 6 Ω
Frequency response 1.2 KHz – 23 KHz
N38 high efficiency neodymium magnet – Precision machined aluminum faceplate – Transparent protective grille
MULTIX WOMID AUDIOPHILE CROSSOVER
Audiophile components
High pass filter 6/12 dB per octave
High pass adjustable in frequency from 150 to 500 Hz
BFT01 HIGH QUALITY CROSSOVER
12 dB/octave high-pass crossover
Adjustable tweeter level +3 dB, 0 dB or -3 dB
Looking for Blam audio products?
Find our resellers and distributors
around the world.
3 (2+1) WAY COMPONENT SPEAKER SYSTEM
Technical specification
The kit includes two 165 mm (6.5″) woofers, two 80 mm (3″) midrange drivers, two 25 mm pure magnesium dome tweeters and four external 6/12 dB/octave high-pass crossovers.
Composition
Woofer WS6 – HIGH POWER WOOFER
6-1/2” (165 mm) woofer
Maximum power : 250 W / Nominal power : 125 W
Frequency response: 80 Hz – 6 KHz
Sensitivity: 94 dB – Impedance: 2 Ω
Die-cast aluminum basket – Ultra rigid 3K carbon fiber membrane – NBR surround – Double spider with integrated braids – 38 mm voice coil on fiberglass former – Oversized 10 sticks neodymium magnet – Machined aluminum phase plug – Gold plated terminal – Paired products at +/- 1dB
Medium MS3 – EXTENDED FREQUENCY SPEAKER
3” (80 mm) full range midrange
Maximum power : 100 W / Nominal power : 25 W
Frequency response 120 Hz – 32 KHz
Impedance 3 Ω
Die-cast aluminium basket – Ultra rigid carbon fiber membrane – NBR surround – Long life “Conex” spider – 38 mm voice coil on fibreglass former – Ultra powerful 8 stick neodymium magnet – Machined aluminium phase plug – Gold plated terminal – Paired products at +/- 1dB
Tweeter TSM25Mg 45 HR – HIGH RESOLUTION TWEETER
25 mm (1″) pure magnesium dome tweeter
Sensitivity: 89 dB – Impedance: 6 Ω
Frequency response 1.2 KHz – 23 KHz
N38 high efficiency neodymium magnet – Precision machined aluminum faceplate – Transparent protective grille
MULTIX WOMID AUDIOPHILE CROSSOVER
Audiophile components
High pass filter 6/12 dB per octave
High pass adjustable in frequency from 150 to 500 Hz
BFT01 HIGH QUALITY CROSSOVER
12 dB/octave high-pass crossover
Adjustable tweeter level +3 dB, 0 dB or -3 dB
| GAMME | Multix |
|---|---|
| TYPE | 3 ways |
| TAILLE | 165mm |
