KIT SR165F
This two-way system offers outstanding sound performance, ideal for demanding sound enthusiasts. With maximum power of 150 W and nominal power of 75 W, frequency response from 60 Hz to 25 kHz, impedance of 3 Ω, and sensitivity of 91 dB, it guarantees dynamic, balanced sound reproduction. The kit includes 165 mm woofers with a glass-fiber-reinforced composite basket, a glass-fiber cone for precise response, and butyl perimeter suspension for optimum durability. The long-life “Conex” spider, 25 mm voice coil on aluminum support, and 24.5 x 6 mm magnetic motor with 5 mm magnetic circuit complete the technical specifications for outstanding sound quality. The 20 mm tweeters, equipped with a soft dome and N38 neodymium motor, include 6 dB/octave high-pass filters and offer adjustable levels of 0 dB or -3 dB for enhanced customization. The kit also includes two woofers, two tweeters, two crossovers, mounting screws, mounting accessories for the tweeters, an inclined stand, and instructions for use, providing a complete, high-end solution.
HIGH-SENSITIVITY TWO-WAY COMPONENT SPEAKER SYSTEM
Max power 150 W – Rated power 75 W
Frequency response 60 Hz – 25 kHz
Impedance 3 Ω – Sensitivity 91 dB
THIS KIT INCLUDES
- Woofer 165 mm
Glass fiber reinforced composite salad bowl
Fiberglass membrane
All-round butyl suspension
Spider long life “Conex”
25 mm coil on aluminum support
Magnetic motor 24.5 x 6 mm
5 mm magnetic circuit
- Tweeter
High quality 20 mm soft dome tweeter
N38 noedymium motor
Integrated high-pass filters 6 dB/octave
Adjustable tweeter level 0 dB or -3dB

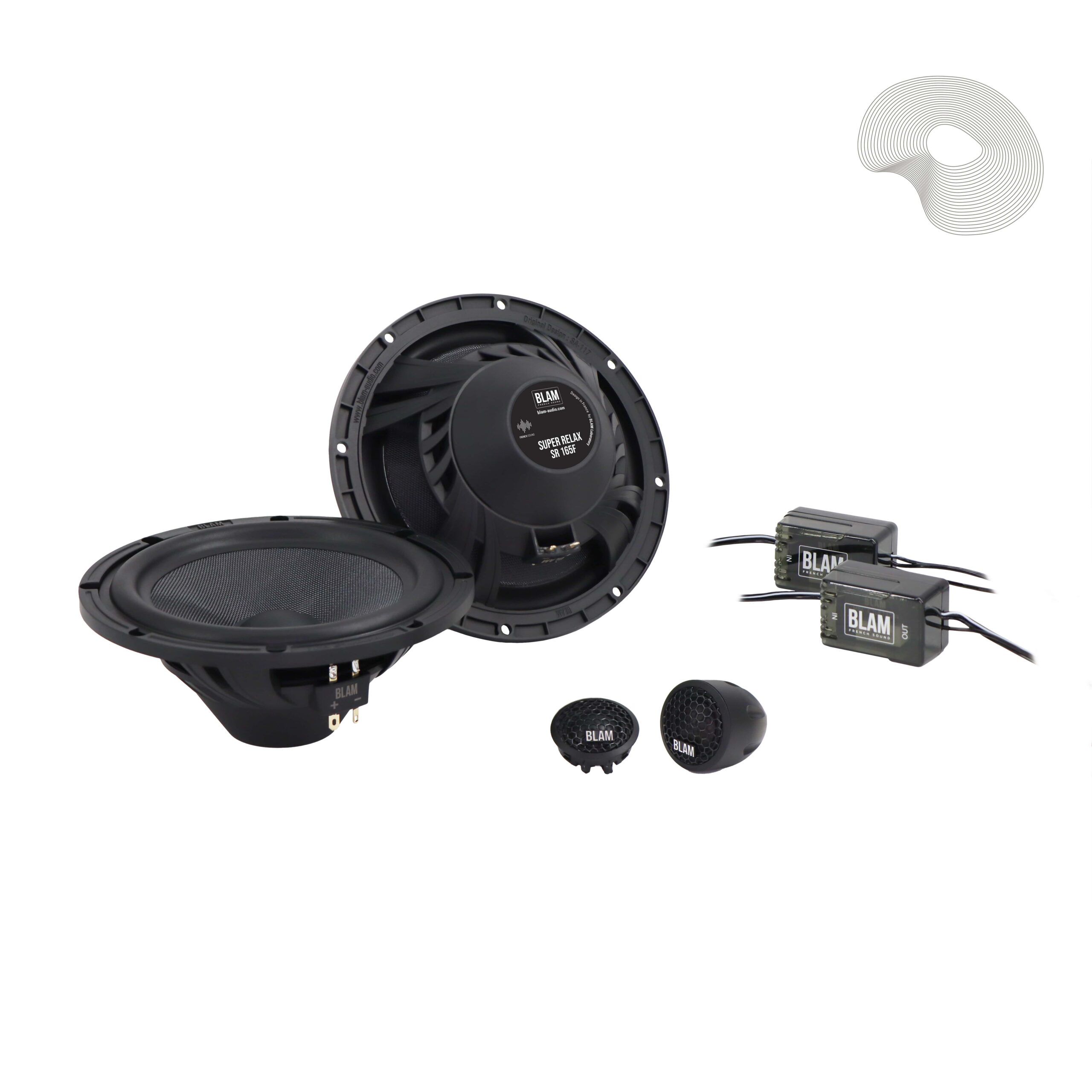

Kit composition
- 2 woofers, 2 tweeters, 2 filtres
- Mounting screws and accessories for tweeters – Inclined stand included
- Instructions for use
Looking for Blam audio products?
Find our resellers and distributors
around the world.
HIGH-SENSITIVITY TWO-WAY COMPONENT SPEAKER SYSTEM
Max power 150 W – Rated power 75 W
Frequency response 60 Hz – 25 kHz
Impedance 3 Ω – Sensitivity 91 dB
THIS KIT INCLUDES
- Woofer 165 mm
Glass fiber reinforced composite salad bowl
Fiberglass membrane
All-round butyl suspension
Spider long life “Conex”
25 mm coil on aluminum support
Magnetic motor 24.5 x 6 mm
5 mm magnetic circuit
- Tweeter
High quality 20 mm soft dome tweeter
N38 noedymium motor
Integrated high-pass filters 6 dB/octave
Adjustable tweeter level 0 dB or -3dB
Kit composition
- 2 woofers, 2 tweeters, 2 filtres
- Mounting screws and accessories for tweeters – Inclined stand included
- Instructions for use
TYPE | 2 separate lanes |
---|---|
GAMME | Super Relax |
TAILLE | 165mm (6") |
PRODUIT | Kit |
