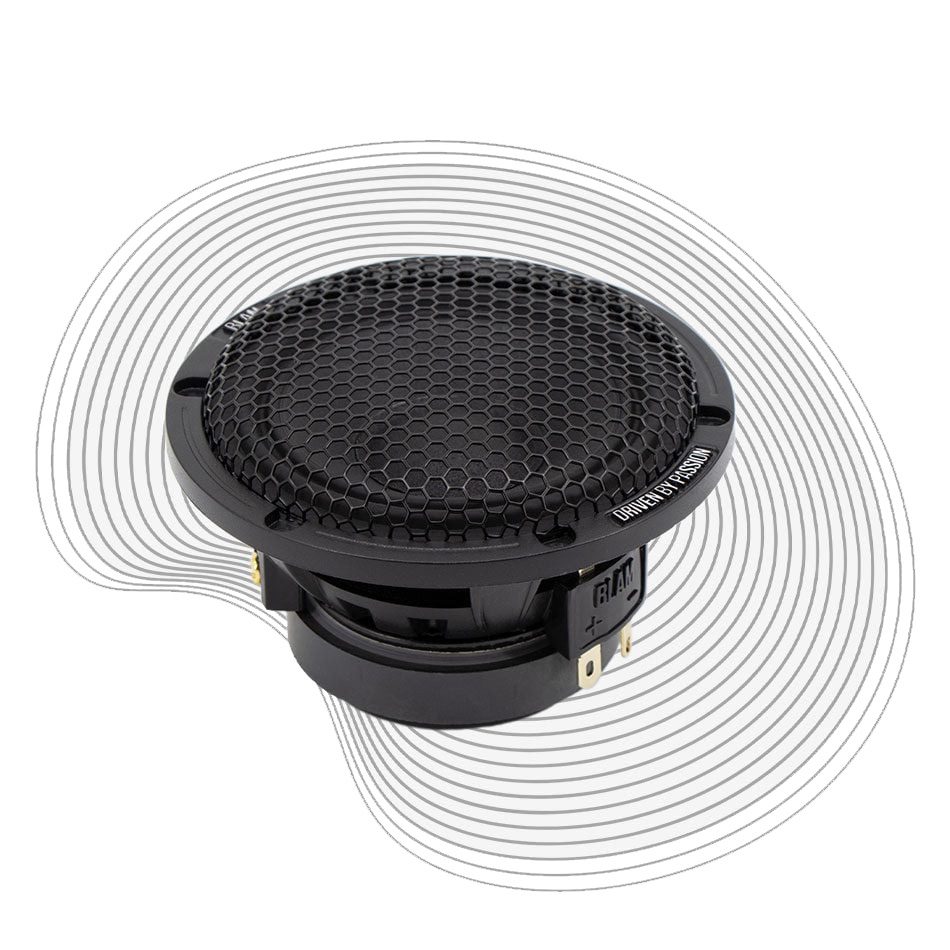

80 mm (3″) dual voice-coil midrange speaker
Technical specification
Max Power 100 W – Nominal Power 25 W*
Frequency Response 150 Hz – 20 kHz
Sensitivity 86 dB – Impedance 2×3 Ω
*Depends on the cutoff frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave
Composition
R80 80 MM MID-Range SPEAKER
Maximum Power 100 W – Nominal Power 25 W*
Frequency Response 150 Hz – 20 kHz
Sensitivity 86 dB – Impedance 2×3 Ω
Built-in Depth 45.5 mm (1.8″)
Composite basket reinforced in fiberglass – High quality treated cellulose pulp membrane – Butyl rubber surround – Long life “Conex” damper – 20 mm ‘0.8”) voice coil on fiberglass former – 55 mm x 10 mm (2.1” x 0.4”) ferrite magnet
Recommended minimum cut-off frequency 250 Hz 12 dB/octave
Supplied accessories :
Fixing screws
Protective grille
Operating instructions
Looking for Blam audio products?
Find our resellers and distributors
around the world.
80 mm (3″) dual voice-coil midrange speaker
Technical specification
Max Power 100 W – Nominal Power 25 W*
Frequency Response 150 Hz – 20 kHz
Sensitivity 86 dB – Impedance 2×3 Ω
*Depends on the cutoff frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave
Composition
R80 80 MM MID-Range SPEAKER
Maximum Power 100 W – Nominal Power 25 W*
Frequency Response 150 Hz – 20 kHz
Sensitivity 86 dB – Impedance 2×3 Ω
Built-in Depth 45.5 mm (1.8″)
Composite basket reinforced in fiberglass – High quality treated cellulose pulp membrane – Butyl rubber surround – Long life “Conex” damper – 20 mm ‘0.8”) voice coil on fiberglass former – 55 mm x 10 mm (2.1” x 0.4”) ferrite magnet
Recommended minimum cut-off frequency 250 Hz 12 dB/octave
Supplied accessories :
Fixing screws
Protective grille
Operating instructions
| GAMME | Relax |
|---|---|
| TYPE | Full range |
| TAILLE | 80mm (3") |
