Woofer WS8

Woofer WS8

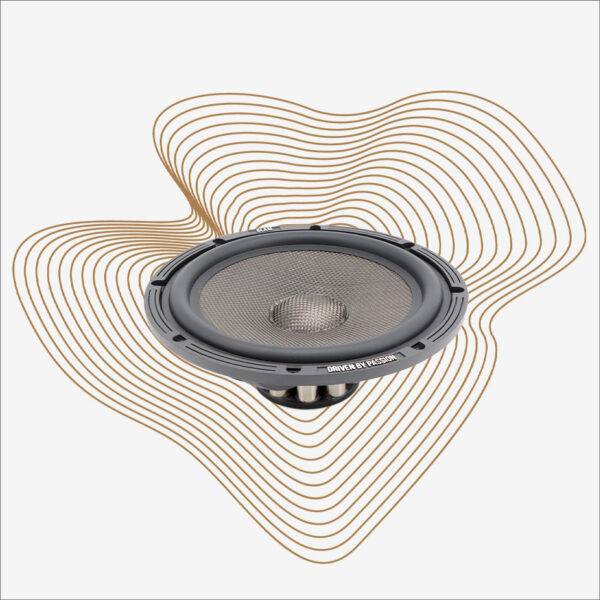

The 200 mm high-fidelity woofer offers a maximum power of 250 W and a nominal power of 125 W. It has a frequency response of 40 Hz to 4 kHz with a sensitivity of 94.1 dB and an impedance of 2 Ω. This speaker is designed with a cast aluminum basket, an ultra-rigid carbon fiber cone, an NBR suspension, and a long-life “conex” spider. Its 38 mm voice coil on a fiberglass support, its powerful neodymium magnet and its carbon core cover ensure precise and durable sound reproduction.

VIEW DISTRIBUTORS

200 MM HIGH FIDELITY WOOFER



Technical specification

200 mm woofer
Maximum power 250 W / Nominal power 125 W
Frequency response 40 Hz – 4 kHz
Sensitivity 94.1 dB – Impedance 2 Ω
Installation depth 68.5 mm



Composition

Moulded aluminium saladier – Ultra rigid carbon fiber membrane – NBR perimeter suspension – Long life spider “conex” – 38 mm coil on fiberglass support 38 mm coil on fiberglass support – Oversized 10 bar neodymium magnet – Gold plated terminal block – Carbon core cover



Icon

WS8 MULTIX DATA SHEET

1 file(s) 138.51 KB
Download
