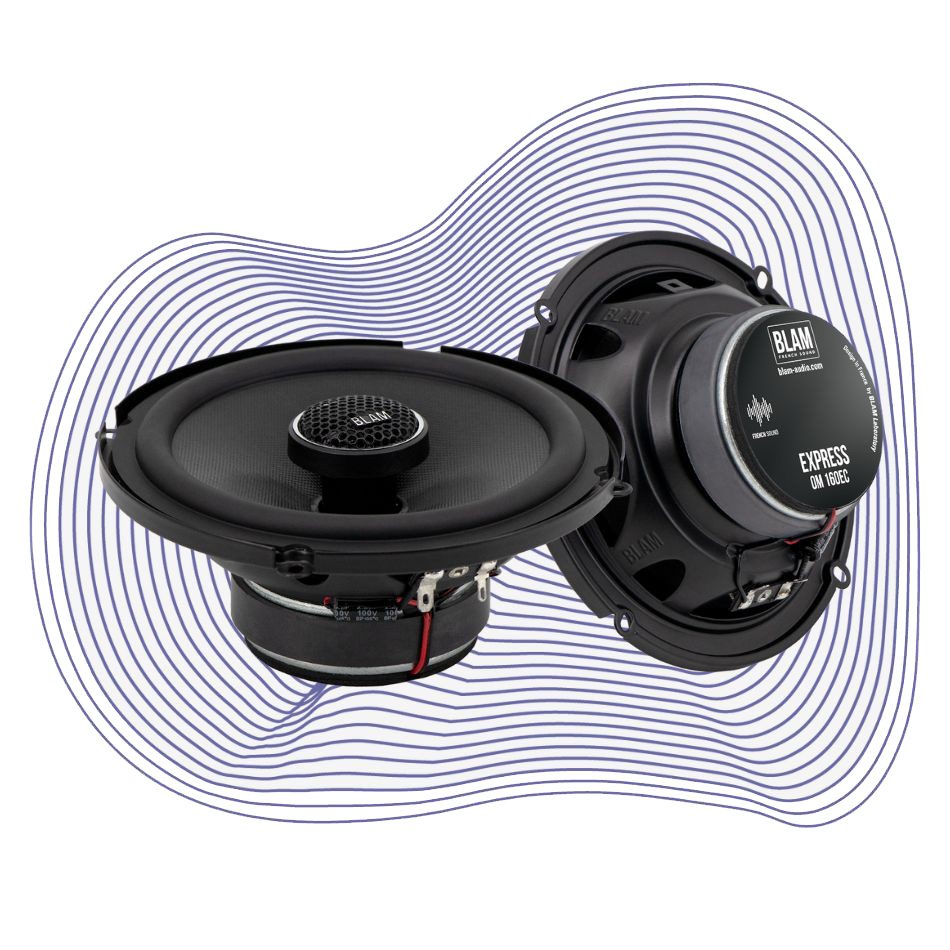

High-efficiency 2-voice coaxial kit
Maximum power 120 W – Nominal power 60 W
Frequency response 70 Hz – 21 kHz
Impedance 2 Ω – Sensitivity 93 dB
This kit includes two 160mm woofers with 13mm coaxial tweeters and two integrated 6dB/octave high-pass filters.
Woofer :
Specific deep-drawn steel basket
Treated cellulose pulp membrane
Peripheral butyl surround
Spider long life ”Conex
25 mm coil on kapton support
Magnetic motor 80 x 15 mm (Y30)
Coaxial tweeter :
13 mm polycarbonate dome
Neodymium motor
Accessory for flush or inclined mounting
Integrated 6dB/octave high-pass filter
Looking for Blam audio products?
Find our resellers and distributors
around the world.
High-efficiency 2-voice coaxial kit
Maximum power 120 W – Nominal power 60 W
Frequency response 70 Hz – 21 kHz
Impedance 2 Ω – Sensitivity 93 dB
This kit includes two 160mm woofers with 13mm coaxial tweeters and two integrated 6dB/octave high-pass filters.
Woofer :
Specific deep-drawn steel basket
Treated cellulose pulp membrane
Peripheral butyl surround
Spider long life ”Conex
25 mm coil on kapton support
Magnetic motor 80 x 15 mm (Y30)
Coaxial tweeter :
13 mm polycarbonate dome
Neodymium motor
Accessory for flush or inclined mounting
Integrated 6dB/octave high-pass filter
| TYPE | 2 ways |
|---|---|
| GAMME | Express |
| TAILLE | 165mm |
