RA 754 D amplifier

RA 754 D amplifier

The ultra-compact 4-channel Class D amplifier delivers 50 W RMS per channel into 4 Ω and 75 W RMS into 2 Ω, with a bridge mode configuration of 150 W RMS per channel into 4 Ω. It is compatible with original car radios and ensures significant power gain, providing excellent sound dynamics, particularly when combined with the Relax 2 Ω speakers. The 120 Hz low-pass filter and 100 Hz high-pass filter allow precise frequency management, while the frequency response extends from 10 Hz to 22 kHz. It has protections against short circuits, low impedances, polarity reversals and overheating to ensure safe use.

Contact us

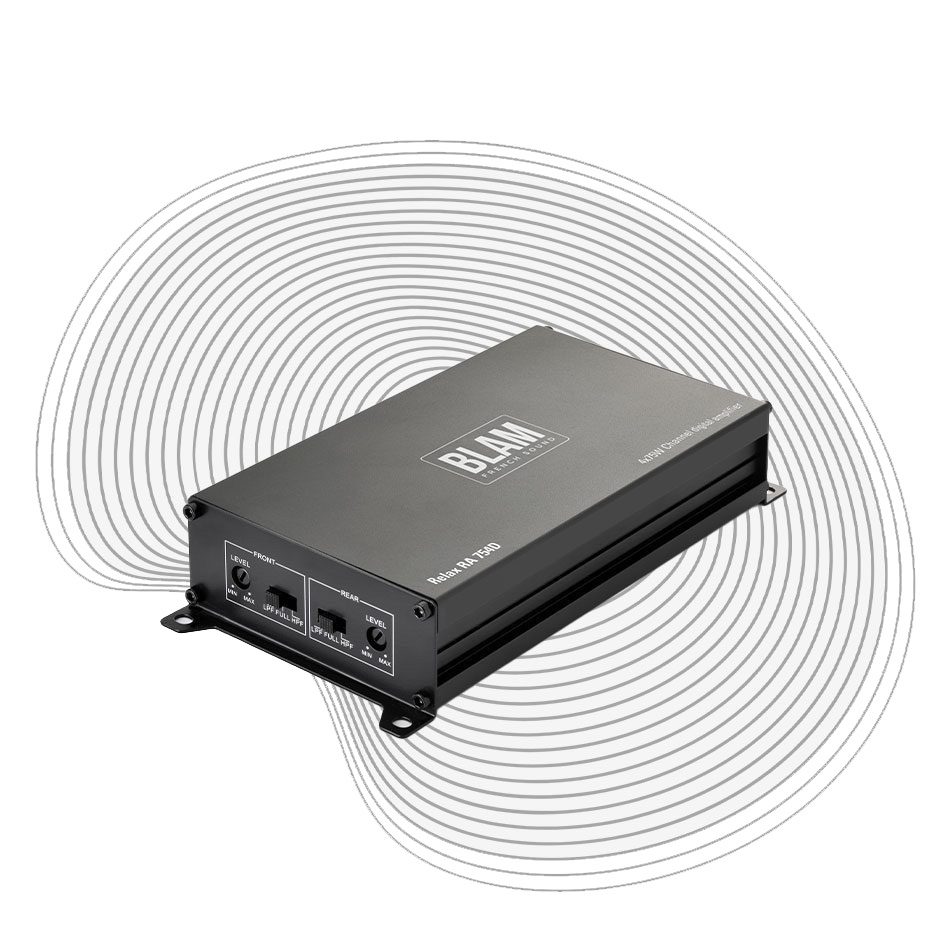

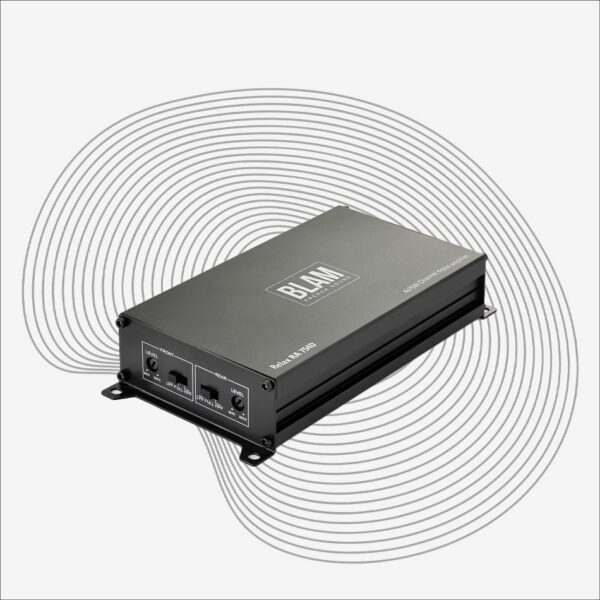

ULTRA COMPACT 4 CHANNEL AMPLIFIER



Technical details

Power up your setup with this ultra-compact 4-channel amplifier using class-D technology.
Easy to install and compatible with original car radios, it generates a significant gain in power for a greatly improved listening comfort even at moderate levels.
Combined with the Relax 2 Ohms speakers, you get a superb dynamic range that will bring all your favorite songs to life.

Compatible with OEM head units



Composition

– Automatic start-up
– Low and high level compatible RCA inputs: 0.3V /15V
– Power (4 Ω): 4 × 50 Watts RMS
– Power (2 Ω): 4 × 75 Watts RMS
– Bridge power (4 Ω): 2 × 150 Watts RMS
– Low pass filter: 120 Hz (12 dB/octave)
– High pass filter: 100 Hz (12 dB/octave)
– Frequency response: 10 Hz – 22 kHz
• Signal-to-noise ratio : > 90 dB
– Protections: short circuit / low impedance / reverse polarity / thermal protection
– Dimensions (L x W x H): 188 × 91.4 × 36 mm – 7.4″ × 3.6″ × 1.4

Supplied accessories :
Fixing screws
Instructions for use



Icon

RA754D DATA SHEET

1 file(s) 231.95 KB
Download
Icon

RA754D USERMANUAL

1 file(s) 2.99 MB
Download
