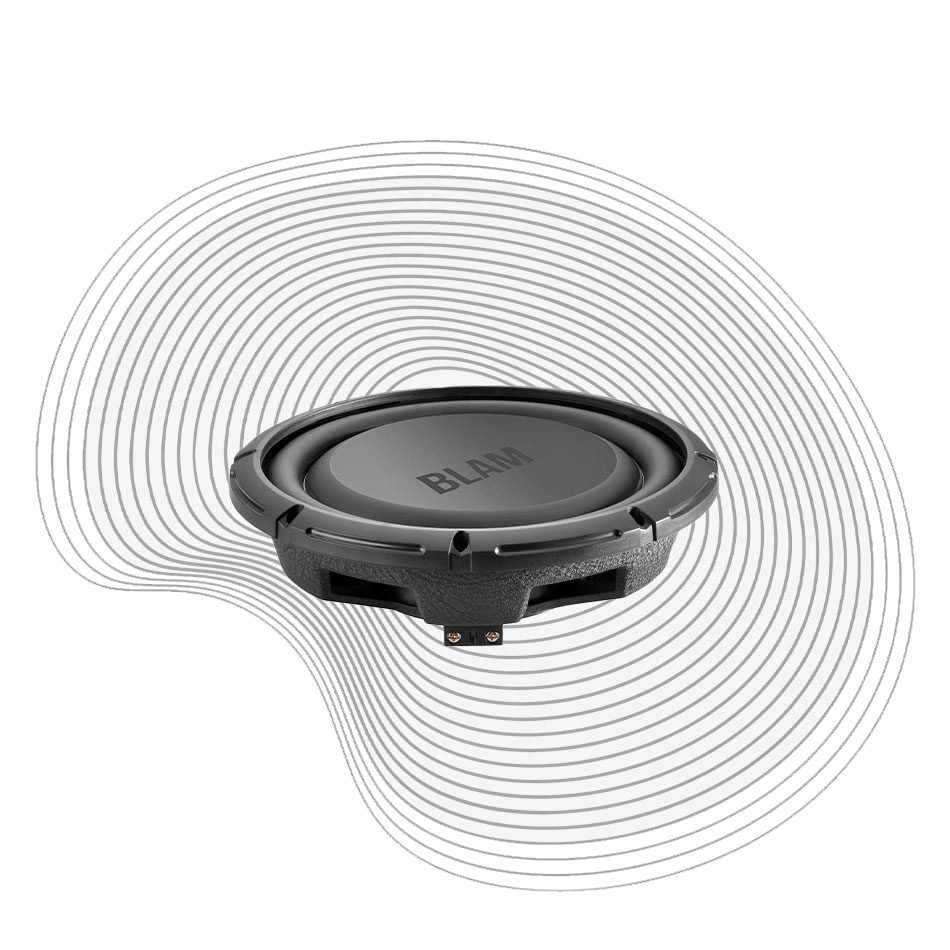

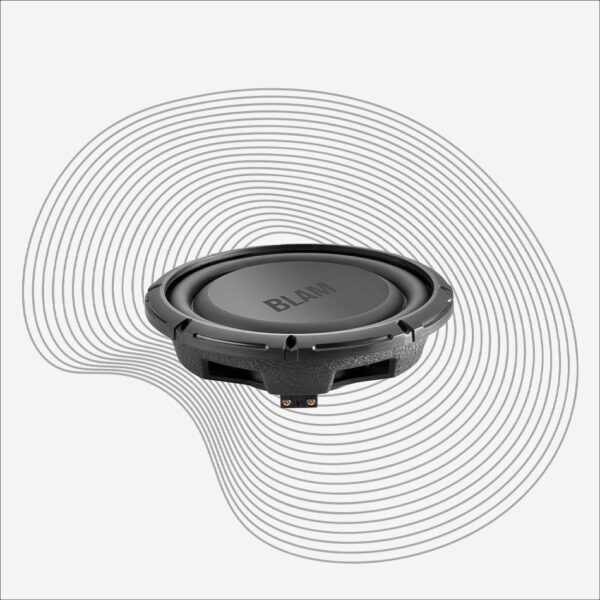

SUBWOOFER EXTRA FLAT 250 MM RS10.2
Technical specification
Mounting depth 66 mm
Power 300 W max / 150 W nominal
Frequency response 35 Hz to 500 Hz
Sensitivity: 87.7 dB
Impedance 2 Ω
Composition
Steel salad bowl
Injected polypropylene membrane
Large all-round butyl suspension
Conex” long-life spider
50 mm coil on aluminum support
126 mm x 15 mm magnetic motor
Flared pole piece
Subwoofer optimized for closed cabinets from 10L to 40L
Supplied accessories :
Fixing screws
Instructions for use
Recommended sealed enclosure:
| Internal Volume Vb | F -3dB | Boost |
| 10L | 46 Hz | 5,7 dB à 71 Hz |
| 20L | 38 Hz | 4,1 dB à 60 Hz |
| 30L | 36 Hz | 3,4 dB à 56 Hz |
