Kit S 165N45+

ULTRA-FLAT TWO-WAY SPEAKER SYSTEM

Technical specification

This kit contains two 165 mm (6.5″) woofers, two 20 mm (3/4″) high resolution soft dome tweeters and four external crossovers.

Composition

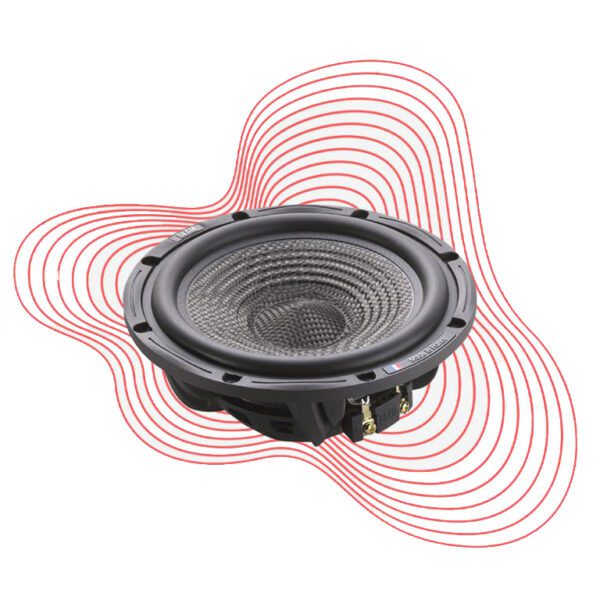

• WS 6.45 HIGH-FIDELITY WOOFER
  6.5” (165 mm) woofer
  Max power 120 W/ Nominal 60 W
  Frequency response 60 Hz – 7 kHz
  Sensitivity 94.3 dB – Impedance 2 Ω
  Installation depth 63 mm

Cast aluminum bowl – Ultra rigid carbon fiber diaphragm – IIR perimeter suspension – Long life spider “conex” – 34mm coil on fiberglass backing – High end neodymium motor – Gold plated terminal block.

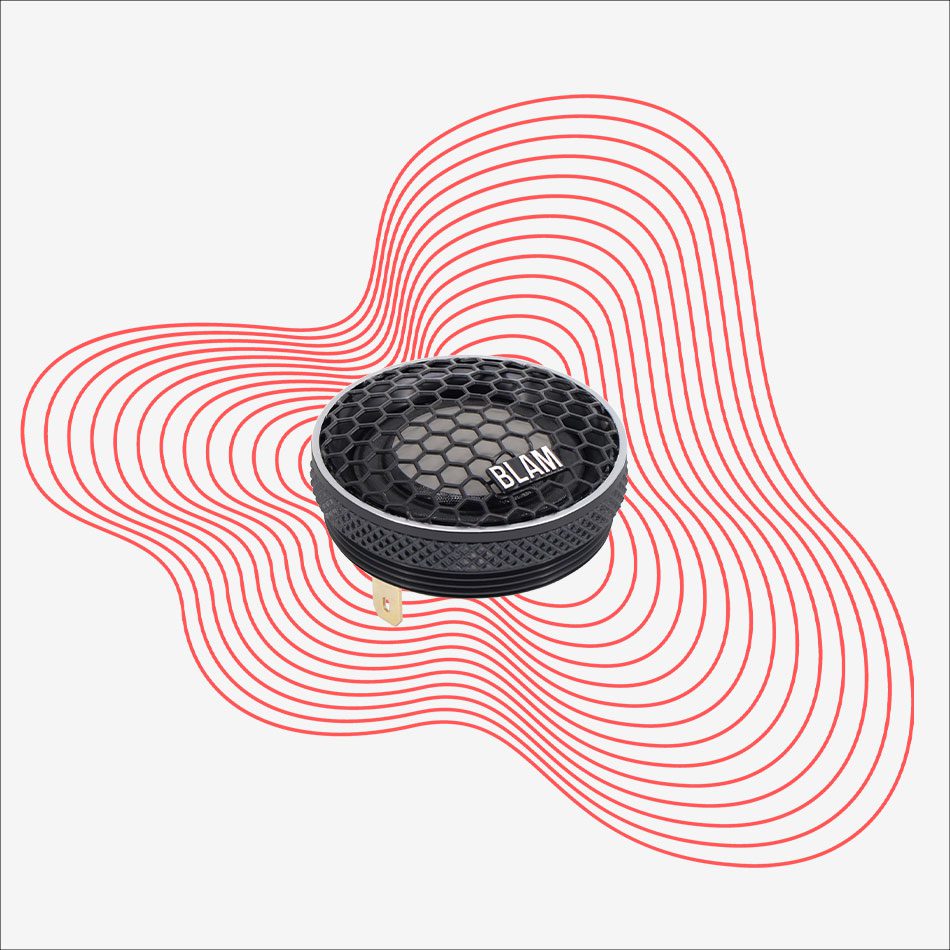

• TS 20 HR HIGH-RESOLUTION TWEETER
  20mm (3/4”) soft-dome diaphragm
  Maximum power 100 W / Nominal power 15 W
  Frequency response 2.5 kHz – 43kHz
  Sensitivity 88.3 dB – Impedance 5 Ω
  Mounting depth 12.5 mm

Compact mounting dimensions – High efficiency magnet (N38H neodymium) – Ferrofluid for high power handling – Inclined mounting bracket included

• BFT 01 HIGH-QUALITY FILTER
  12 dB/octave high-pass filter
  Adjustable tweeter level +3 dB, 0 dB or -3 dB
  Crossover frequency 4.5 kHz

• BFW 01 HIGH-QUALITY FILTER
  Low-pass filter 6 dB/octave
  Crossover frequency 3.5 kHz

WS 6.45 DATA SHEET

1 file(s) 331.34 KB

Download
