FRS 3N50+ full range speaker

FRS 3N50+ full range speaker

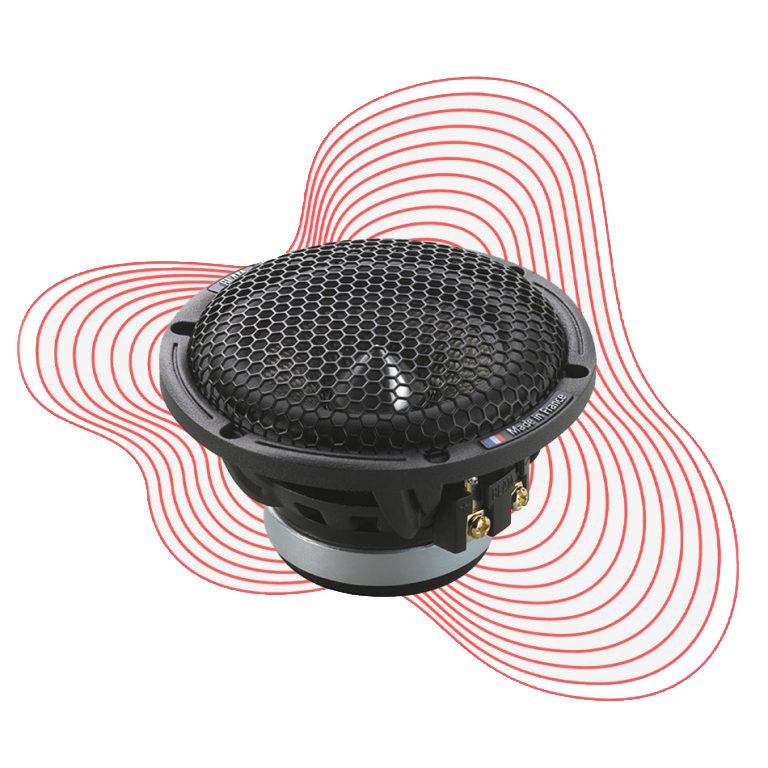

The 3″ (80 mm) full-range driver offers a nominal power of 25 W and a maximum power of 100 W, with a frequency response of 200 Hz to 30 kHz and a sensitivity of 91 dB. It has an impedance of 3 Ω and a mounting depth of 44.5 mm. Designed with a die-cast aluminium basket, a rigid carbon fibre cone, and a peripheral butyl suspension, it guarantees a long service life thanks to its “conex” spider. The 50 mm Ø neodymium magnet and the Faraday ring limit eddy currents for optimal performance. Compatible with the FRS3N50+, it is available in two finishes: light grey and matt black, and can be mounted in a sealed solid aluminium enclosure.

Contact us

FULL RANGE SPEAKER



Technical specification

3” (80 mm) full-range loudspeaker
Maximum power 100 W / nominal 25 W
Frequency response 200 Hz – 30 kHz
Sensitivity 91 dB – Impedance 3 Ω
Installation depth 44.5 mm



Composition

Die cast aluminium basket – Ultra rigid carbon fiber membrane – Peripheral butyl surround – Long life “conex” spider – 20 mm voice coil on fiberglass former – Ultra powerful 50 mm Ø neodymium ring magnet (N38H) – Machined aluminium phase plug – Products matched at +/-1 dB.

Copper Faraday ring on the T-yoke to limit the creation of Foucault currents.

OS80 FRS3N50+ compatible
MACHINED SOLID ALUMINUM ENCLOSURE
Available in two colors: light gray and matte black



Icon

FRS 3N50+ DATA SHEET

1 file(s) 211.32 KB
Download

Looking for Blam audio products?
Find our resellers and distributors around the world.

Installers
Distributors

FULL RANGE SPEAKER



Technical specification

3” (80 mm) full-range loudspeaker
Maximum power 100 W / nominal 25 W
Frequency response 200 Hz – 30 kHz
Sensitivity 91 dB – Impedance 3 Ω
Installation depth 44.5 mm



Composition

Die cast aluminium basket – Ultra rigid carbon fiber membrane – Peripheral butyl surround – Long life “conex” spider – 20 mm voice coil on fiberglass former – Ultra powerful 50 mm Ø neodymium ring magnet (N38H) – Machined aluminium phase plug – Products matched at +/-1 dB.

Copper Faraday ring on the T-yoke to limit the creation of Foucault currents.

OS80 FRS3N50+ compatible
MACHINED SOLID ALUMINUM ENCLOSURE
Available in two colors: light gray and matte black



Icon

FRS 3N50+ DATA SHEET

1 file(s) 211.32 KB
Download
GAMME

Signature
TYPE

1 way
TAILLE

80mm (3")
