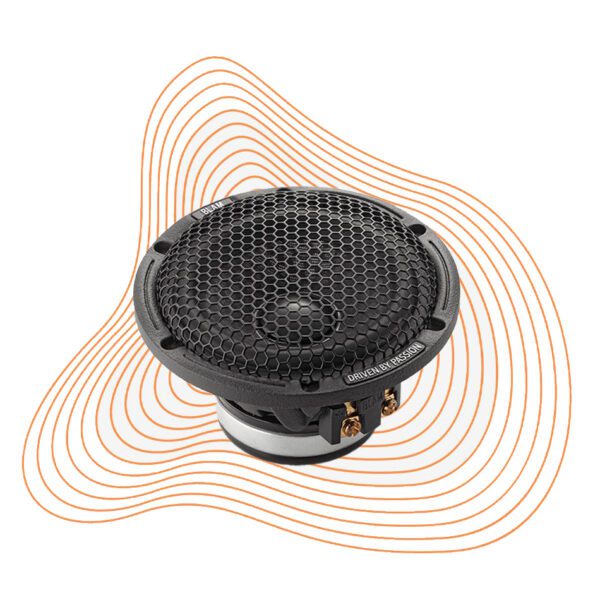

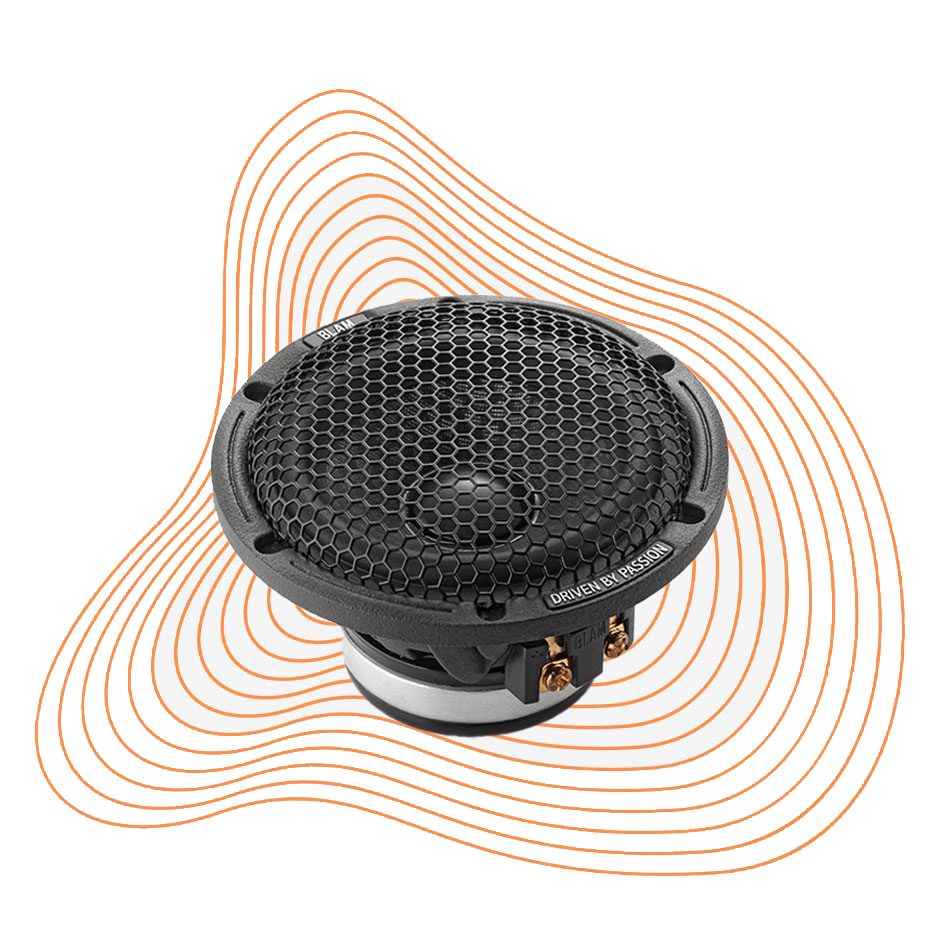

80 MM (3”) FULL RANGE SPEAKER
Technical specification
With a very linear frequency response that extends into the high end, the LFR80 reproduces music with incredible resolution that will make you want to rediscover all your favorite songs.
This kit includes two 80 mm (3″) full-range speakers.
80 mm full-range speaker
Max Power 100 W – Nominal Power 25 W*.
Frequency response 150 Hz – 37 kHz
Sensitivity 91 dB – Impedance 3 Ω
*Depends on the cutoff frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave
Composition
Max Power 100 W – Nominal Power 25 W*.
Frequency response 150 Hz – 37 kHz
Sensitivity 91 dB – Impedance 3 Ω
Installation depth 45 mm (1.8″)
Molded aluminum basket – Fiberglass and epoxy resin composite membrane – Peripheral butyl surround – Long life spider “Conex” – 20 mm voice coil on TIL former – 50 mm x 10 mm neodymium motor
Optimized to operate in a sealed volume of 0.3 L to 0.5 L
Recommended minimum cut-off frequency 250 Hz 12 dB/octave
Supplied accessories:
Mounting screws
Protection grill
User manual
OS80 compatible with the LFR80
MACHINED SOLID ALUMINUM SEALED ENCLOSURE
Available in two colors: light grey and mat black
Looking for Blam audio products?
Find our resellers and distributors
around the world.
80 MM (3”) FULL RANGE SPEAKER
Technical specification
With a very linear frequency response that extends into the high end, the LFR80 reproduces music with incredible resolution that will make you want to rediscover all your favorite songs.
This kit includes two 80 mm (3″) full-range speakers.
80 mm full-range speaker
Max Power 100 W – Nominal Power 25 W*.
Frequency response 150 Hz – 37 kHz
Sensitivity 91 dB – Impedance 3 Ω
*Depends on the cutoff frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave
Composition
Max Power 100 W – Nominal Power 25 W*.
Frequency response 150 Hz – 37 kHz
Sensitivity 91 dB – Impedance 3 Ω
Installation depth 45 mm (1.8″)
Molded aluminum basket – Fiberglass and epoxy resin composite membrane – Peripheral butyl surround – Long life spider “Conex” – 20 mm voice coil on TIL former – 50 mm x 10 mm neodymium motor
Optimized to operate in a sealed volume of 0.3 L to 0.5 L
Recommended minimum cut-off frequency 250 Hz 12 dB/octave
Supplied accessories:
Mounting screws
Protection grill
User manual
OS80 compatible with the LFR80
MACHINED SOLID ALUMINUM SEALED ENCLOSURE
Available in two colors: light grey and mat black
| GAMME | Live |
|---|---|
| TYPE | Full range |
| TAILLE | 80mm |
