80 MM MEDIUM DRIVER
Technical specification
With a very linear frequency response and extended high frequency range, the LM80 reproduces music with an incredible resolution that will make you want to rediscover all your favorite songs.
This kit includes two 80 mm (3″) medium drivers.

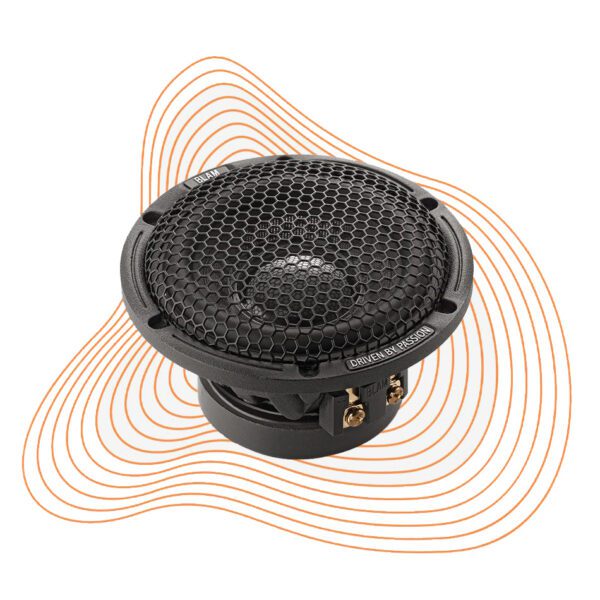

80 mm (3”) medium driver
Max Power 100 W – Nominal Power 25 W*.
Frequency response 100 Hz – 25 kHz
Sensitivity 87.6 dB – Impedance 3 Ω
*Depends on the cutoff frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave
Composition
Max Power 100 W – Nominal Power 25 W*.
Frequency response 100 Hz – 25 kHz
Sensitivity 87.6 dB – Impedance 3 Ω
Mounting depth 45,5 mm (1.8″)
Cast aluminium basket – Fiberglass and epoxy resin composite membrane – Butyl perimeter surround – “Conex” long life spider – 20 mm voice coil on TIL former – 55 mm x 10 mm ferrite magnet
Optimized to operate in a sealed volume of 2 L to 30 L.
Recommended minimum cut-off frequency 300 Hz 12 dB/octave
Supplied accessories:
Mounting screws
Protection grill
User manual
OS80 compatible with the LM80
MACHINED SOLID ALUMINUM SEALED ENCLOSURE
Available in two colors: light grey and mat black
Looking for Blam audio products?
Find our resellers and distributors
around the world.
80 MM MEDIUM DRIVER
Technical specification
With a very linear frequency response and extended high frequency range, the LM80 reproduces music with an incredible resolution that will make you want to rediscover all your favorite songs.
This kit includes two 80 mm (3″) medium drivers.
80 mm (3”) medium driver
Max Power 100 W – Nominal Power 25 W*.
Frequency response 100 Hz – 25 kHz
Sensitivity 87.6 dB – Impedance 3 Ω
*Depends on the cutoff frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave
Composition
Max Power 100 W – Nominal Power 25 W*.
Frequency response 100 Hz – 25 kHz
Sensitivity 87.6 dB – Impedance 3 Ω
Mounting depth 45,5 mm (1.8″)
Cast aluminium basket – Fiberglass and epoxy resin composite membrane – Butyl perimeter surround – “Conex” long life spider – 20 mm voice coil on TIL former – 55 mm x 10 mm ferrite magnet
Optimized to operate in a sealed volume of 2 L to 30 L.
Recommended minimum cut-off frequency 300 Hz 12 dB/octave
Supplied accessories:
Mounting screws
Protection grill
User manual
OS80 compatible with the LM80
MACHINED SOLID ALUMINUM SEALED ENCLOSURE
Available in two colors: light grey and mat black
