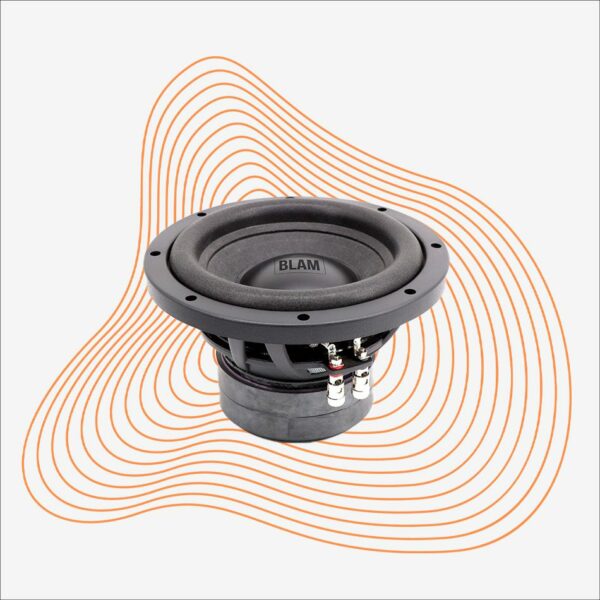

200 MM (8″) DUAL VOICE COIL SUBWOOFER
Technical specification
Power 500 W max / 250 W nominal
Frequency response 45 Hz to 500 Hz
Sensitivity 89 dB
Impedance 2 x 2 Ω
Composition
Aluminum basket
Treated paper membrane
Foam surround
Long life “conex” spider
Dual 50 mm voice coil on aluminum former
120 mm x 20 mm dual magnetic motor
Extended T-yoke
Subwoofer optimized for 10 L to 25 L sealed enclosure
Accessories included:
User manual
Recommended sealed enclosure:
| Internal Volume Vb | F -3 dB | Boost |
| 10 L | 47 Hz | 1.0 dB at 84 Hz |
| 15 L | 45 Hz | 0.6 dB at 83 Hz |
| 25 L | 44 Hz | 0.3 dB at 87 Hz |
Looking for Blam audio products? Find our resellers and distributors around the world.
200 MM (8″) DUAL VOICE COIL SUBWOOFER
Technical specification
Power 500 W max / 250 W nominal
Frequency response 45 Hz to 500 Hz
Sensitivity 89 dB
Impedance 2 x 2 Ω
Composition
Aluminum basket
Treated paper membrane
Foam surround
Long life “conex” spider
Dual 50 mm voice coil on aluminum former
120 mm x 20 mm dual magnetic motor
Extended T-yoke
Subwoofer optimized for 10 L to 25 L sealed enclosure
Accessories included:
User manual
Recommended sealed enclosure:
| Internal Volume Vb | F -3 dB | Boost |
| 10 L | 47 Hz | 1.0 dB at 84 Hz |
| 15 L | 45 Hz | 0.6 dB at 83 Hz |
| 25 L | 44 Hz | 0.3 dB at 87 Hz |
| GAMME | Live |
|---|---|
| TYPE | Without box |
| TAILLE | 200mm |
