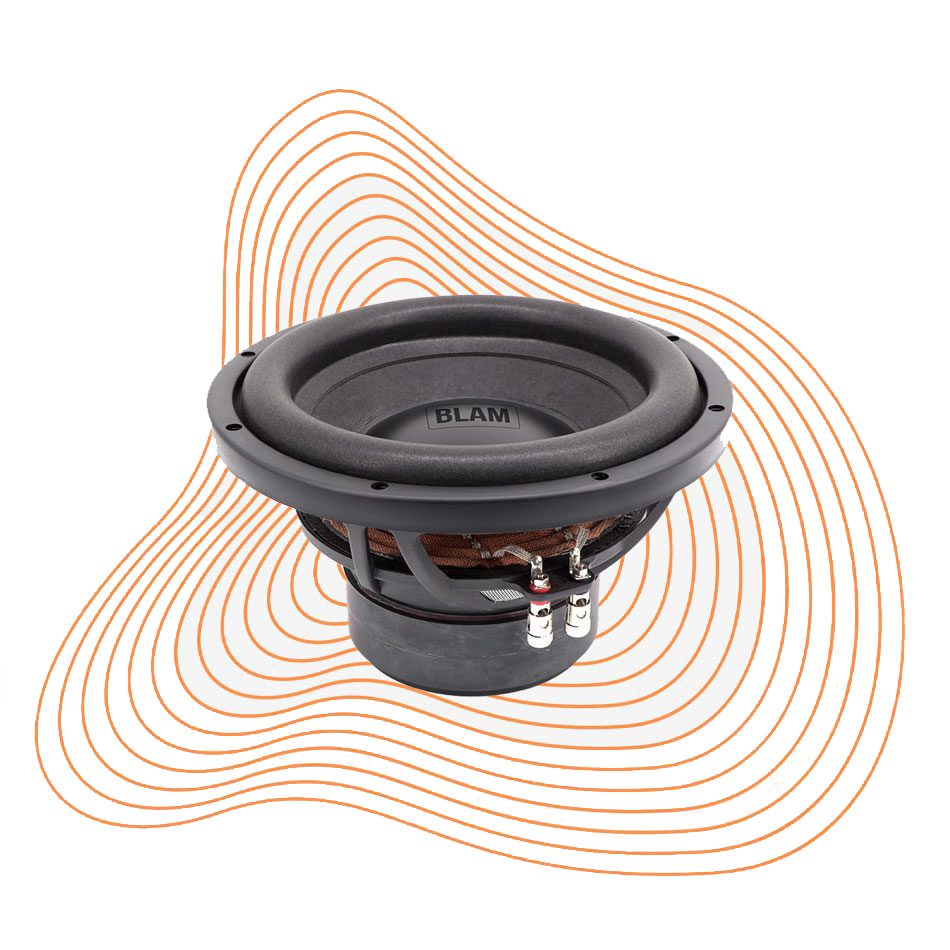

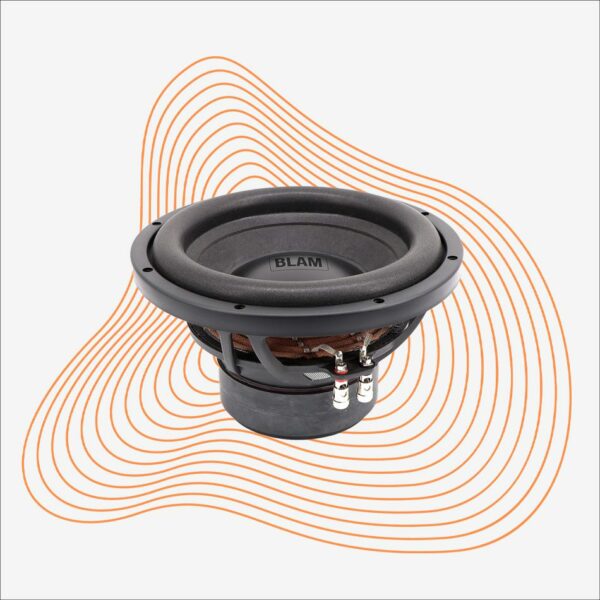

250 MM (10″) DUAL VOICE COIL SUBWOOFER
Technical specification
Power 600 W max / 300 W nominal
Frequency response 45 Hz to 500 Hz
Sensitivity 92.3 dB
Impedance 2 x 2 Ω
Composition
Aluminum basket
Treated paper membrane
Foam suspension
Long life “conex” spider
60 mm dual voice coil on aluminum former
Dual 140 mm x 20 mm magnetic motor
Extended T-yoke
Subwoofer optimized for 15 L to 45 L sealed enclosure
Accessories included:
User manual
Recommended sealed enclosure:
| Internal Volume Vb | F -3 dB | Boost |
| 15 L | 47 Hz | 1.0 dB at 77 Hz |
| 25 L | 45 Hz | 0.4 dB at 81 Hz |
| 45 L | 44 Hz | 0.1 dB at 130 Hz |
Looking for Blam audio products?
Find our resellers and distributors
around the world.
250 MM (10″) DUAL VOICE COIL SUBWOOFER
Technical specification
Power 600 W max / 300 W nominal
Frequency response 45 Hz to 500 Hz
Sensitivity 92.3 dB
Impedance 2 x 2 Ω
Composition
Aluminum basket
Treated paper membrane
Foam suspension
Long life “conex” spider
60 mm dual voice coil on aluminum former
Dual 140 mm x 20 mm magnetic motor
Extended T-yoke
Subwoofer optimized for 15 L to 45 L sealed enclosure
Accessories included:
User manual
Recommended sealed enclosure:
| Internal Volume Vb | F -3 dB | Boost |
| 15 L | 47 Hz | 1.0 dB at 77 Hz |
| 25 L | 45 Hz | 0.4 dB at 81 Hz |
| 45 L | 44 Hz | 0.1 dB at 130 Hz |
| GAMME | Live |
|---|---|
| TYPE | Without box |
| TAILLE | 250mm |
