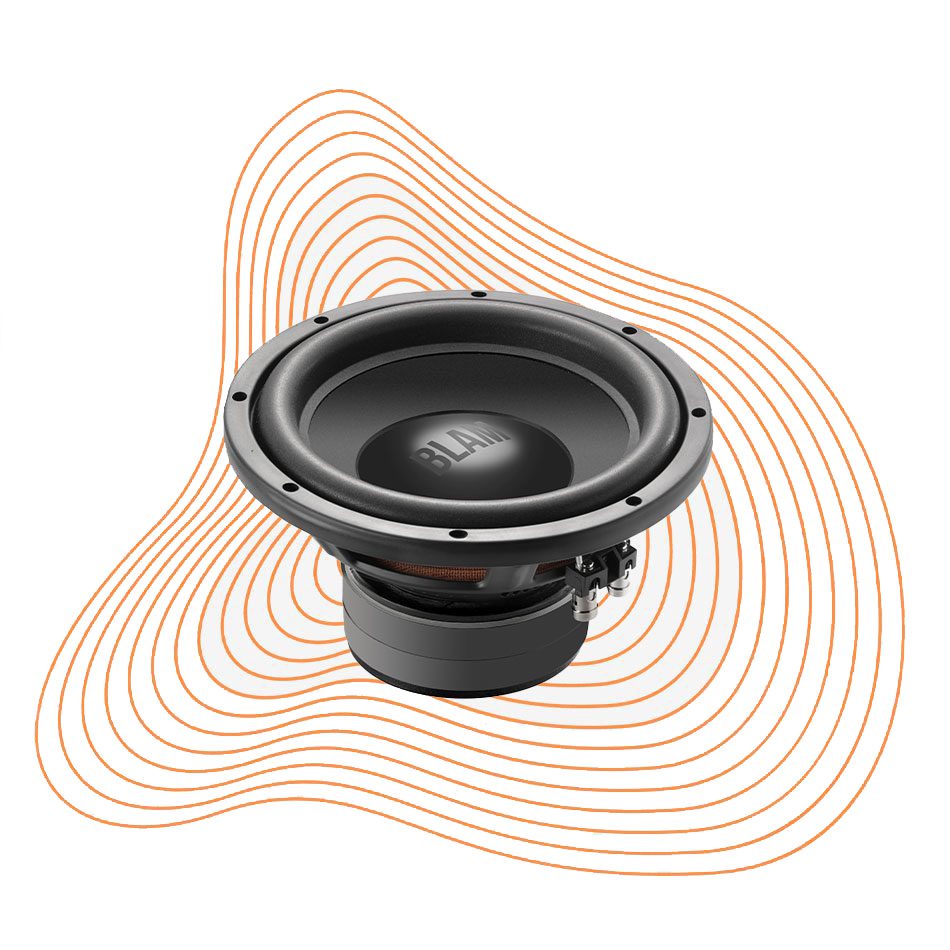

Subwoofer LSP25

The 250 mm subwoofer offers a maximum power of 600 W and a nominal power of 300 W, with a frequency response ranging from 30 Hz to 500 Hz and a sensitivity of 92.6 dB. It has an impedance of 2 x 2 Ω. Built with a steel basket, an injected polypropylene membrane and a large peripheral foam suspension, it offers a robust sound performance. Its dual 60 mm voice coil and 140 mm x 20 mm magnetic motors ensure optimal bass reproduction. This subwoofer is optimized for sealed enclosures from 15 to 45 liters. The supplied accessories include fixing screws and an instruction manual. The recommended sealed enclosures offer different results: with 15 L, the cut-off frequency is 42 Hz with a slight boost at 88 Hz, while with 25 L or 45 L, there is no boost.

Subwoofer 250 mm



Technical details

Max power 600 W / nominal 300 W
Frequency response 30 Hz to 500 Hz
Sensitivity 92.6 dB
Impedance 2 x 2 Ω



Composition

Steel salad bowl
Injected polypropylene membrane
Large peripheral foam suspension
Long-life spider “conex”
Dual 60 mm voice coil on aluminum support
Dual magnetic motor 140 mm x 20 mm
Flared pole piece
Subwoofer optimized for closed enclosures from 15L to 45L



Supplied accessories :
Fixing screws
Instructions for use



Recommended sealed enclosure:

Volume Interne Vb F -3 dB Boost
15 L 42 Hz 0,4 dB à 88 Hz
25 L 41 Hz No boost
45 L 41 Hz No boost



Looking for Blam audio products?
Find our resellers and distributors around the world.

Subwoofer 250 mm



Technical details

Max power 600 W / nominal 300 W
Frequency response 30 Hz to 500 Hz
Sensitivity 92.6 dB
Impedance 2 x 2 Ω



Composition

Steel salad bowl
Injected polypropylene membrane
Large peripheral foam suspension
Long-life spider “conex”
Dual 60 mm voice coil on aluminum support
Dual magnetic motor 140 mm x 20 mm
Flared pole piece
Subwoofer optimized for closed enclosures from 15L to 45L



Supplied accessories :
Fixing screws
Instructions for use



Recommended sealed enclosure:

Volume Interne Vb F -3 dB Boost
15 L 42 Hz 0,4 dB à 88 Hz
25 L 41 Hz No boost
45 L 41 Hz No boost



GAMME

Live

TYPE

Without box

TAILLE

250mm (10")

PRODUIT

Subwoofer
