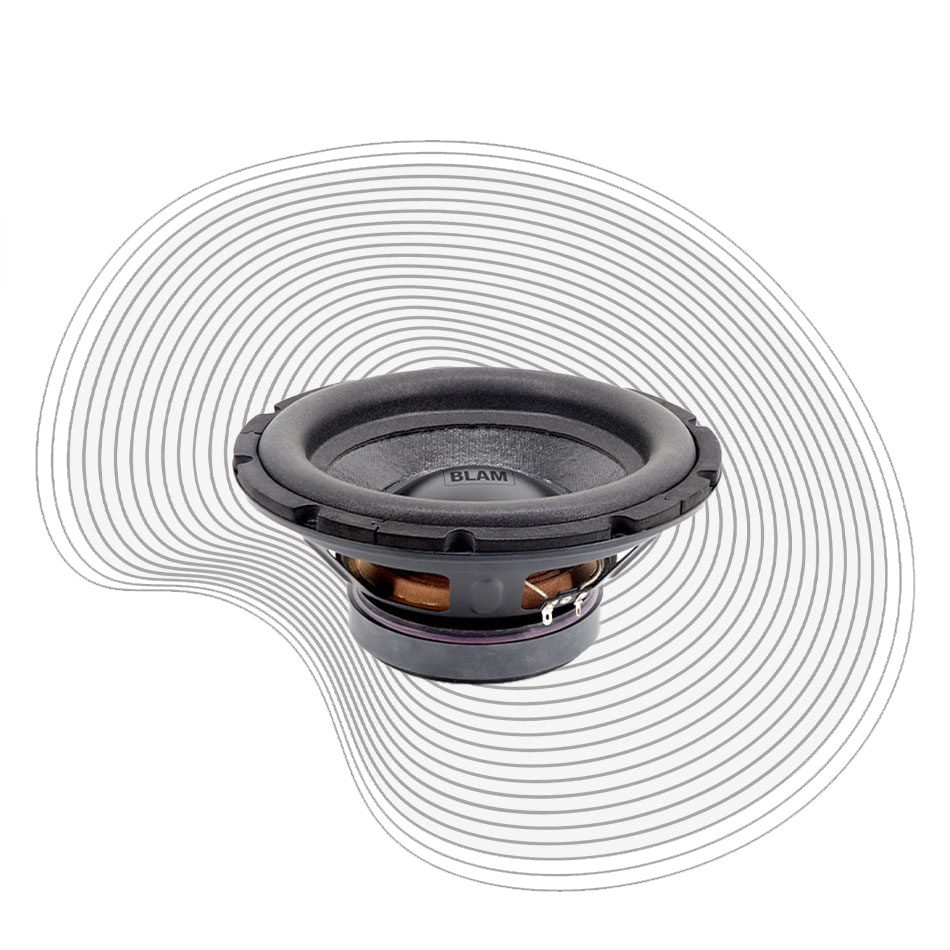

250 MM (10″) DUAL VOICE COIL SUBWOOFER R10dB
Technical details
Power 500 W max / 250 W nominal
Frequency response 39 Hz to 500 Hz
Sensitivity 90.6 dB
Impedance 2 x 2 Ω
Composition
Steel bowl
Treated paper membrane
Foam suspension
Long-life spider “conex”
Dual 50 mm voice coil on aluminium support
Magnetic motor 140 mm x 20 mm
Flared pole piece
Subwoofer optimised for sealed speakers from 10 L to 20 L
Can be used as a bass reflex box for high SPL
Supplied accessories :
Operating instructions
Sealed enclosure recommended
| Volume Interne Vb | F -3 dB | Boost |
| 10 L | 50 Hz | 4.7 dB à 76 Hz |
| 20 L | 42 Hz | 3.1 dB à 66 Hz |
Bass reflex cabinet
| Volume interne | Diamètre interne de l’évent |
Longueur de l’évent | Fréquence de coupure | Boost |
| 30 L | 10 cm | 30 cm | 39 Hz | 8.5 dB à 63 Hz |
Looking for Blam audio products?
Find our resellers and distributors
around the world.
250 MM (10″) DUAL VOICE COIL SUBWOOFER R10dB
Technical details
Power 500 W max / 250 W nominal
Frequency response 39 Hz to 500 Hz
Sensitivity 90.6 dB
Impedance 2 x 2 Ω
Composition
Steel bowl
Treated paper membrane
Foam suspension
Long-life spider “conex”
Dual 50 mm voice coil on aluminium support
Magnetic motor 140 mm x 20 mm
Flared pole piece
Subwoofer optimised for sealed speakers from 10 L to 20 L
Can be used as a bass reflex box for high SPL
Supplied accessories :
Operating instructions
Sealed enclosure recommended
| Volume Interne Vb | F -3 dB | Boost |
| 10 L | 50 Hz | 4.7 dB à 76 Hz |
| 20 L | 42 Hz | 3.1 dB à 66 Hz |
Bass reflex cabinet
| Volume interne | Diamètre interne de l’évent |
Longueur de l’évent | Fréquence de coupure | Boost |
| 30 L | 10 cm | 30 cm | 39 Hz | 8.5 dB à 63 Hz |
| GAMME | Relax |
|---|---|
| TYPE | Without box |
| TAILLE | 250mm (10") |
| PRODUIT | Subwoofer |
