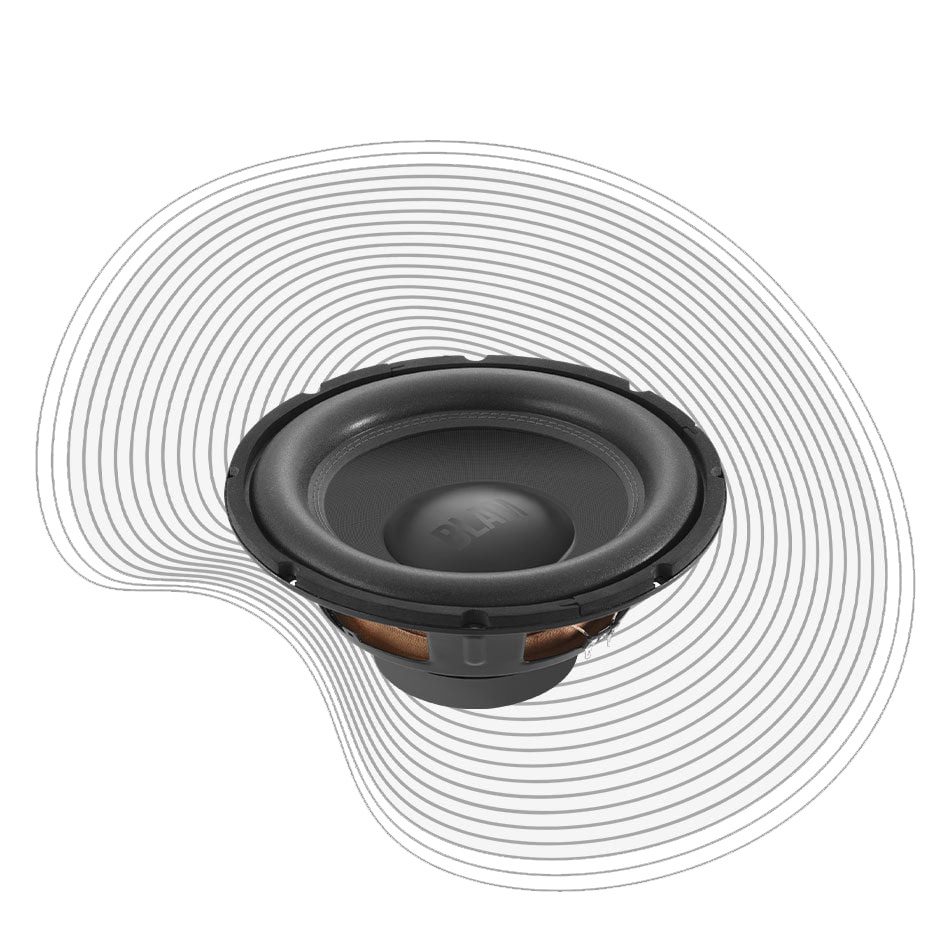

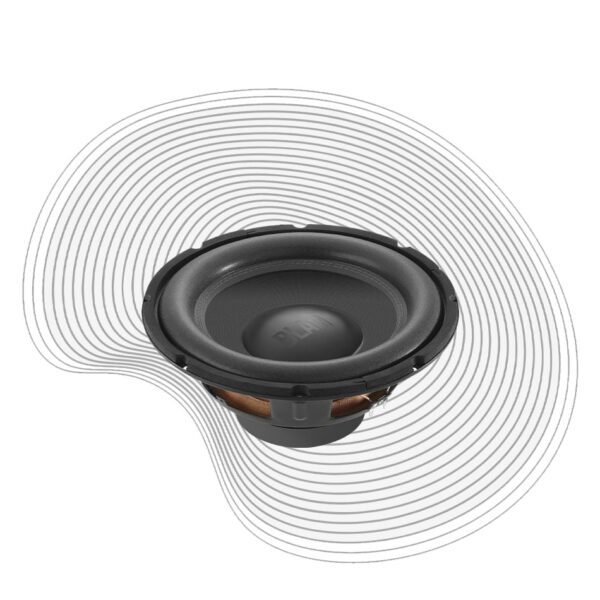

SUBWOOFER 300 MM (12”)
Technical details
Power 500 W max / 250 W nominal
Frequency response 30 Hz to 500 Hz
Sensitivity 94 dB
Impedance 2 Ω
Composition
Steel bowl
Reinforced cellulose fiber membrane
Large peripheral foam suspension
Cotton spider
50 mm coil on aluminum support
134 mm x 23 mm magnetic motor
Flared pole piece
Subwoofer optimized for closed enclosures from 20L to 40L
Supplied accessories :
Fixing screws
Instructions for use
Recommended sealed enclosure:
| Internal Volume Vb | F -3 dB | Boost |
| 20 L | 54 Hz | 1.3 dB at 92 Hz |
| 30 L | 51 Hz | 0.7 dB at 93 Hz |
| 50 L | 49 Hz | 0.2 dB at 114 Hz |
Recommended bass reflex box:
| Internal Volume Vb | Port Internal Ø | Port Internal lenght | F -3 dB | Boost |
| 30 L | 10 cm | 30 cm | 41 Hz | 4.4 dB at 70 Hz |
| 50 L | 10 cm | 26 cm | 32 Hz | 2.7 dB at 60 Hz |
Looking for Blam audio products?
Find our resellers and distributors
around the world.
SUBWOOFER 300 MM (12”)
Technical details
Power 500 W max / 250 W nominal
Frequency response 30 Hz to 500 Hz
Sensitivity 94 dB
Impedance 2 Ω
Composition
Steel bowl
Reinforced cellulose fiber membrane
Large peripheral foam suspension
Cotton spider
50 mm coil on aluminum support
134 mm x 23 mm magnetic motor
Flared pole piece
Subwoofer optimized for closed enclosures from 20L to 40L
Supplied accessories :
Fixing screws
Instructions for use
Recommended sealed enclosure:
| Internal Volume Vb | F -3 dB | Boost |
| 20 L | 54 Hz | 1.3 dB at 92 Hz |
| 30 L | 51 Hz | 0.7 dB at 93 Hz |
| 50 L | 49 Hz | 0.2 dB at 114 Hz |
Recommended bass reflex box:
| Internal Volume Vb | Port Internal Ø | Port Internal lenght | F -3 dB | Boost |
| 30 L | 10 cm | 30 cm | 41 Hz | 4.4 dB at 70 Hz |
| 50 L | 10 cm | 26 cm | 32 Hz | 2.7 dB at 60 Hz |
| GAMME | Relax |
|---|---|
| TYPE | Without box |
| TAILLE | 300mm (12") |
| PRODUIT | Subwoofer |
