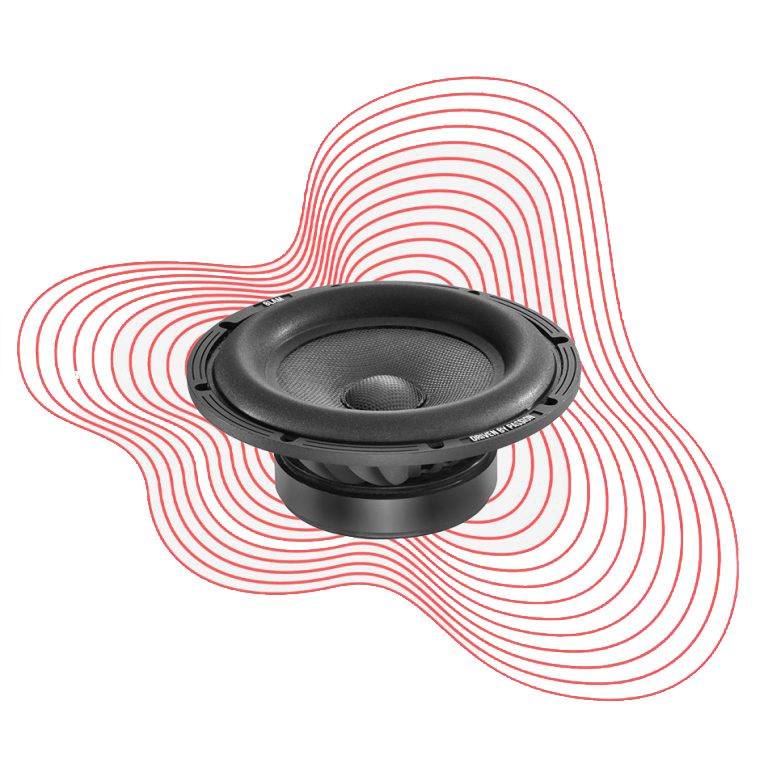

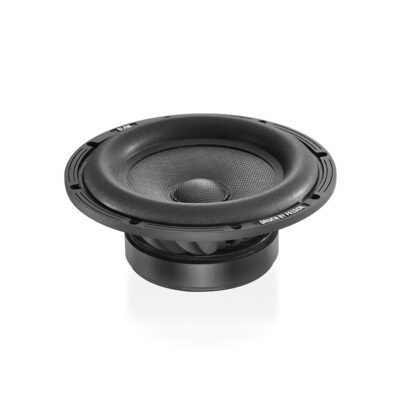

Subwoofer WS8.120

Subwoofer WS8.120

The 200 mm WS8.120 subwoofer is designed to deliver deep and powerful bass with a frequency response of 30 Hz to 500 Hz and a sensitivity of 89 dB. It has a maximum power of 300 W and a nominal power of 150 W, with an impedance of 2 Ω. Its installation depth is 75 mm. This model is equipped with a die-cast aluminum basket, an ultra-rigid carbon fiber cone, a peripheral NBR suspension and an oversized magnetic motor. It is optimized for sealed or bass-reflex enclosures, with specific recommendations for an internal volume of 10 to 20 L.

Contact us

SUBWOOFER MID BASS 200 MM WS8.120



Technical specification

– 200 mm subwoofer
– Maximum power 300 W / Nominal power 150 W
– Frequency response 30 Hz – 500 Hz
– Sensitivity 89 dB – Impedance 2 Ω
– Installation depth 75 mm



Composition

Die-cast aluminium basket – Ultra-rigid carbon fiber membrane reinforced with fiberglass– NBR perimeter surround – Long-life “conex” spider – Voice coil 38 mm on fiberglass support – Oversized magnetic motor 120 × 20 mm – Gold-plated terminal block.

Optimized for sealed and bass-reflex enclosure from 10 L to 20 L.

Recommended sealed enclosure:

Volume Interne Vb F -3 dB Boost
10 L 59 Hz 0,6 dB à 114 Hz
20 L 56 Hz 0,1 dB à 153 Hz



Recommended bass-reflex enclosure:

Volume Interne Vb Diamètre de l’évent Longueur de l’évent F-3 dB Boost
10 L 6 cm 20 cm 49 Hz 6,2 dB à 79 Hz
20L 6 cm 20 cm 35 Hz 2,7 dB à 60 Hz





Icon

WS8.120 DATA SHEET

1 file(s) 229.71 KB
Download
Icon

WS8.120 USERMANUAL

1 file(s) 365.00 KB
Download

Looking for Blam audio products?
Find our resellers and distributors around the world.

Installers
Distributors

SUBWOOFER MID BASS 200 MM WS8.120



Technical specification

– 200 mm subwoofer
– Maximum power 300 W / Nominal power 150 W
– Frequency response 30 Hz – 500 Hz
– Sensitivity 89 dB – Impedance 2 Ω
– Installation depth 75 mm



Composition

Die-cast aluminium basket – Ultra-rigid carbon fiber membrane reinforced with fiberglass– NBR perimeter surround – Long-life “conex” spider – Voice coil 38 mm on fiberglass support – Oversized magnetic motor 120 × 20 mm – Gold-plated terminal block.

Optimized for sealed and bass-reflex enclosure from 10 L to 20 L.

Recommended sealed enclosure:

Volume Interne Vb F -3 dB Boost
10 L 59 Hz 0,6 dB à 114 Hz
20 L 56 Hz 0,1 dB à 153 Hz



Recommended bass-reflex enclosure:

Volume Interne Vb Diamètre de l’évent Longueur de l’évent F-3 dB Boost
10 L 6 cm 20 cm 49 Hz 6,2 dB à 79 Hz
20L 6 cm 20 cm 35 Hz 2,7 dB à 60 Hz





Icon

WS8.120 DATA SHEET

1 file(s) 229.71 KB
Download
Icon

WS8.120 USERMANUAL

1 file(s) 365.00 KB
Download
GAMME

Signature
TYPE

Without box
TAILLE

200mm (8")
